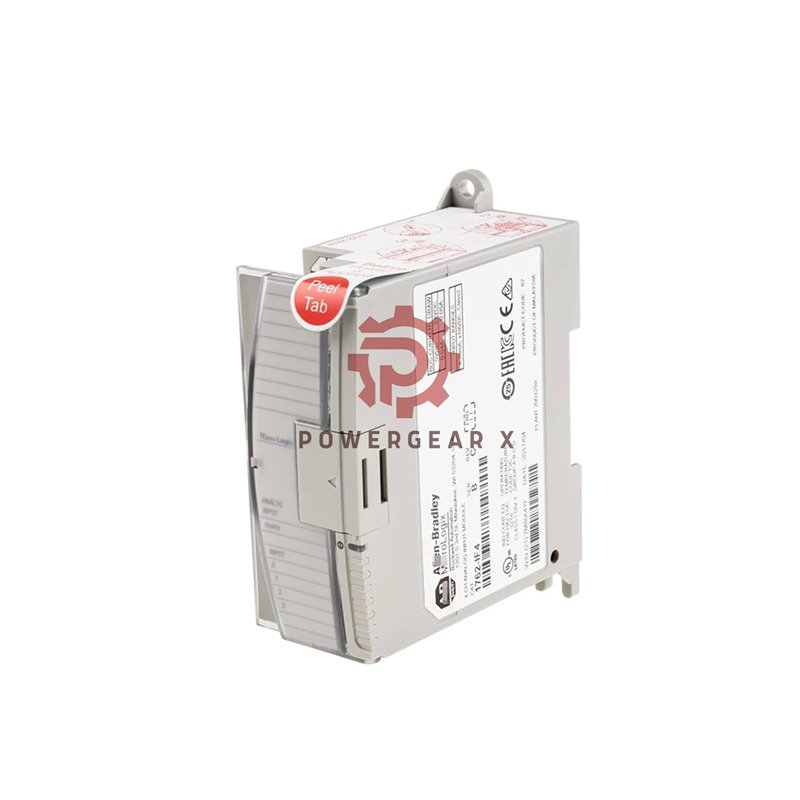

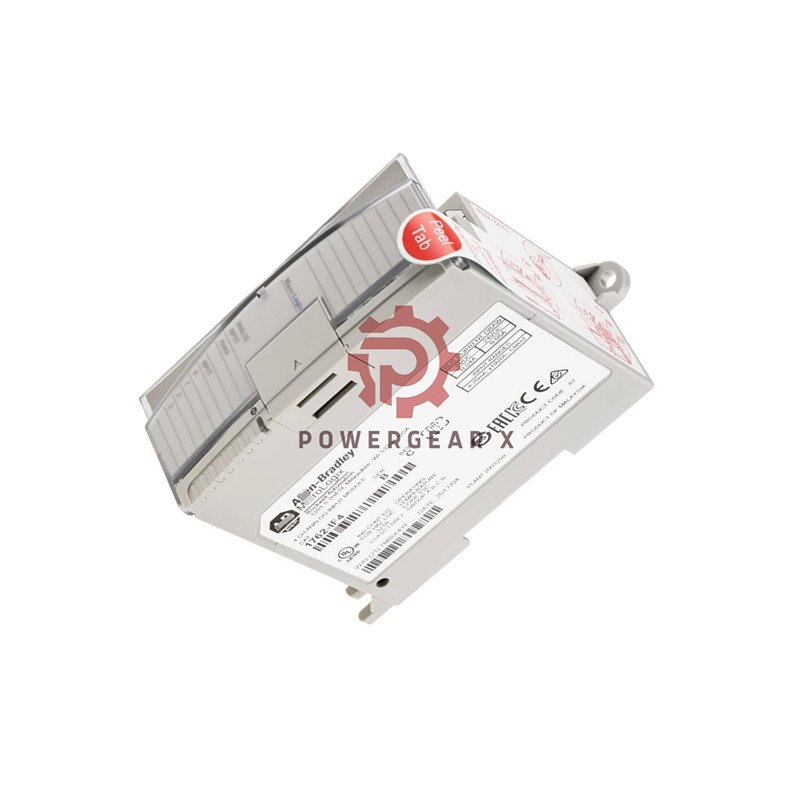

Allen-Bradley 1762-IF4 MicroLogix Analog Input Module

Allen-Bradley 1762-IF4 MicroLogix Analog Input Module

The Allen-Bradley 1762-IF4 adds four analog input channels to MicroLogix controllers. This compact module handles both voltage and current signals. It provides flexible expansion for your control system.

Technical Specifications

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Series: MicroLogix 1200
• Model Number: 1762-IF4
• Input Channels: 4 differential (bipolar)
• Voltage Range: ±10.5V DC
• Current Range: ±21 mA
• Resolution: 15-bit
• Accuracy: ±0.12% repeatability
• Converter Type: Delta-Sigma
• Power Supply: 5-24V DC via bus interface
• Operating Temperature: 0-60°C
• Enclosure Rating: IP20
• Dimensions: 90 x 87 x 40.4 mm
• Weight: 235 grams

Compatible Controllers

• MicroLogix 1100 series controllers
• MicroLogix 1200 series controllers
• MicroLogix 1400 series controllers
• Supports up to 7 expansion modules

Frequently Asked Questions

• How many modules can I connect to my MicroLogix?
  MicroLogix 1100: 4 modules, 1200: 6 modules, 1400: 7 modules.
• What types of signals does this module accept?
  It accepts both voltage (±10V) and current (4-20mA) signals.
• How do I configure the input types?
  Use the DIP switches on the module for each channel.
• Is shielded wiring necessary?
  Yes, Belden 8761 or equivalent shielded cable is recommended.
• Can I use this module in hazardous locations?
  No, it is rated for IP20 non-hazardous locations only.
