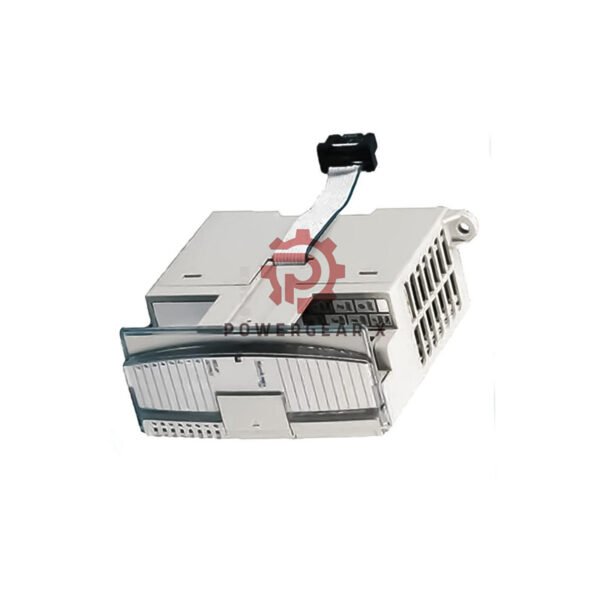

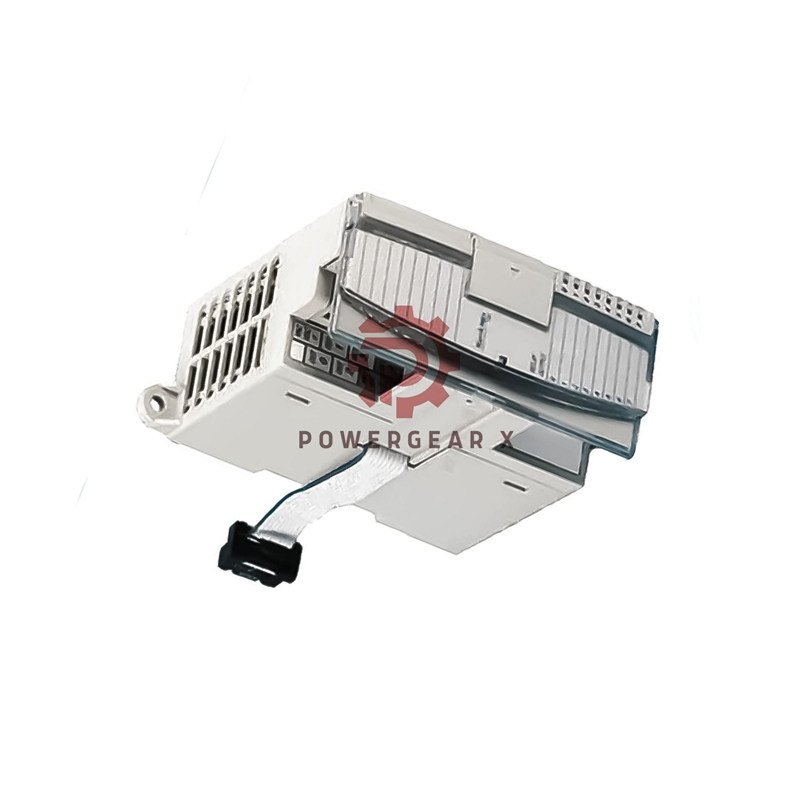

Allen-Bradley 1762-IF2OF2 Analog Combination I/O Module
The Allen-Bradley 1762-IF2OF2 expands your MicroLogix system with versatile analog capabilities. This compact module provides both input and output functionality in one unit. It offers excellent flexibility for various industrial automation applications.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1762-IF2OF2
- Compatible Controllers: MicroLogix 1100, 1200, 1400
- Module Type: Analog Input/Output Combination
- Input Channels: 2 differential (voltage/current)
- Output Channels: 2 single-ended (voltage/current)
- Input Ranges: 0-10V DC, 4-20mA
- Output Ranges: 0-10V DC, 4-20mA
- Resolution: 12-bit
- Accuracy: ±0.3% @ 25°C (77°F)
- Update Time: 2.5 ms per channel
- Common Mode Rejection: 55 dB @ 50-60 Hz
- Input Impedance: 200 kΩ (voltage), 250 Ω (current)
- Power Consumption: 40 mA @ 5V DC, 105 mA @ 24V DC
- Operating Temperature: -20°C to 65°C (-4°F to 149°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Dimensions: 90 x 87 x 40 mm (3.54 x 3.43 x 1.58 in)
- Weight: 240 g (0.53 lb)
Packaging & Shipping
- Package Includes:
- One 1762-IF2OF2 Analog I/O Module
- Connection ribbon cable
- Installation documentation
- Worldwide shipping via FedEx, UPS, and DHL
- Express delivery options available for urgent requirements
Frequently Asked Questions
- Which MicroLogix controllers work with this module?
The 1762-IF2OF2 works with MicroLogix 1100, 1200, and 1400 controllers. - Can I use different signal types simultaneously?
Yes, you can configure each channel independently for voltage or current operation. - What software do I need to configure this module?
You need RSLogix 500 software to configure the module parameters and scaling. - Is electrical isolation provided between channels?
The module provides common mode rejection but channels share common reference points. - What is the maximum cable length for analog signals?
For best results, keep analog signal cables under 100 meters (328 feet).
