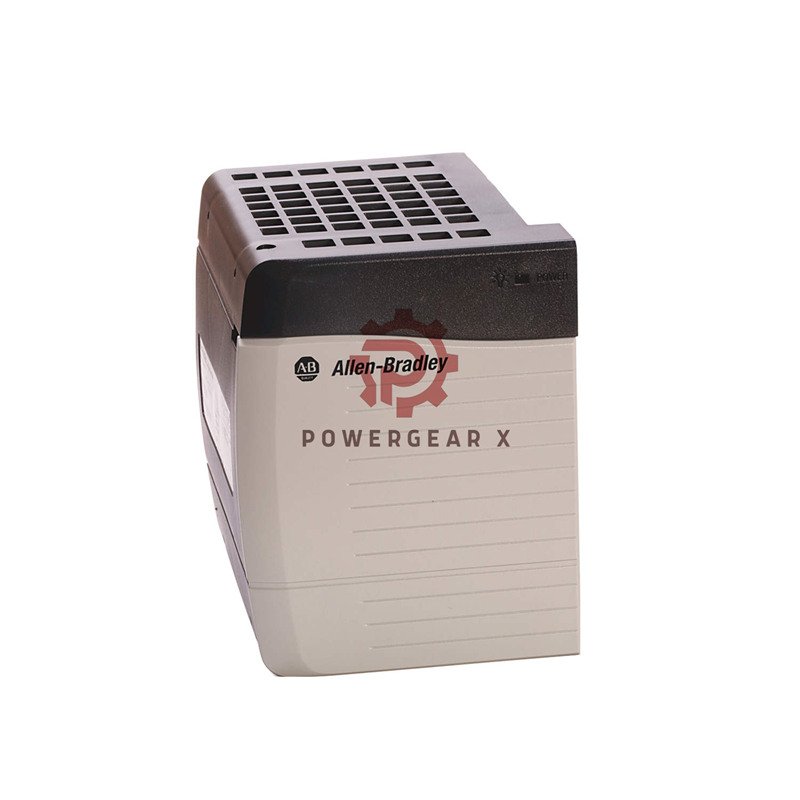

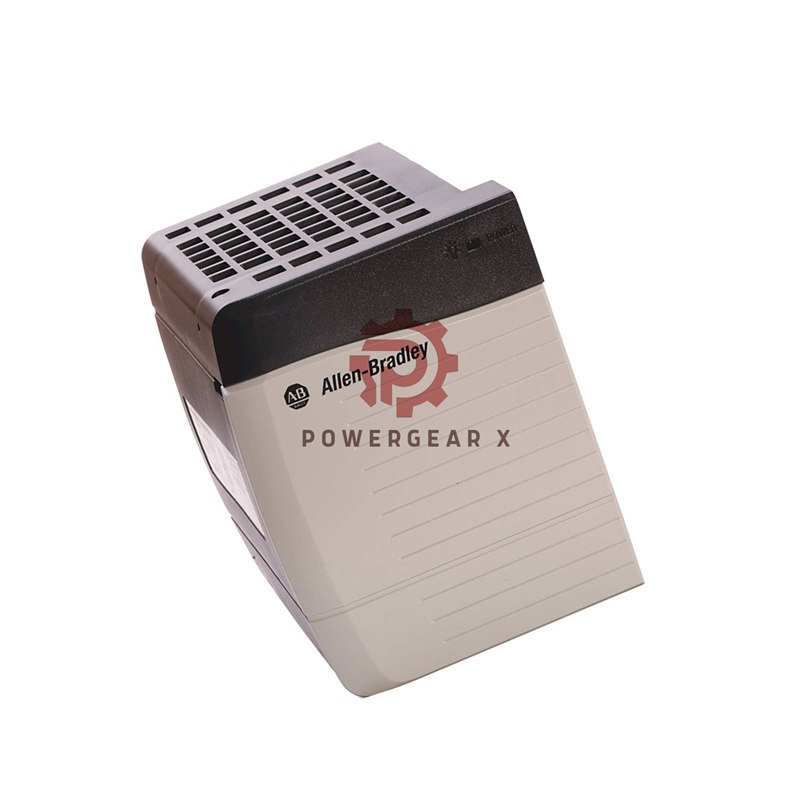

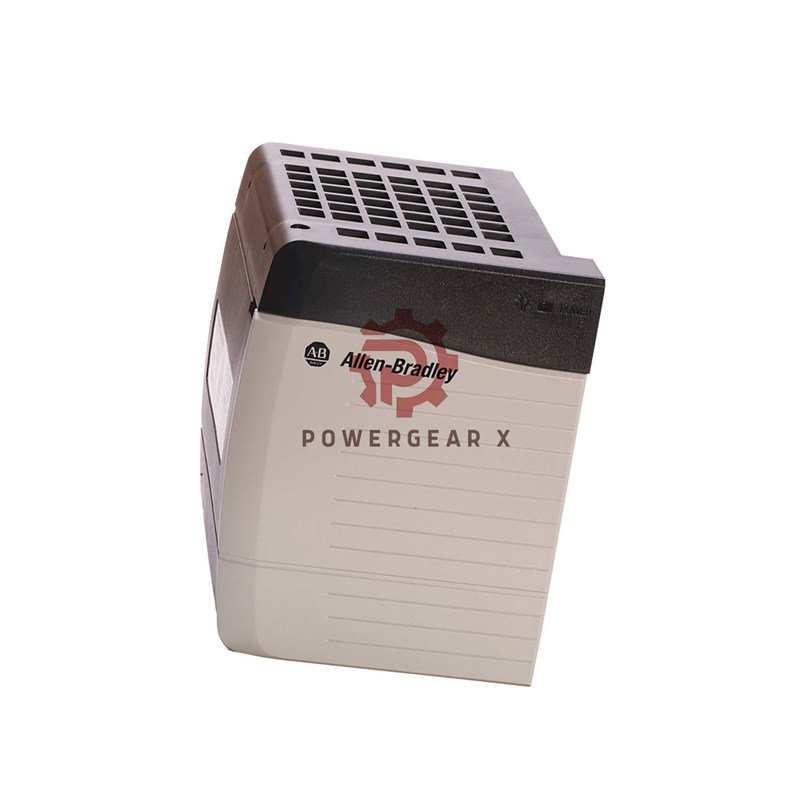

Allen-Bradley 1756-PB72K DC Power Supply Module | 75W

Allen-Bradley 1756-PB72K DC Power Supply | ControlLogix Series

Detailed Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Full Model Number: 1756-PB72K
• Series: ControlLogix
• Type: DC Input Power Supply
• Nominal Input Voltage: 24V DC
• Input Voltage Range: 18 – 32V DC
• Max Input Power: 95 Watts
• Rated Output Power: 75 Watts at 60°C (140°F)
• Output Current:
  • 1.2V DC: 1.5 Amps
  • 3.3V DC: 4 Amps
  • 5.1V DC: 10 Amps
  • 24V DC: 2.8 Amps
• Hold-up Time: 40 ms (at 24V DC)
• Inrush Current: 30 Amps max
• Isolation: 250V AC continuous
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Humidity: 5-95% (non-condensing)
• Vibration Immunity: 5G (10-500 Hz)
• Shock Immunity: 30G (Operating), 50G (Non-Operating)
• EMC Immunity: Surge, RF, EFT/B
• Wire Size: 14 AWG (2.5 mm²) copper
• Torque: 0.8 N-m (7 lb-in)
• Weight: 2.5 lbs (1.1 kg)
• Dimensions: 5.5″ H x 4.4″ W x 5.7″ D

Installation & Compatibility

• Install in the left-side slot of the chassis.
• Works with 1756-A4, A7, A10, A13, A17 chassis (Series A, B, C).
• Use 90°C rated copper wire for connections.
• Ensure input power is within 18-32V DC range.

Shipping & Delivery

• Shipped fast via FedEx, UPS, or DHL.
• Package includes one 1756-PB72K power supply unit.

Frequently Asked Questions

• What is the minimum voltage for the 1756-PB72K?
• It will operate down to 18 Volts DC.
• Can I use this in a Series A chassis?
• Yes, it works with Series A, B, and C.
• Does it have reverse polarity protection?
• No, always check your wiring to avoid damage.
• What happens if the input voltage is too high?
• Do not exceed 32V DC. Overvoltage can damage the unit.
• Is the 75W output rating continuous?
• Yes, it provides 75W continuously at 60°C.
