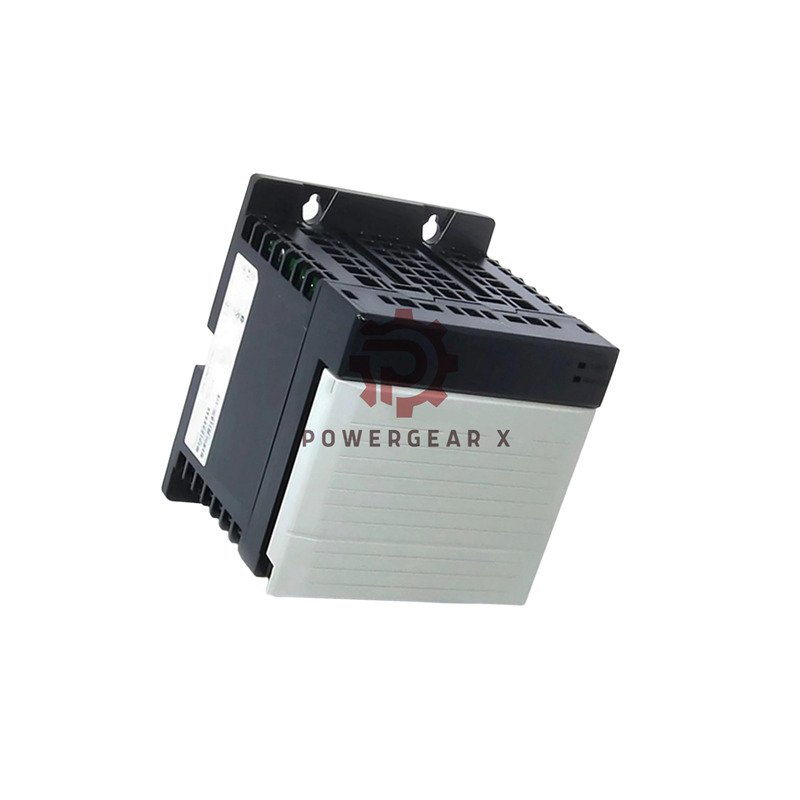

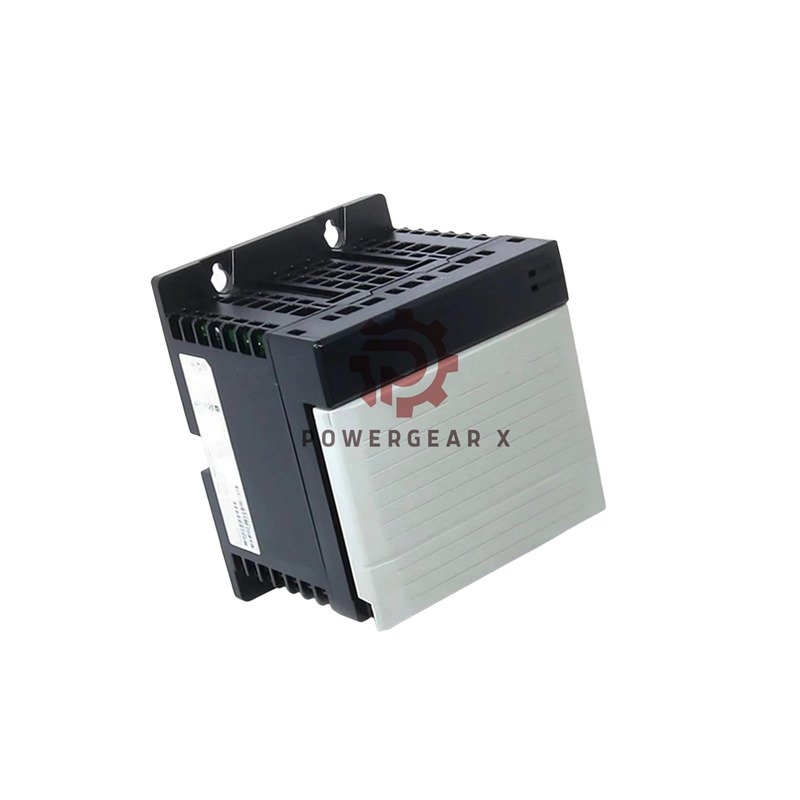

Allen-Bradley 1756-PA75R Power Supply – 85-265VAC

Allen-Bradley 1756-PA75R | Reliable Redundant Power Supply Solution

Full Technical Specifications

• Brand: Allen-Bradley
• Full Model: 1756-PA75R
• Series: ControlLogix
• Type: Redundant AC Power Supply
• Input Voltage: 85-265V AC (Auto-Sensing)
• Input Frequency: 47-63 Hz
• Nominal Input: 120V AC or 240V AC
• Output Power: 75 Watts @ 60°C
• Output Current @ 5.1V DC: 13 Amps
• Output Current @ 24V DC: 2.8 Amps
• Output Current @ 3.3V DC: 4 Amps
• Output Current @ 1.2V DC: 1.5 Amps
• Inrush Current: 20 Amps (Max)
• Hold-Up Time: 2 cycles at 50/60 Hz
• Isolation Voltage: 250V Continuous (Reinforced)
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Weight: 3.2 lbs (1.45 kg)
• Dimensions: 6.9″ x 5.7″ x 5.4″ (17.5 x 14.5 x 13.7 cm)

Compatibility & Installation

• Compatible Chassis: 1756-A4, A7, A10, A13, A17 (Series B)
• Required Cable: 1756-CPR2 (or CPR2D/CPR2U)
• Required Adapter: 1756-PSCA2 (or PSCA2K/PSCA2XT)
• Connect to the chassis adapter module for operation.
• Panel-mounted installation.
• The internal fuse is not user-replaceable.
