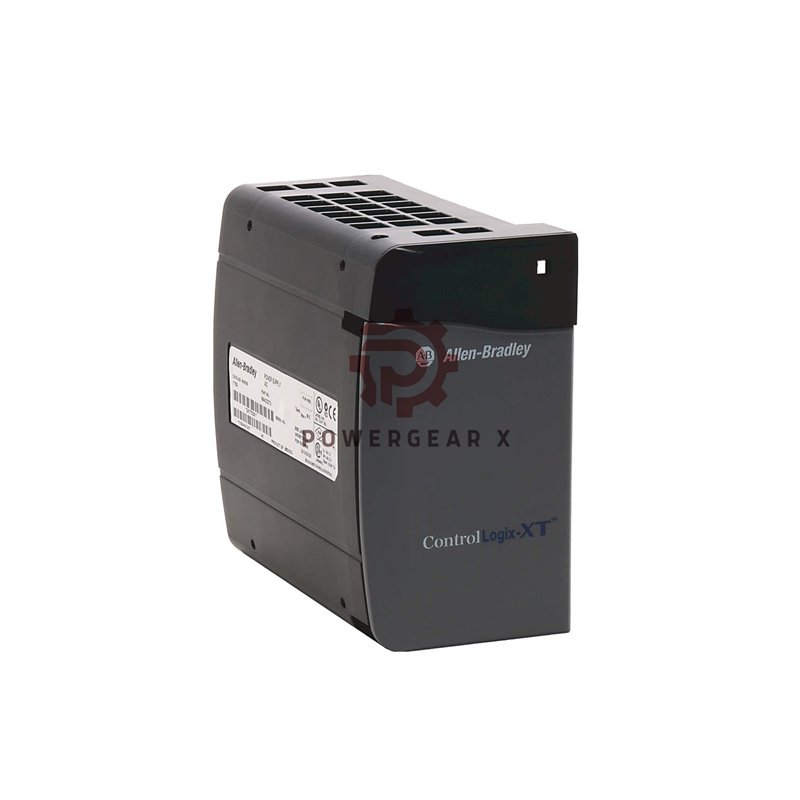

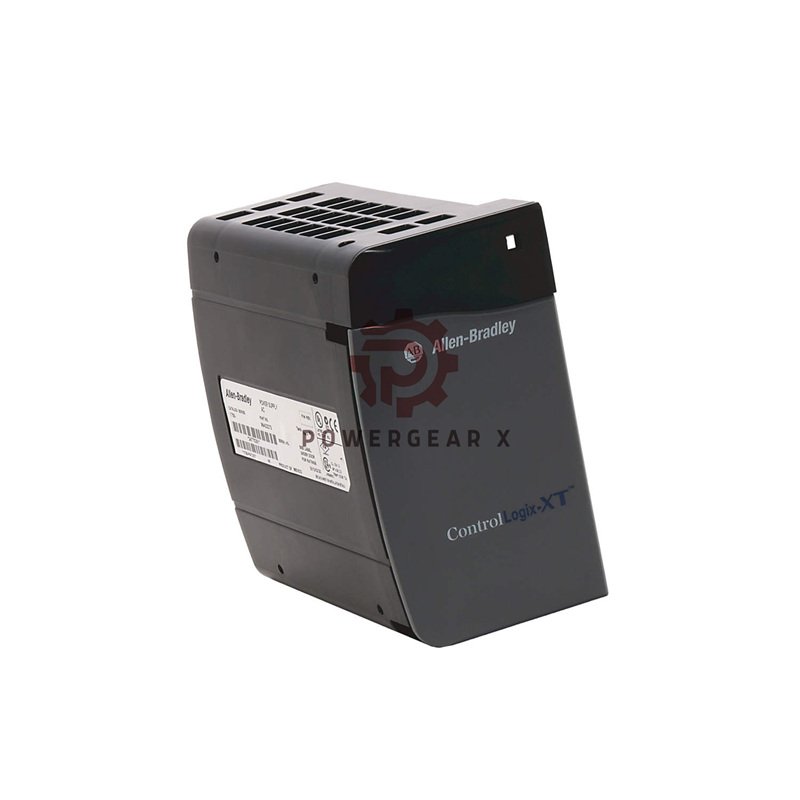

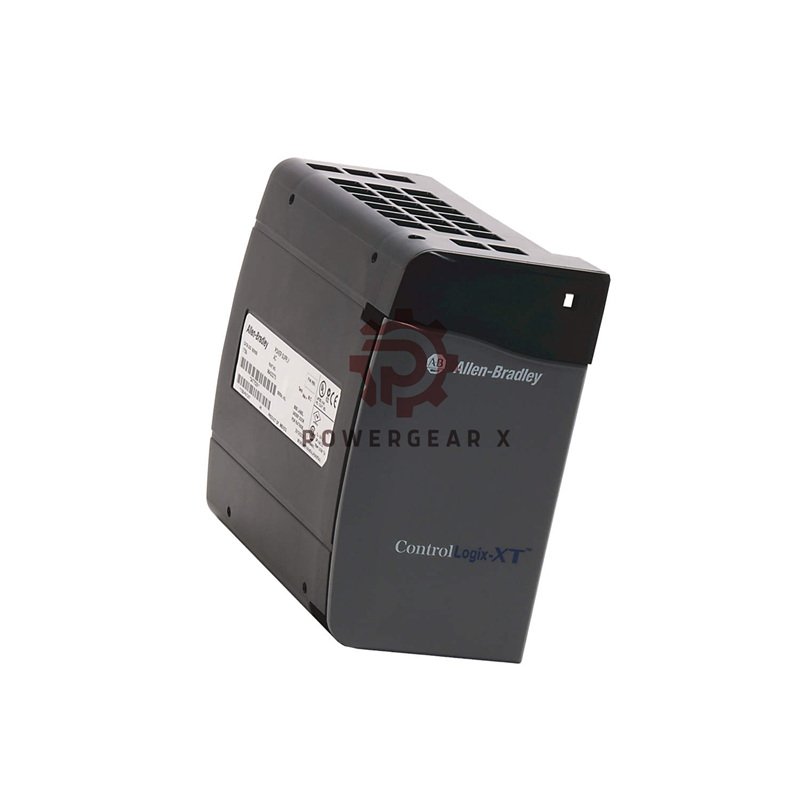

Allen-Bradley 1756-PA30XT ControlLogix-XT Power Supply – 24V DC

Allen-Bradley 1756-PA30XT ControlLogix-XT Power Supply

Reliable power for harsh industrial environments. This robust unit ensures your ControlLogix-XT system runs smoothly under extreme conditions.

Product Overview

• Brand: Allen-Bradley
• Series: ControlLogix-XT
• Model: 1756-PA30XT
• Handles extreme temperatures from -13°F to 158°F
• Perfect for tough industrial settings
• Mounts on left side of 1756 chassis

Technical Specifications

• Input Voltage: 24V DC (18-32V DC range)
• Output Power: 30W maximum
• Output Current:
  • 1.5A at 1.2V DC
  • 2.0A at 3.3V DC
  • 6.0A at 5.1V DC
  • 1.25A at 24V DC
• Isolation Voltage: 250V continuous
• Inrush Current: 30A maximum
• Operating Temperature: -13°F to 158°F (-25°C to 70°C)
• Storage Temperature: -40°F to 185°F (-40°C to 85°C)
• Humidity: 5-95% non-condensing
• Weight: 1.7 lbs (0.77 kg)
• Dimensions: 5.51″ x 3.07″ x 5.71″

Installation Guide

• Install in left slot of 1756 chassis
• Use 14 AWG copper wire rated for 194°F
• Ensure proper grounding
• Follow all safety procedures

Compatibility

• 1756-A4LXT/B Chassis
• 1756-A5XT/B Chassis
• 1756-A7LXT/B Chassis
• 1756-A7XT/B Chassis
• 1756-A7XT/C Chassis
• 1756-A10XT/C Chassis

Certification & Warranty

• UL Certified
• CE Compliant
• 12-month warranty
• Shipping via FedEx, UPS, DHL

Frequently Asked Questions

• What temperatures can this unit handle?
  It operates from -13°F to 158°F (-25°C to 70°C)
• Can I use this in redundant systems?
  Yes, with proper configuration
• What wire size should I use?
  14 AWG copper wire rated for 194°F
