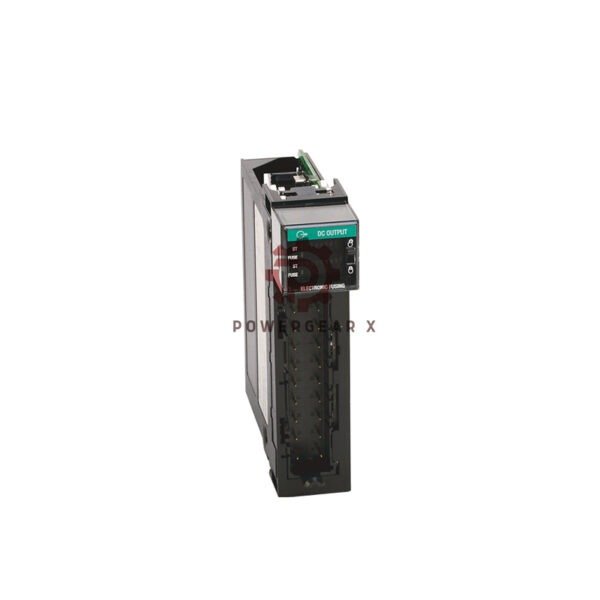

Allen-Bradley 1756-OV16E ControlLogix Module | 16-Channel

Allen-Bradley 1756-OV16E: High-Speed Fused Output Module for Industrial Control

Key Features

• 16 electronically fused outputs – protects your system
• Ultra-fast switching (75μs ON, 360μs OFF)
• Wide voltage range: 10-30V DC operation
• 1A per point / 8A total current capacity
• Built-in surge protection (2A for 10ms)

Technical Specifications

• Brand: Allen-Bradley | Model: 1756-OV16E | Series: ControlLogix
• Output Type: 16-point sinking DC
• Voltage Range: 10-30V DC (12-24V DC nominal)
• Current Rating: 1A per point | 8A module total
• Switching Speed: 75μs ON | 360μs OFF
• Power: 6.72W max | 210mA @24V
• Isolation: 250V tested (output groups)
• Operating Temp: 0°C to +60°C

Installation & Compatibility

• Uses 1756-TBNH/TBSH terminal blocks
• Hot-swappable in ControlLogix chassis
• Supports local and distributed I/O
• Tool-less module installation

Warranty & Shipping

• 12-month warranty
• Worldwide delivery: FedEx, UPS, DHL
• Package includes: 1756-OV16E module

Technical FAQs

• Q: What happens during a short circuit?
  A: Electronic fuse protects the individual output
• Q: Can I parallel outputs for higher current?
  A: Yes, up to 8A total module current
• Q: How fast can it switch repetitive loads?
  A: Handles 2A surges every 2 seconds
• Q: What’s the minimum load required?
  A: Only 2mA needed per output
• Q: Is it suitable for 24V systems?
  A: Yes, optimized for 12-24V DC operation

Download Documentation

Get complete specifications: ControlLogix I/O Modules Manual (PDF)
