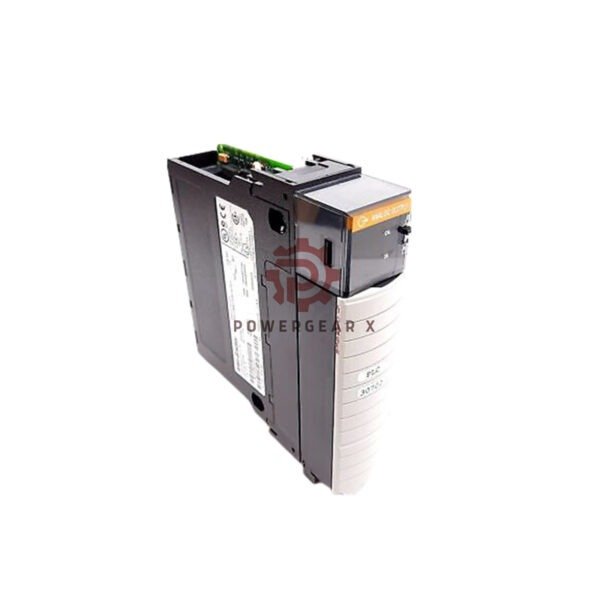

Allen Bradley 1756-ON8 ControlLogix 8-Point AC Output Module

Allen Bradley 1756-ON8 ControlLogix 8-Point AC Output Module – Industrial Automation Powerhouse

Product Overview

This Allen-Bradley ControlLogix digital output module delivers reliable 240V AC switching for industrial systems. With 8 isolated outputs and hot-swap capability, it maintains operations during maintenance.

Core Technical Specifications

• Brand/Model: Allen-Bradley 1756-ON8
• Output Type: 8-point AC
• Voltage Range: 10-30V AC | 240V AC rated
• Current Capacity: 2A per point (5A module max)
• Frequency Response: 50-60 Hz ±1%
• Response Time: 9.3ms (60Hz)
• Operating Temp: 0-60°C (32-140°F)
• Environmental: 5-95% humidity | 30g shock resistance
• Isolation: 50V continuous protection
• Power Use: 5.1W max @ 60°C

Easy Installation

• Hot-swappable design – no system shutdown needed
• Compatible terminal blocks: 1756-TBNH, 1756-TBSH
• Secure connections with provided screws
• Requires protective enclosure

Certifications & Support

• CE, UL, RoHS certified
• 12-month warranty
• Global shipping: FedEx, UPS, DHL

Frequently Asked Questions

• Q: Is this module hot-swappable?
  A: Yes – install/remove without powering down system
• Q: Maximum load per channel?
  A: 2A continuous @ 60°C
• Q: Requires external enclosure?
  A: Must be installed in protective cabinet

Package Includes

• 1x 1756-ON8 output module
• Installation documentation
