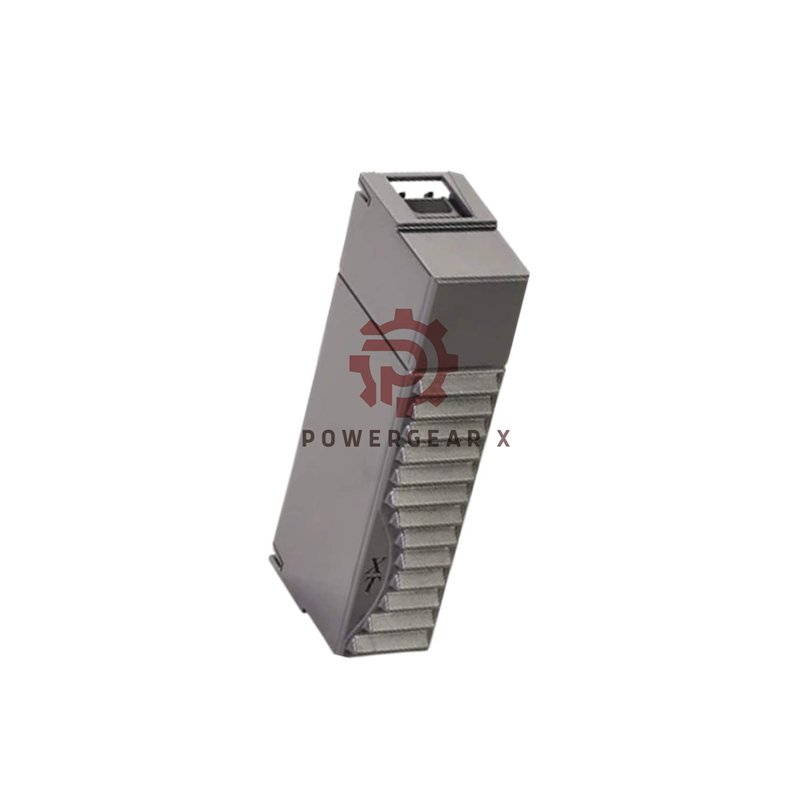

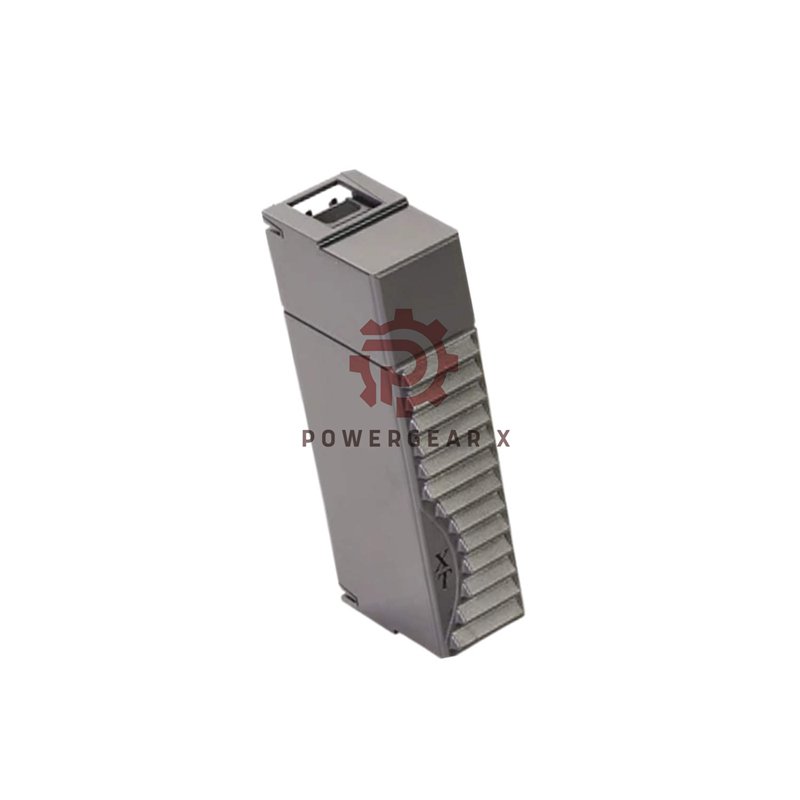

Allen-Bradley 1756-N2XT Slot Filler Module | ControlLogix-XT

Secure Your ControlLogix-XT System with Professional Slot Protection

Technical Specifications

• Brand: Allen-Bradley
• Series: ControlLogix-XT
• Model: 1756-N2XT
• Module Type: Slot Filler Module
• Backplane Current: 800mA @ 5V, 3mA @ 24V
• Power Consumption: 6.2 Watts maximum
• Thermal Dissipation: 21.2 BTU/hour
• Isolation Voltage: 50V continuous
• Operating Temperature: -25 to 70°C (-13 to 158°F)
• Communication Ports: RS-232, RS-422, RS-485 compatible
• SERCOS Data Rate: 4/8 Mbps configurable
• Current Draw: 1.2A @ 5.1V
• Certifications: GOST-R, ROSTECHNADZOR
• Enclosure Rating: None (requires cabinet protection)

Quality Assurance

• 12 Month Warranty
• Worldwide shipping via FedEx, UPS, DHL
• Factory new condition
• Original packaging included

Expert Questions Answered

• Why should I use slot filler modules?
  They prevent dust entry and maintain proper cooling in your chassis.
• Does this module require configuration?
  No, it installs without any programming or setup.
• Can I use this in standard ControlLogix chassis?
  It is specifically designed for ControlLogix-XT series chassis.
• What safety standards does it meet?
  It complies with GOST-R and ROSTECHNADZOR certifications.
• How many slots can I fill with one module?
  Each 1756-N2XT module fills one chassis slot.
