Allen-Bradley 1756-MVID Interface Module – ControlLogix

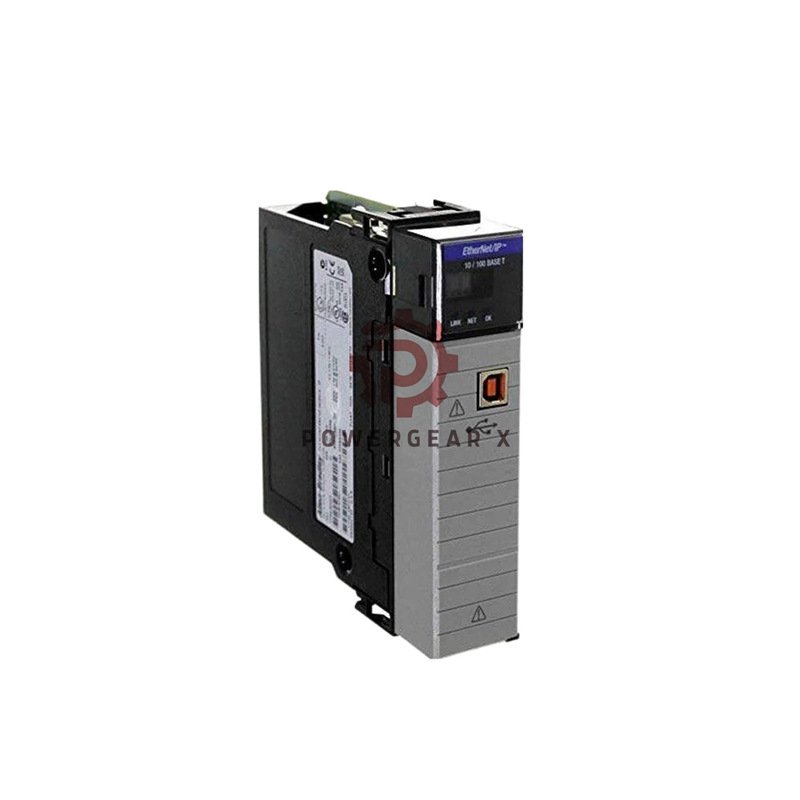

Allen-Bradley 1756-MVID ControlLogix Multi-Vendor Interface Module

Technical Specifications

• Brand: Allen-Bradley
• Model: 1756-MVID
• Series: ControlLogix
• Type: Multi-Vendor Interface Module
• Power Use: 4 Watts
• Backplane Current: 800mA at 5.1V DC, 30mA at 24V DC
• Operating Temp: 32°F to 140°F (0°C to 60°C)
• Storage Temp: -40°F to 185°F (-40°C to 85°C)
• Humidity Range: 5% to 95% non-condensing
• Shock Resistance: 30G operational
• Vibration Resistance: 2G from 10-500Hz
• Communication Speed: Up to 115.2 kbps
• Isolation Voltage: 500V AC continuous
• Enclosure Type: Open-style

Package Contents

• 1756-MVID interface module
• Three serial adapter cables
• Development CD-ROM
• Installation instructions
• Mounting hardware

Frequently Asked Questions

• What does this module do?
  It helps Allen-Bradley systems connect with other brands.
• What cables come with it?
  Three different serial adapter cables included.
• Can I install it while powered on?
  Yes, it supports hot swapping in the chassis.
• What development tools are included?
  CD-ROM contains configuration software and manuals.
• Is it suitable for hazardous areas?
  Yes, it has certifications for dangerous locations.
