Product Overview

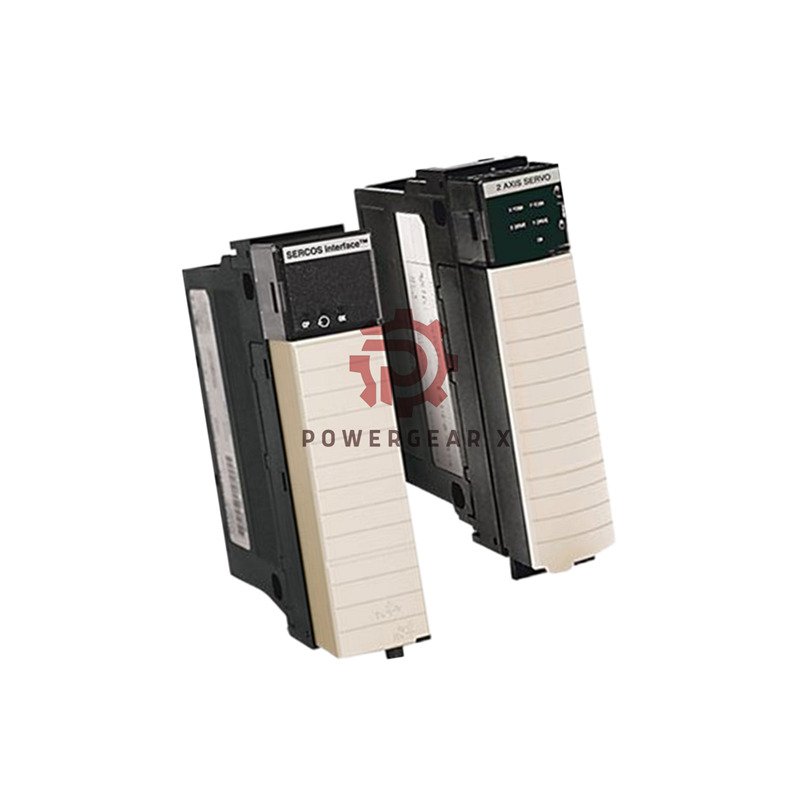

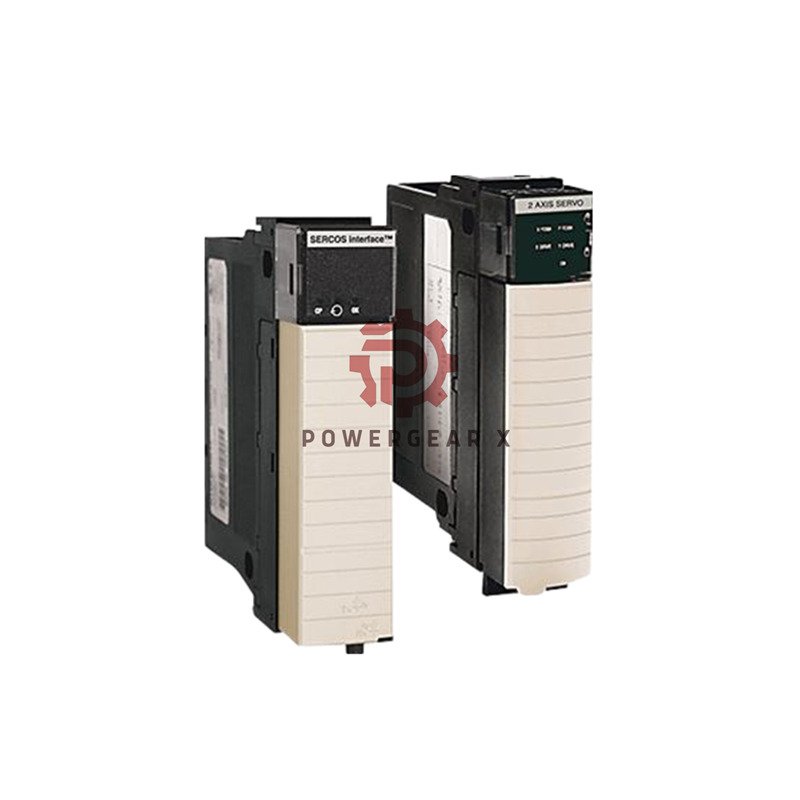

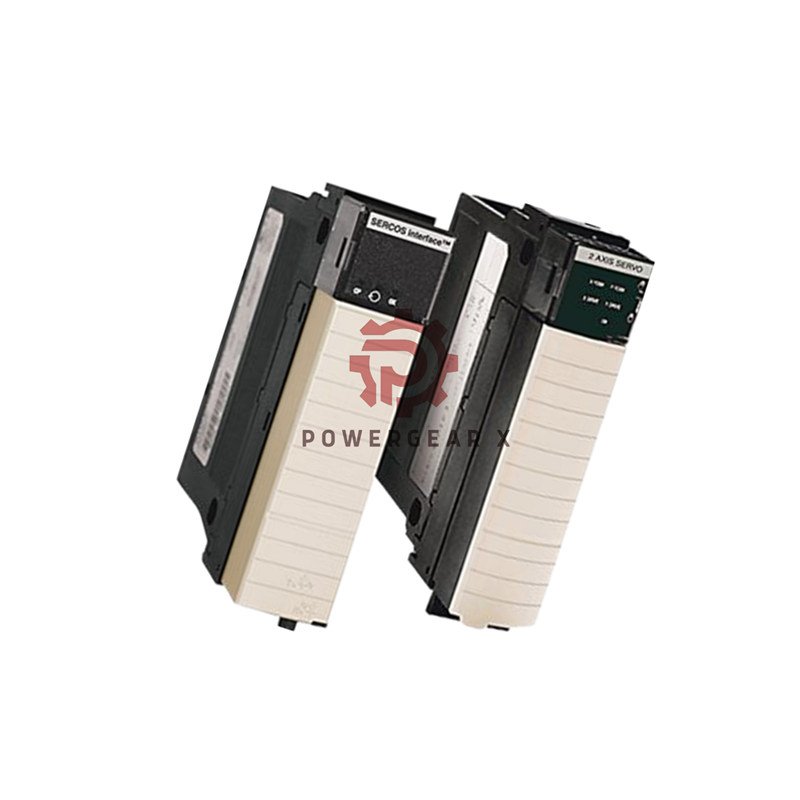

The 1756-M16SE is a powerful SERCOS interface module from Allen-Bradley. It is part of the ControlLogix series. This module connects controllers to intelligent servo drives. It supports high-speed motion control for up to 16 axes. The module uses reliable fiber-optic communication. This reduces wiring and improves noise immunity. It is perfect for complex automation systems. The 1756-M16SE ensures precise and fast data exchange.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Series: ControlLogix
- Model Number: 1756-M16SE
- Module Type: SERCOS Interface Module
- Number of Axes: 16 per module
- Data Rate: 4 Megabits/second or 8 Megabits/second
- Cycle Time: As low as 0.5 ms
- Backplane Current: 760 mA @ 5.1V, 2.5 mA @ 24V
- Power Dissipation: 6.2 Watts
- Isolation Voltage: 50 Volts continuous
- Thermal Dissipation: 21.2 BTU/hour
- Compatible Chassis: 1756-A4, A7, A10, A13, A17
- Compatible Drives: Kinetix 2000, 6000, 7000, Ultra3000
Packaging & Warranty
- One Allen-Bradley 1756-M16SE module
- Product documentation
- Shipped in secure packaging
- Backed by a 12-month warranty
We ship globally using FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- What drives work with this module?
It works with Kinetix 2000, 6000, 7000, and Ultra3000 drives. - What is the maximum cable length?
Fiber-optic cables can be up to 50 meters long. - Can I mix data rates?
No, all drives on the ring must use the same data rate. - Does it support single-ended encoders?
No, it is designed for use with digital drives. - What software is required?
You need Rockwell’s Studio 5000 Logix Designer software.
