Product Introduction: Precision Hydraulic Control

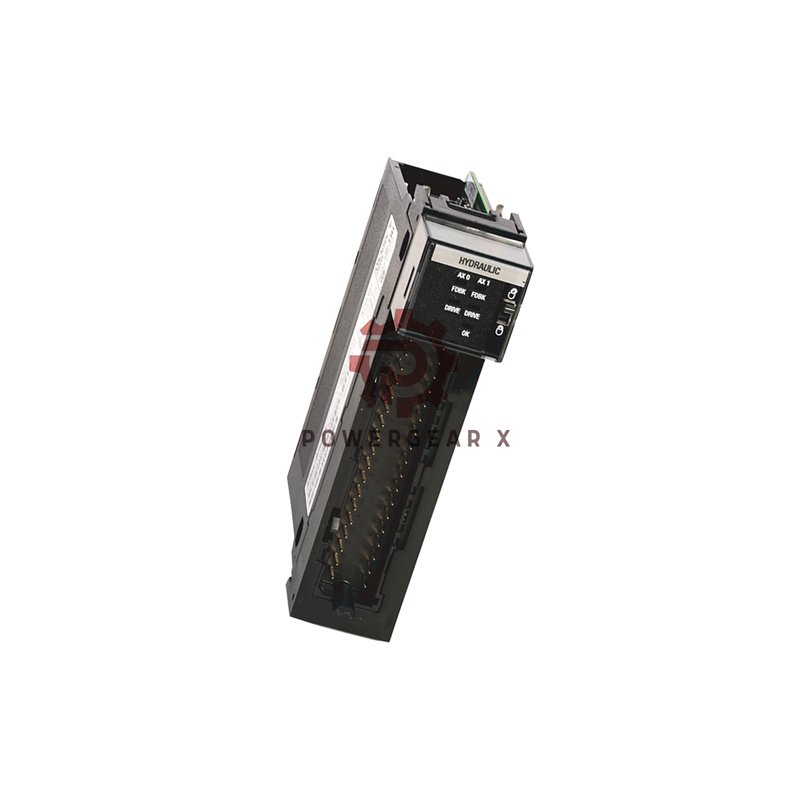

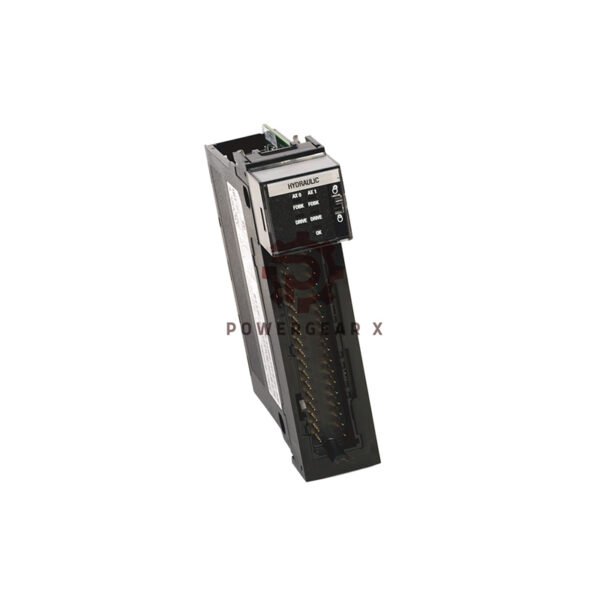

The Allen-Bradley 1756-HYD02 module delivers expert hydraulic control. It fits directly into your ControlLogix chassis. This module manages two hydraulic axes with high accuracy. It is perfect for precise cylinder positioning tasks.
Detailed Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1756-HYD02
- Series: ControlLogix
- Module Type: 2-Channel Hydraulic Servo
- Control Algorithm: PID with Feed-Forwards
- Gain Resolution: 32-bit floating point
- Position Range: 230,000 LDT counts
- Update Rate: Selectable (500 Hz, 1 kHz, 2 kHz, 4 kHz)
- Analog Output: ±10V DC, 16-bit resolution
- Discrete Outputs: 24V DC solid-state
- Power Consumption: 5.5 Watts
- Backplane Current: 700 mA @ 5.1V, 2.5 mA @ 24V
- Isolation Voltage: 30V continuous
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Vibration Rating: 2g (10-500 Hz)
- Shock Rating: 30g operating, 50g non-operating
Compatibility & Installation
The 1756-HYD02 module works in any ControlLogix chassis slot. It uses standard 1756 removable terminal blocks. Installation is quick and simple. Key the terminal block to prevent errors.
