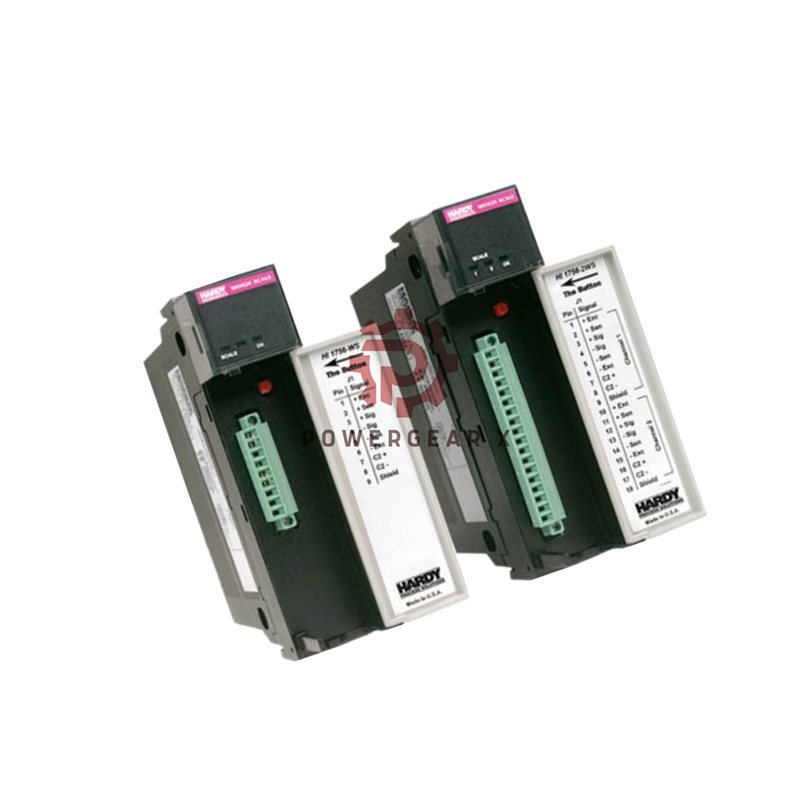

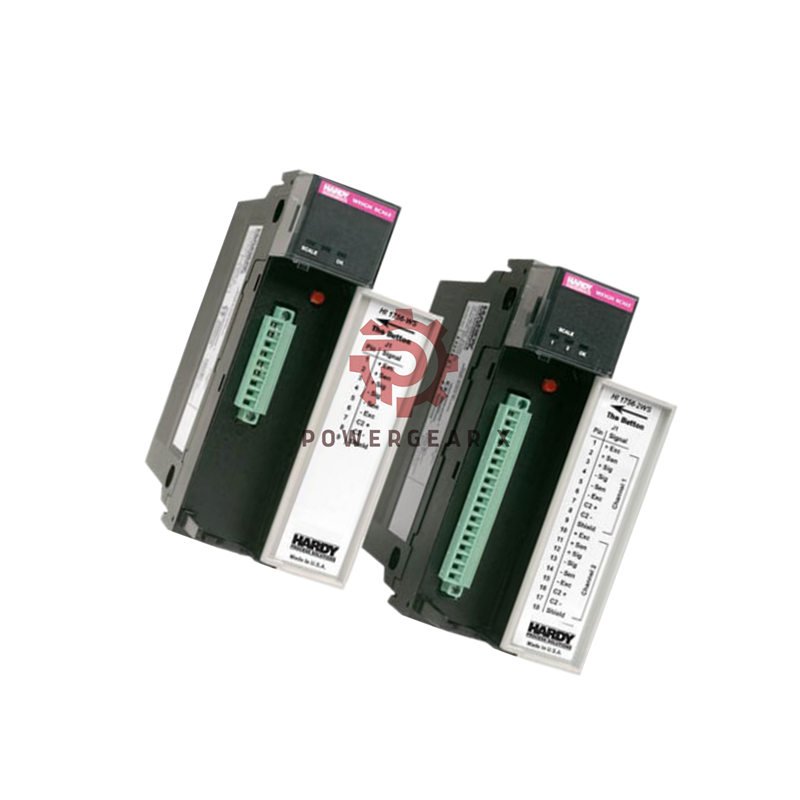

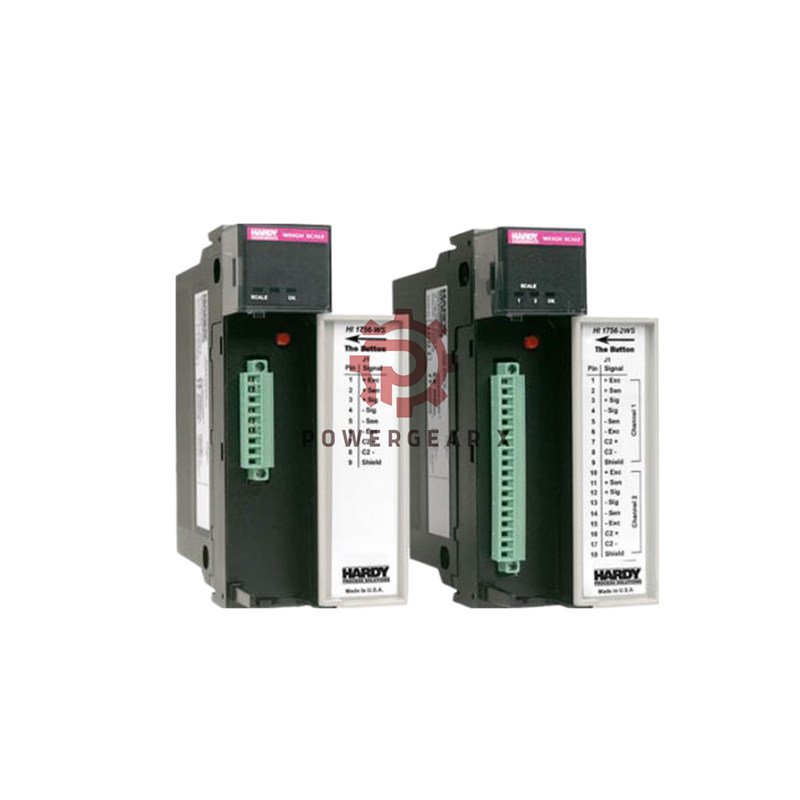

Allen-Bradley 1756-2WS Weigh Module – Dual-Channel Scale

Product Overview

The 1756-2WS weigh module brings precision weighing to your ControlLogix system. This dual-channel module connects directly to load cells. It is perfect for batching, blending, and filling operations. You get accurate weight data without complex wiring.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1756-2WS
• Series: ControlLogix
• Type: Dual Weigh Scale Module
• Input Signal: -0.3 to +15.3 mV
• Excitation Voltage: 5 VDC
• Update Rate: 50 updates per second
• Averaging: User selectable from 1 to 255
• Operating Temperature: 32° to 140° F (0° to 60° C)
• Power Consumption: <1A @ 5.1V DC; <0.0125A @ 24V DC
• Certifications: UL, CE, RoHS, REACH
• Weight: 0.5 kg (1.1 lbs)
