Allen-Bradley 1747-UIC USB to DH-485 Converter | SLC 500 Series

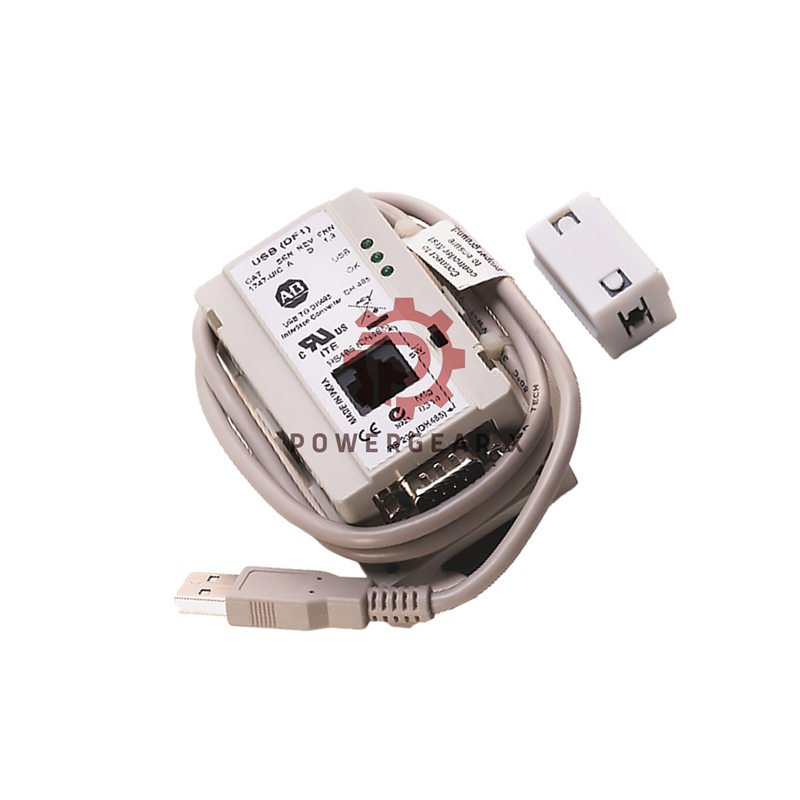

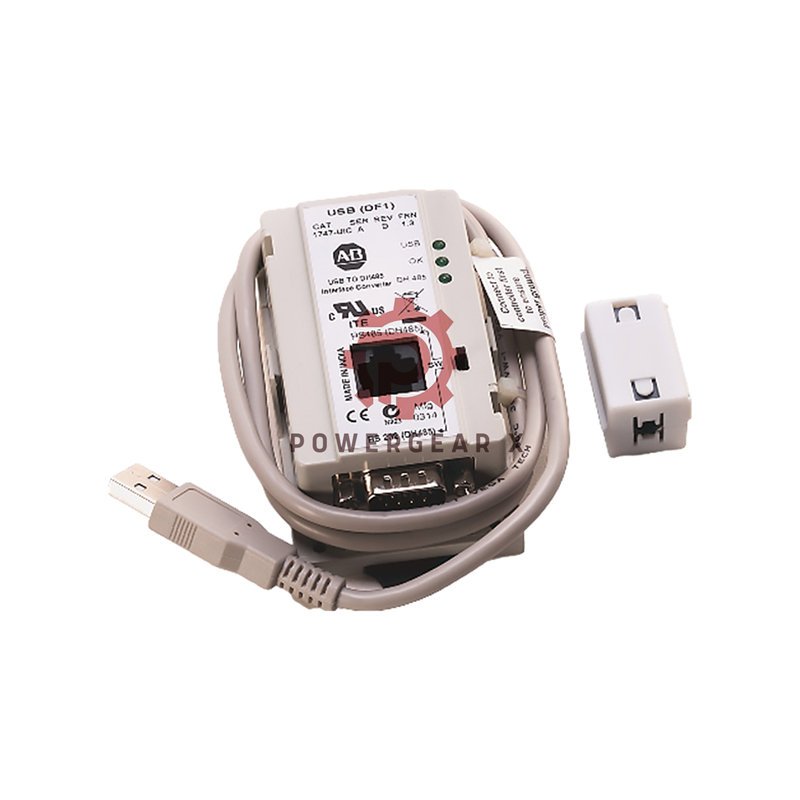

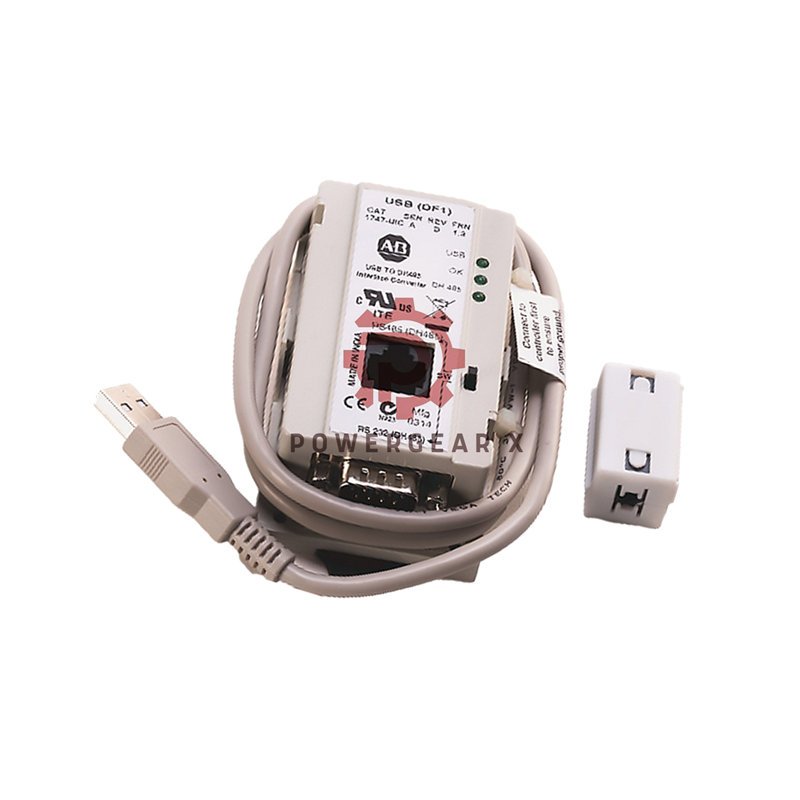

Allen-Bradley 1747-UIC USB to DH-485 Interface Converter

The Allen-Bradley 1747-UIC connects modern computers to industrial networks. This reliable converter links USB ports to DH-485 systems. It works with SLC 500, MicroLogix, and PanelView devices. The 1747-UIC makes communication simple and efficient.

Technical Specifications

• Brand: Allen-Bradley
• Series: SLC 500
• Model: 1747-UIC
• Interface Type: USB to DH-485 Converter
• USB Speed: 12 Mbps transfer rate
• Communication Rate: 19.2 Kbps
• Power Consumption: < 100 mA via USB
• Isolation Protection: 500V DC circuit isolation
• Operating Temperature: 0-60°C (32-140°F)
• Dimensions: 109mm x 50.6mm x 31mm
• Weight: 1 pound (0.45 kilograms)
• Backplane Current: 600mA @ 5V, 90mA @ 24V
• Compatible Ports: RJ-45, DB9 RS-232, DH-485

Easy Installation

• Connect to computer USB port
• Plug into DH-485 network
• No external power required
• Driver installation needed
• LED indicators show status

Package Contents

• One 1747-UIC Interface Converter
• USB connection cable
• Installation guide
• Driver software CD

Shipping Services

• FedEx priority shipping
• UPS worldwide delivery
• DHL express service
• Fast order processing

Warranty Coverage

• 12-month warranty
• Quality guaranteed
• Reliable performance

Frequently Asked Questions

• Which devices work with the 1747-UIC?
  It connects SLC 500, MicroLogix, PanelView with DH-485 ports.
• What communication speeds does it support?
  It offers 12 Mbps USB speed and 19.2 Kbps DH-485 rate.
• Does it need external power?
  No, it draws power from the USB connection.
• What safety features does it have?
  It provides 500V DC isolation protection.
• Is driver installation required?
  Yes, you need to install the provided drivers.
