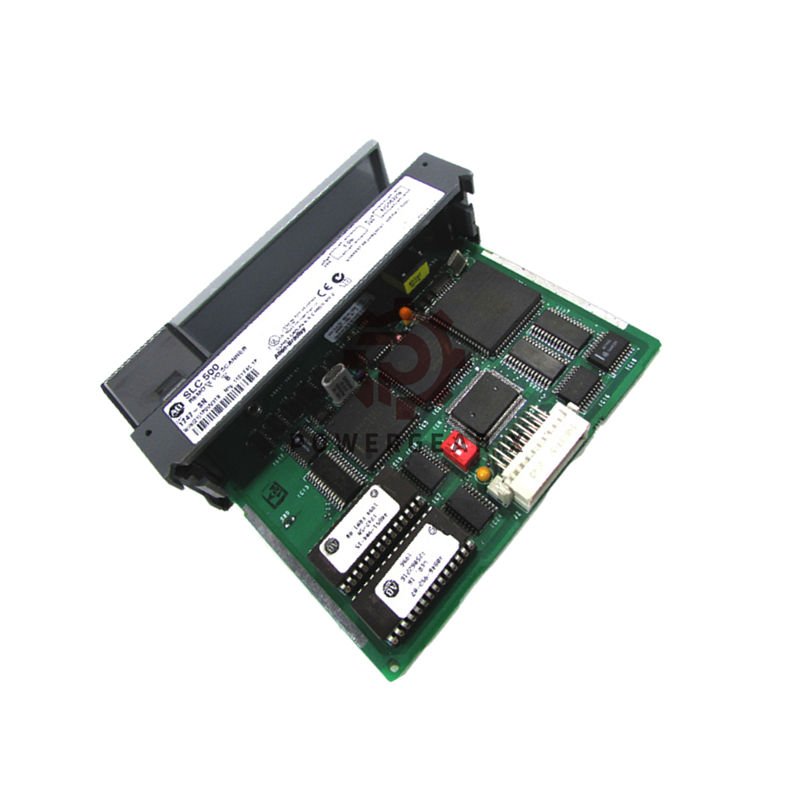

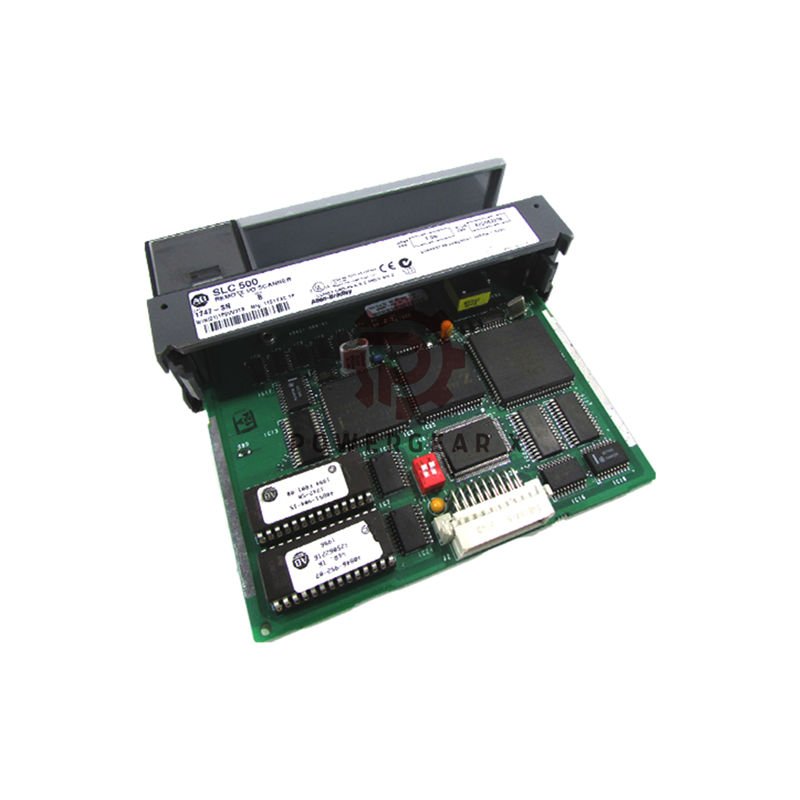

Allen-Bradley 1747-SN Remote I/O Scanner Module

The Allen-Bradley 1747-SN enables high-speed data transfer in automation networks. This SLC 500 series module connects processors with remote devices efficiently. Rockwell Automation designed it for reliable industrial communication.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1747-SN
• Series: SLC 500
• Module Type: Remote I/O Scanner
• Communication Ports: 1 RIO port
• Data Transfer Rates: 57.6 Kbaud to 230.4 Kbaud
• Maximum Cable Length: 3048 meters (10,000 ft)
• Compatible Processors: SLC 5/02, 5/03, 5/04, 5/05
• Operating Temperature: 0 to 60°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 5% to 95% non-condensing
• Backplane Current: 600 mA at 5V, 90 mA at 24V
• Device Capacity: 16 normal mode, 32 complementary mode
• Recommended Cable: Belden 9463
• Termination: 82 Ohm resistor required

Package Contents

• One 1747-SN scanner module
• Installation documentation
• Required mounting hardware

We ship worldwide via FedEx, UPS, and DHL with full tracking.

Frequently Asked Questions

• What devices can the 1747-SN communicate with?
  It connects with PanelView terminals, SLC controllers, and third-party gateways.
• What cable should I use with this module?
  Use Belden 9463 cable for optimal performance and reliability.
• How many devices can I connect to one scanner?
  You can connect up to 16 devices in normal mode or 32 in complementary mode.
• What are the available baud rate options?
  The module supports four selectable baud rates up to 230.4 Kbaud.
• Does the 1747-SN support diagnostic functions?
  Yes, it provides diagnostic capabilities for network monitoring and troubleshooting.
