Allen-Bradley 1747-L533 SLC 5/03 Processor | 32K Memory

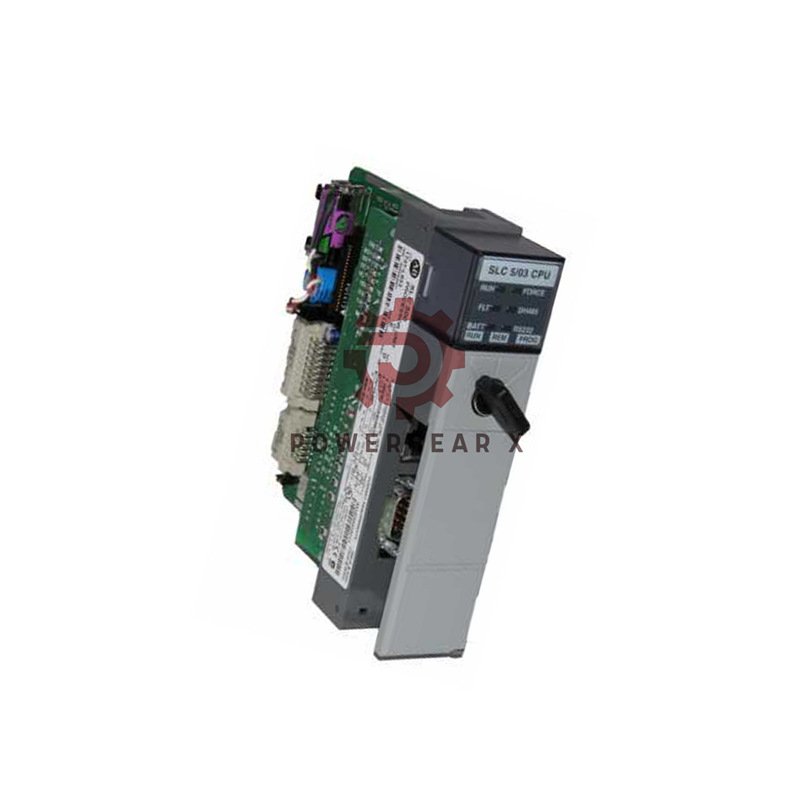

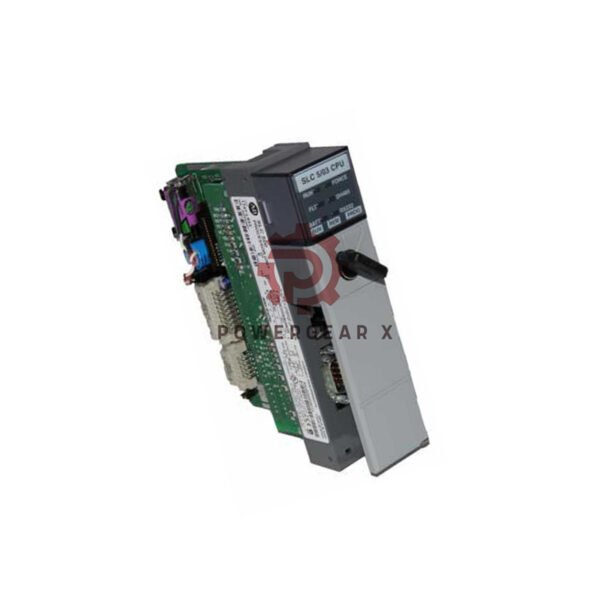

Allen-Bradley 1747-L533 SLC 5/03 Processor – Reliable Industrial Control Solution

The Allen-Bradley 1747-L533 delivers powerful automation control for industrial applications. This SLC 5/03 processor handles complex tasks with ease. It offers fast processing and flexible connectivity options. The unit works perfectly in various industrial environments.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1747-L533
• Series: SLC 500
• Type: SLC 5/03 Processor
• Input Capacity: 4096 points
• Output Capacity: 4096 points
• User Memory: 32,000 words
• Program Scan Time: 1.0 ms per 1K words
• I/O Scan Time: 0.225 ms
• Communication Ports: DH-485, RS-232
• Backup Memory: Flash and battery-backed RAM
• Operating Temperature: 0 to 60°C
• Voltage Requirements: 5V DC (500 mA), 24V DC (175 mA)
• Chassis Support: Up to 3 local I/O chassis
• Module Slots: Maximum 30 slots
• Noise Immunity: Excellent industrial-grade protection
• Environmental Rating: Suitable for harsh conditions

Frequently Asked Questions

What communication protocols does the 1747-L533 support?
The processor supports DH-485 and RS-232 communication protocols.

Can I expand the I/O capacity of this processor?
Yes, the processor supports up to 4096 inputs and 4096 outputs.

What is the memory configuration of this unit?
The unit provides 32K words total memory with 28K for program storage.

Does this processor support analog I/O modules?
Yes, it supports up to 480 local analog I/O points.

What programming software works with the 1747-L533?
Use Rockwell Automation’s RSLogix 500 software for programming.
