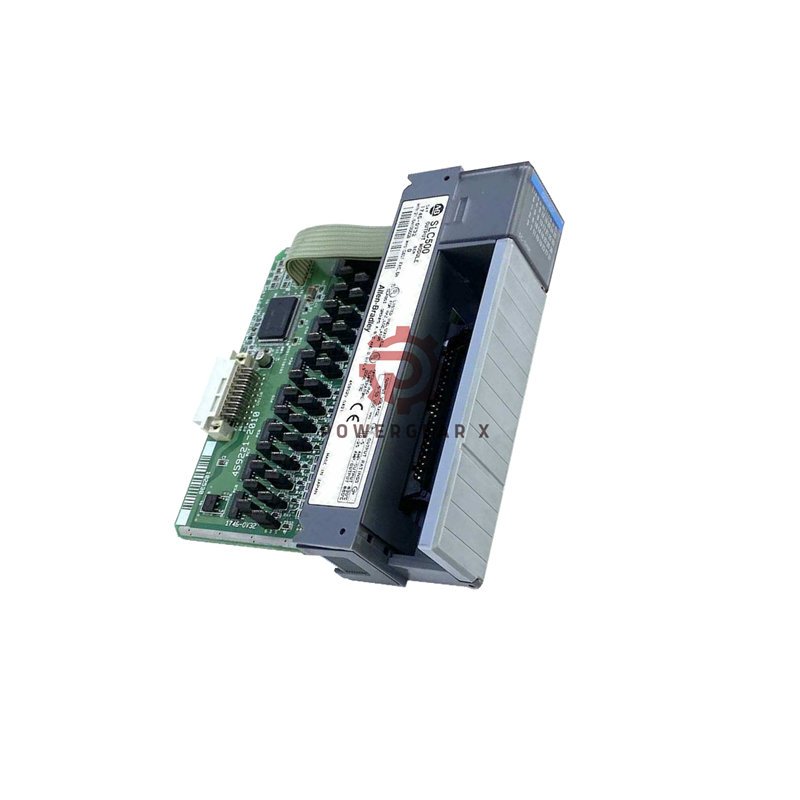

Allen-Bradley 1746-OV32 SLC 500 Module | High-Density 32 Output Control
The Allen-Bradley 1746-OV32 gives you 32 outputs in one module. This SLC 500 module is perfect for high-density applications. It works with 24V DC systems and fits any SLC 500 chassis.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1746-OV32
- Series: SLC 500
- Type: 32-point Sinking Output
- Voltage Range: 5-50V DC
- Nominal Voltage: 24V DC
- Current per Point: 0.5A at 30°C / 0.25A at 60°C
- Total Current: 8A maximum
- Surge Current: 1A for 10ms
- Response Time: 0.1ms ON / 1.0ms OFF
- Backplane Current: 190mA at 5V DC
- Isolation: 1500V AC
- Heat Dissipation: 6.45W maximum
- Operating Temperature: 0°C to 60°C
- Connector: 40-pin female
Wiring & Installation
- Uses standard 40-pin connector
- Works with 1746-NC3 wiring connector
- Compatible with 1492 wiring system
- Easy DIN rail mounting available
- Install in any SLC 500 chassis
Protection & Safety
- 1500V isolation from backplane
- Requires external fusing
- Built to international standards
- UL, CE, CSA certified
Package Includes
- One 1746-OV32 module
- 12-month warranty
- Shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- How many outputs does this module have?
32 sinking output channels - What wiring options are available?
40-pin connector or 1492 wiring system - Does it include electronic protection?
No, external fusing is recommended - What is the surge current capability?
1A for 10ms per channel - Can I use this in high temperature environments?
Yes, rated for up to 60°C operation
Download Manual
Get complete installation and wiring details. Download the full manual for free.
