Product details
Product Introduction

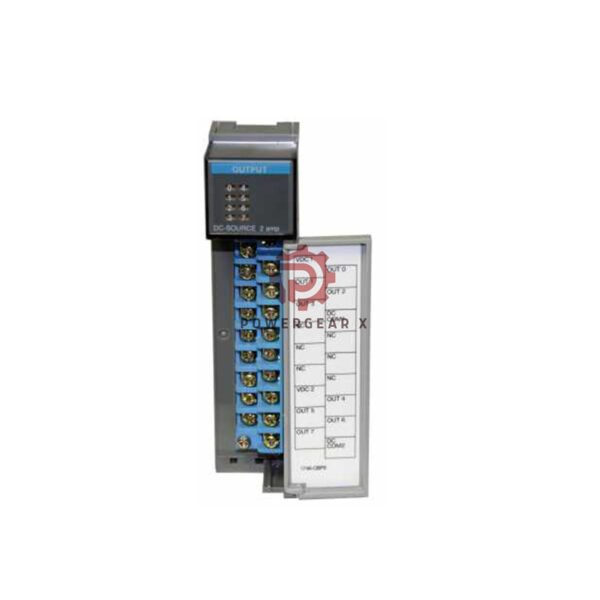

The Allen-Bradley 1746-OBP8 is a high-performance, 8-channel DC output module. It is part of the trusted SLC 500 series. This module provides robust 24V DC sourcing outputs. It is designed for demanding industrial automation applications. Control high-current devices like solenoids and motors with ease. It offers excellent reliability and simple integration.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1746-OBP8
- Series: SLC 500
- Type: Digital DC Output Module (Sourcing)
- Output Channels: 8
- Voltage Range: 20.4–26.4V DC
- Current per Point: 2A (at 60°C)
- Total Module Current: 8A (0–60°C)
- On-State Delay: 1ms
- Off-State Delay: 2ms
- Isolation Voltage: 1500V
- Operating Temperature: 0°C to 60°C
- Noise Immunity: NEMA ICS 2-230
FAQ
- What is the output type? 24V DC Sourcing.
- How many outputs are there? Eight (8) individual channels.
- Can it control AC loads? Yes, with an interposing relay.
- What is the maximum current? 2A per point, 8A per module.
Packaging & Warranty
- Package includes one 1746-OBP8 module.
- Backed by a 12-month warranty.
- Fast global shipping via FedEx, UPS, or DHL.
Resources
For complete installation and wiring details, download the full hardware manual here: SLC 500 Hardware Manual.
