Allen-Bradley 1746-OB16 For SLC 500 – 16-Point DC Output Module

Allen-Bradley 1746-OB16 SLC 500 DC Output Module – High-Current 16-Point

Product Overview

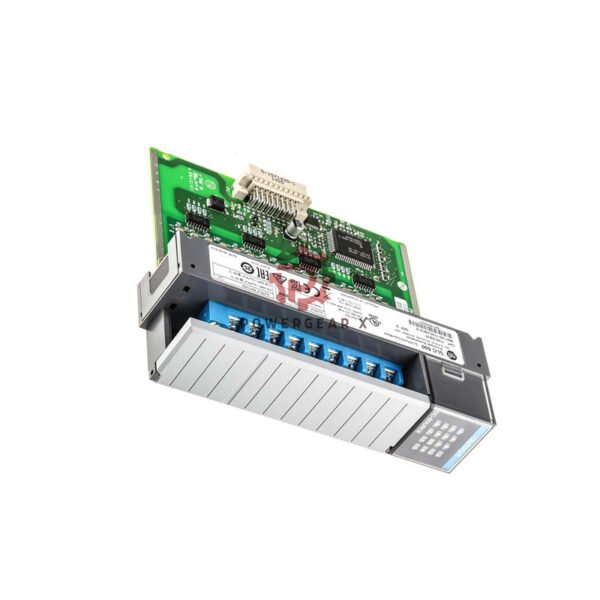

The 1746-OB16 is a powerful DC output module. It works with Allen-Bradley SLC 500 systems. This module controls sixteen high-current output points. It handles industrial loads up to 1.5A per point. Perfect for driving valves, relays, and motors.

Detailed Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-OB16
• Series: SLC 500
• Output Type: 24V DC Sourcing
• Number of Points: 16
• Voltage Range: 10-30V DC
• Current per Point: 1.5A @ 30°C, 1.0A @ 55°C
• Total Module Current: 6.4A maximum
• On Delay: 1.0 milliseconds
• Off Delay: 0.1 milliseconds
• Backplane Current: 135mA @ 5.1V DC
• Leakage Current: 1mA maximum
• Heat Dissipation: 7.6 Watts
• Operating Temperature: 0-60°C (32-140°F)

Quality Guarantee & Shipping

This genuine Allen-Bradley 1746-OB16 includes a 12-month warranty. We ship worldwide via FedEx, UPS, and DHL. Fast delivery ensures your projects stay on schedule.

Professional FAQs

• What is the maximum current per output?
  Each output handles 1.5A at 30°C or 1.0A at 55°C ambient temperature.
• Can I parallel outputs for higher current?
  No. Do not parallel outputs as it may cause uneven current sharing.
• What type of loads can this module drive?
  It can drive resistive, inductive, and lamp loads within specified ratings.
• Is external protection required for inductive loads?
  Yes. Use suppression diodes for DC coils and MOVs for AC coils.
• How do I calculate heat dissipation for my application?
  Multiply total output current by output voltage drop for approximate heat generation.
