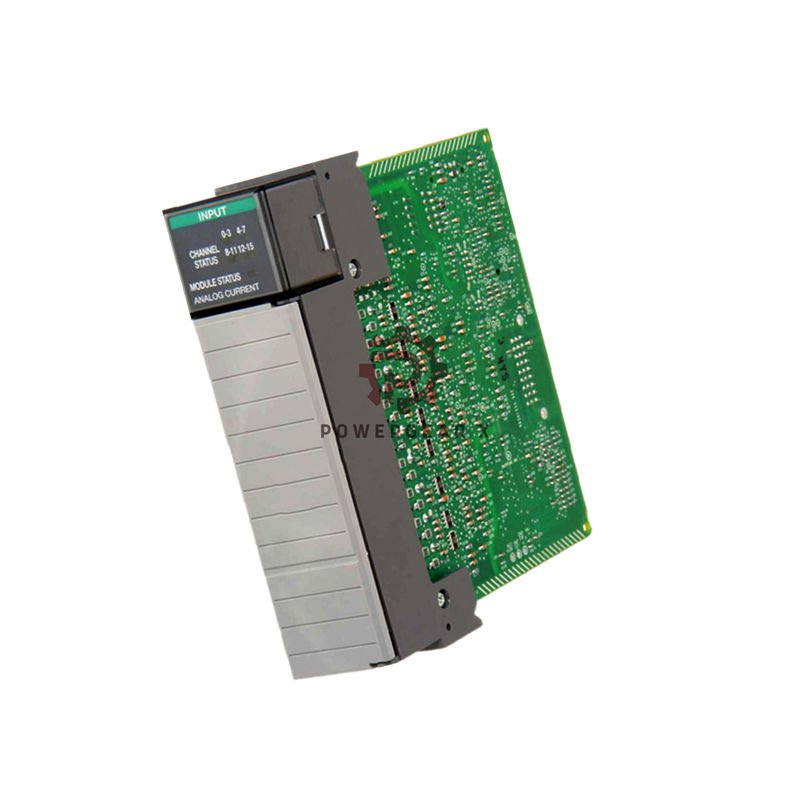

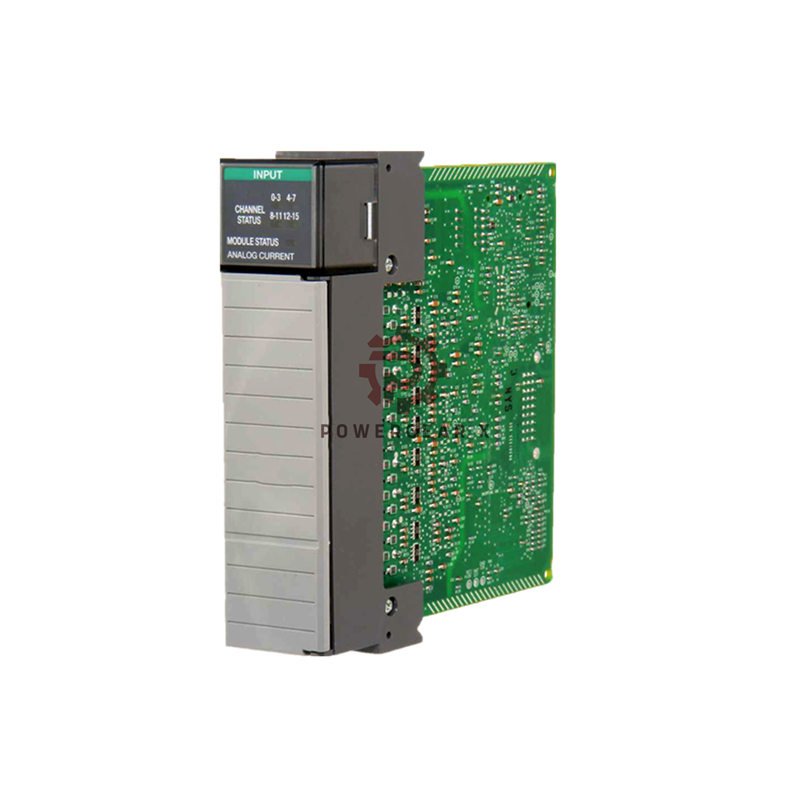

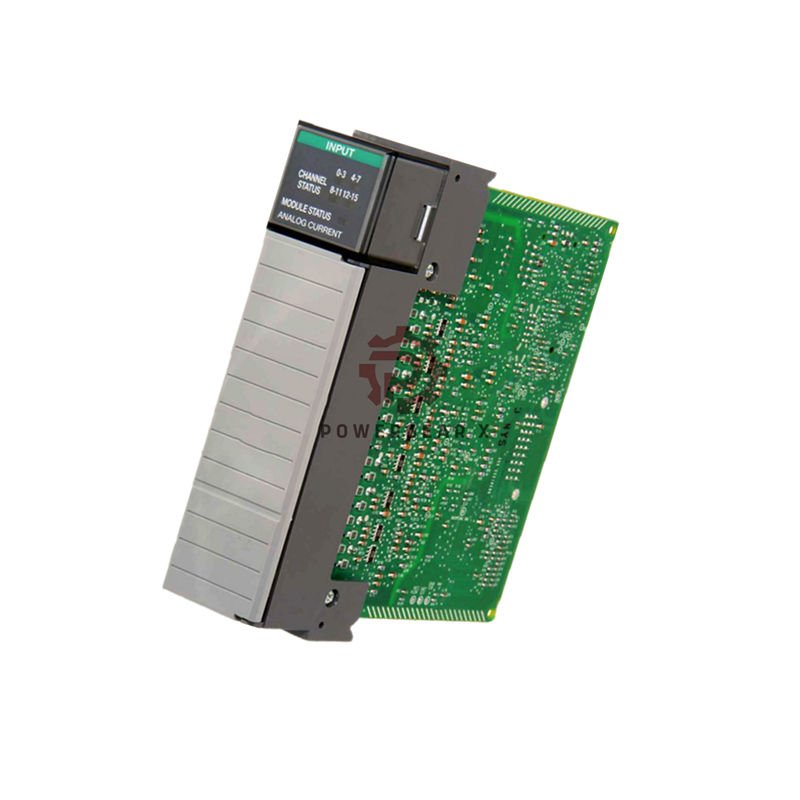

Allen-Bradley 1746-NI16I SLC 500 Analog Input Module | 16-Channel

Allen-Bradley 1746-NI16I: Precision 16-Channel Analog Input Module for SLC 500 Systems

The 1746-NI16I analog input module delivers high accuracy. It connects analog sensors to your SLC 500 PLC. It reads sixteen different signals. Perfect for process control. Easy to set up and use.

Complete Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-NI16I
• Series: SLC 500
• Type: 16-Channel Analog Input Module
• Input Types: 0-20mA, 4-20mA, ±20mA, 0-1mA
• Resolution: 16-bit high accuracy
• Update Time: 9-630 milliseconds
• Filter Frequencies: 8 selectable rates
• Isolation: 500V AC for safety
• Power Consumption: 125mA at 5V, 75mA at 24V
• Operating Temperature: -25°C to 60°C
• Wire Size: Up to 14 AWG
• Connector: 25-pin D-shell

Shipping and Warranty Details

• 12-month warranty
• Worldwide shipping via FedEx, UPS, DHL
• Express delivery options available

Expert FAQ

• Q: What processors work with this module?
  A: All SLC 500 processors are compatible.
• Q: What is the resolution of this module?
  A: It has 16-bit resolution for high accuracy.
• Q: Can I filter input signals?
  A: Yes, it has programmable digital filtering.
• Q: How are status indicators arranged?
  A: One LED per four channels plus module status.
• Q: What cable is recommended?
  A: Belden #8761 or equivalent shielded cable.
