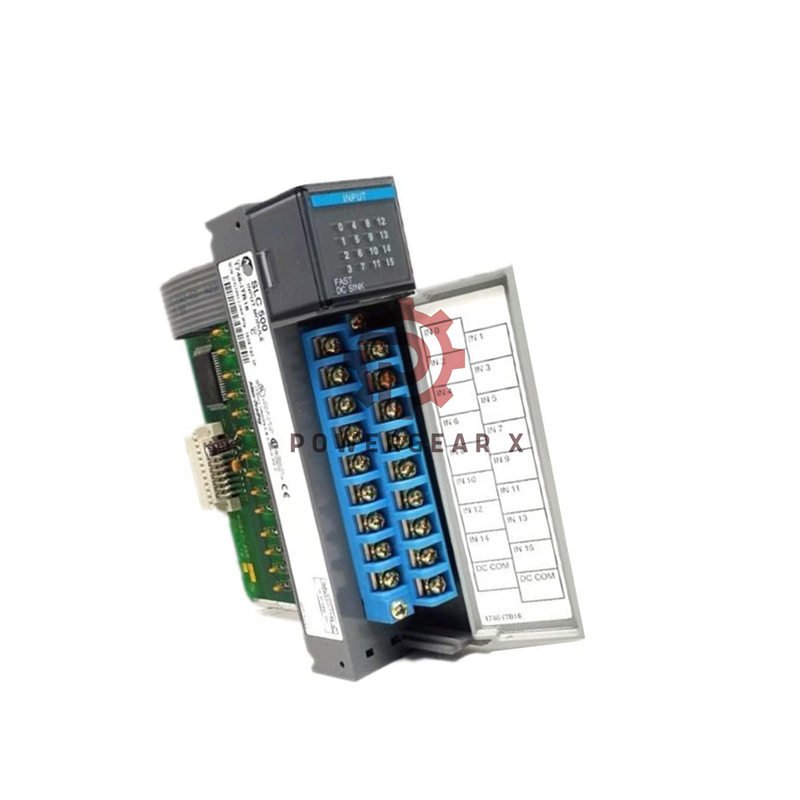

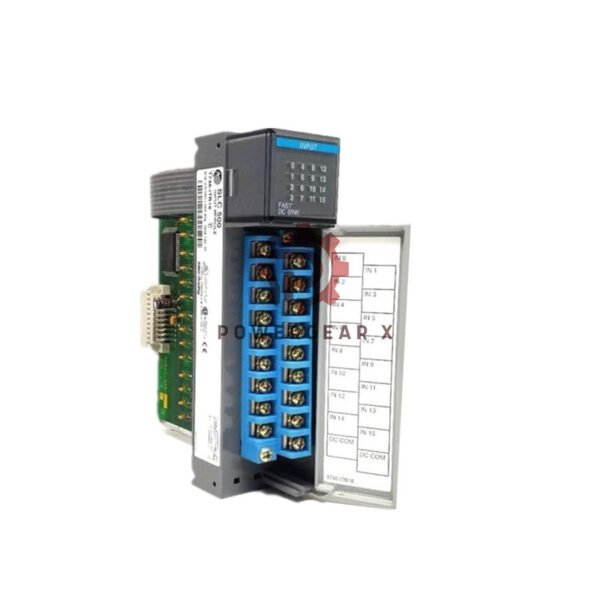

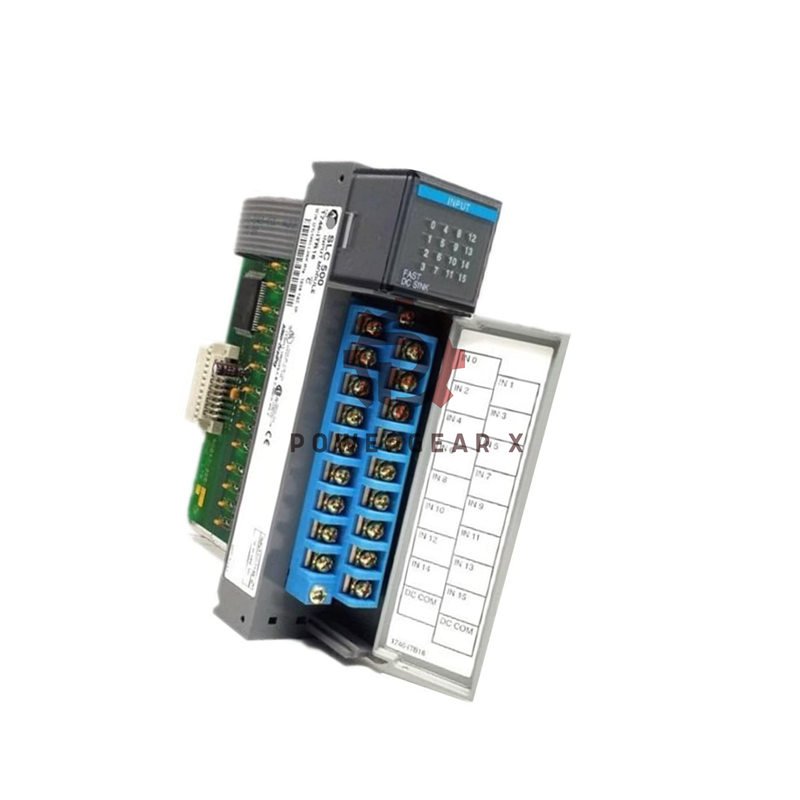

Allen-Bradley 1746-ITB16 SLC 500 Input Module | 16-Ch 24VDC

Allen-Bradley 1746-ITB16: High-Speed 24VDC Sinking Input Module for SLC 500 | Fast Response & Reliable

The 1746-ITB16 is a fast response input module. It works with SLC 500 systems. It reads sixteen high-speed signals. Perfect for quick switching machines. Easy to install and use.

Detailed Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-ITB16
• Series: SLC 500
• Type: 24VDC Sinking Input Module
• Input Channels: 16
• Input Voltage: 10-30 VDC
• Nominal Voltage: 24 VDC
• On Delay: 0.3 ms max
• Off Delay: 0.5 ms max
• Off-State Current: 1.5 mA max
• Backplane Current: 85 mA at 5VDC
• Isolation: Optical coupling
• Operating Temperature: 0 to 60°C
• Connection: Removable terminal block

Shipping and Warranty

• 12-month warranty
• Worldwide shipping via FedEx, UPS, DHL
• Fast delivery options available

Professional FAQ

• Q: What is the maximum input frequency?
  A: Up to 1 kHz standard, 2 kHz with gray code encoder.
• Q: Is this module compatible with SLC 5/05?
  A: Yes, it works with all SLC 500 processors.
• Q: What wiring configuration does it use?
  A: It uses sink wiring configuration.
• Q: Can I replace the module without rewiring?
  A: Yes, it has removable terminal blocks.
• Q: How do I monitor input status?
  A: Use the LED indicators on the module front.
