Allen-Bradley 1746-IO12DC SLC 500 Digital I/O Module – 6 Inputs

Allen-Bradley 1746-IO12DC Digital I/O Module – Reliable & Efficient Automation Solution

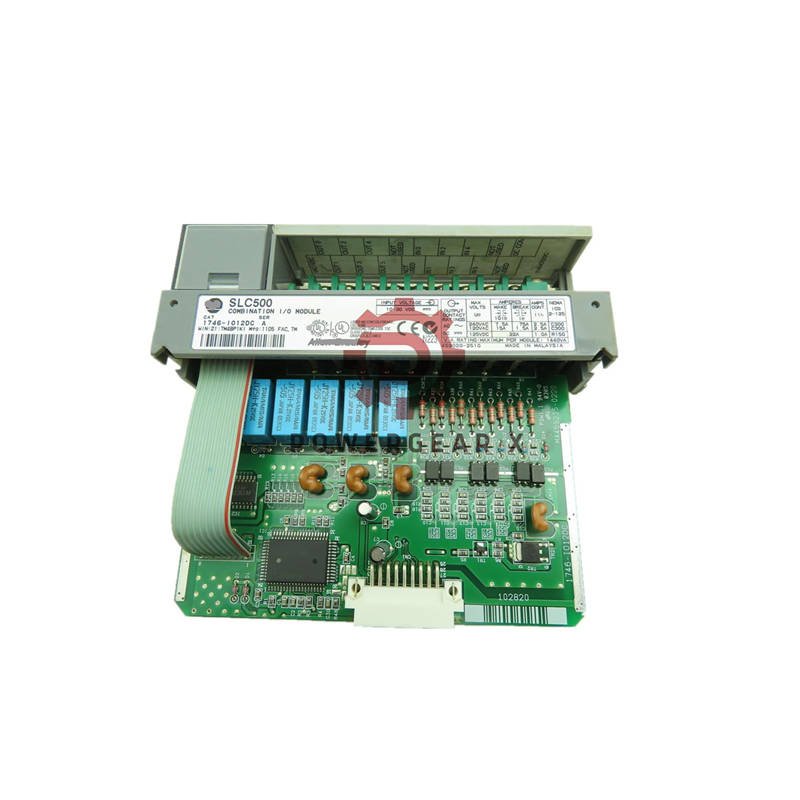

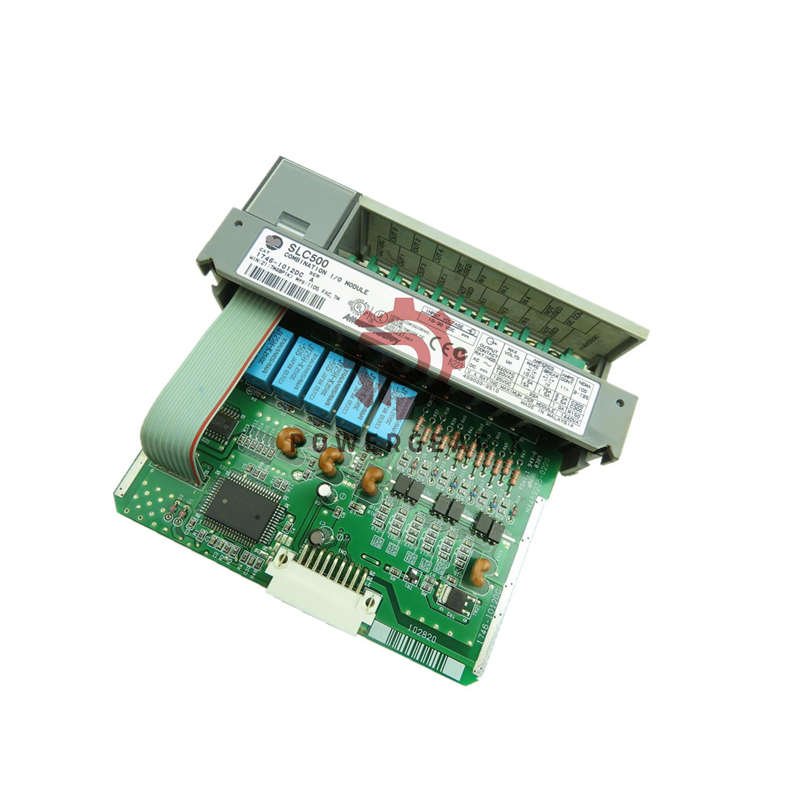

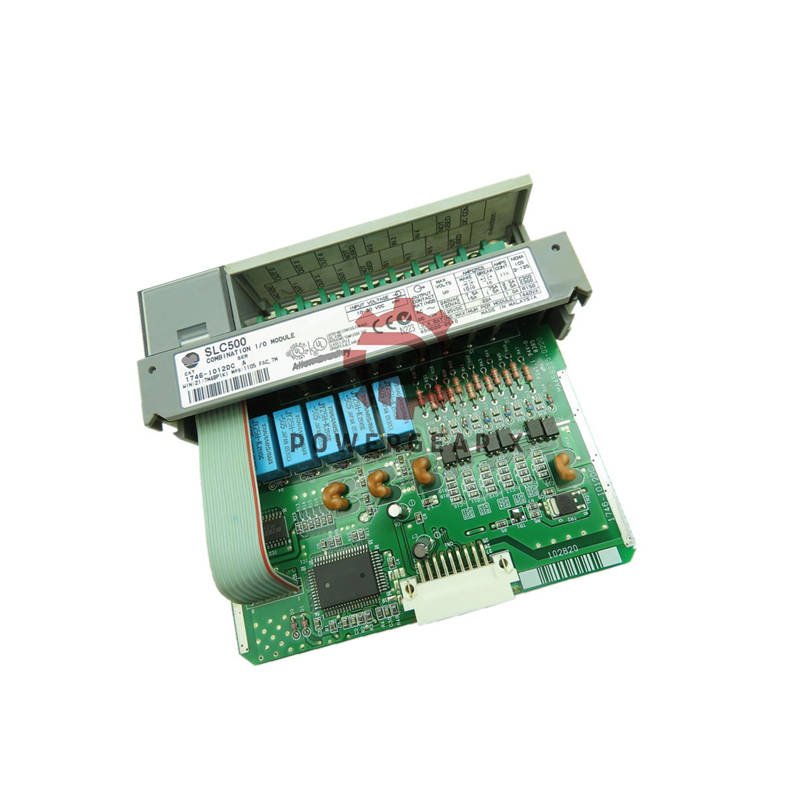

The Allen-Bradley 1746-IO12DC is a digital I/O combination module for the SLC 500 series. It provides six 24V DC inputs and six relay outputs. Use it in any chassis slot (except slot 0). Perfect for industrial control applications.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-IO12DC
• Series: SLC 500
• Type: Digital I/O Combination Module
• Input Voltage: 10-30V DC
• Output Type: Relay Contact
• Output Range: 5-265V AC / 5-125V DC
• Max Current per Output: 2A
• Signal Delay: 8 ms
• Operating Temperature: 0°C to 60°C
• Certifications: C-UL, CSA
• Backplane Current: 80 mA (5V), 60 mA (24V)

FAQ

• What is the output type? Relay contact.
• What input voltage is required? 10-30V DC.
• Is it compatible with other PLCs? Only SLC 500 series.
