Product Overview

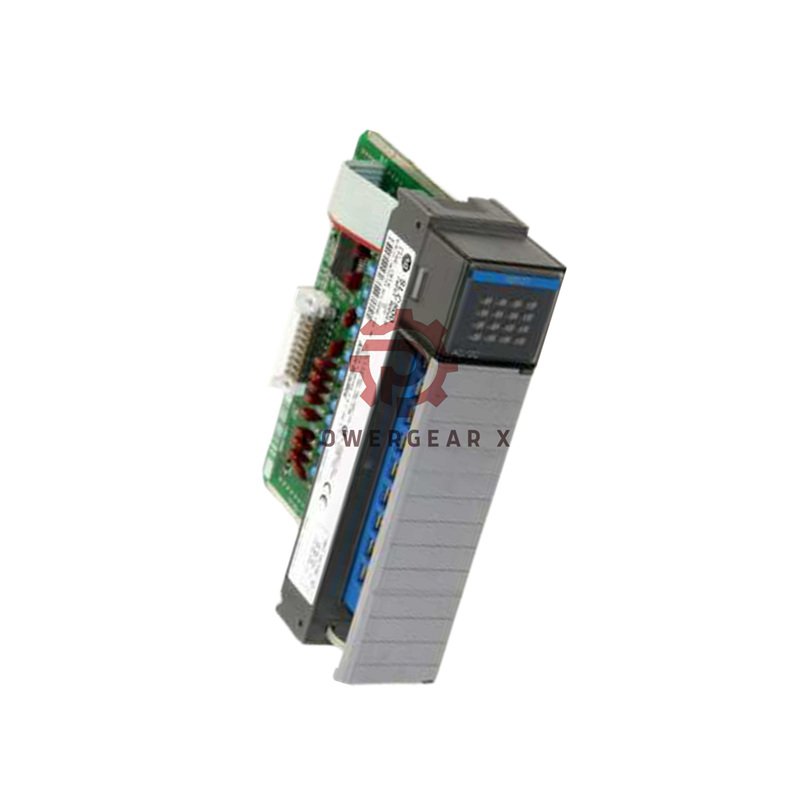

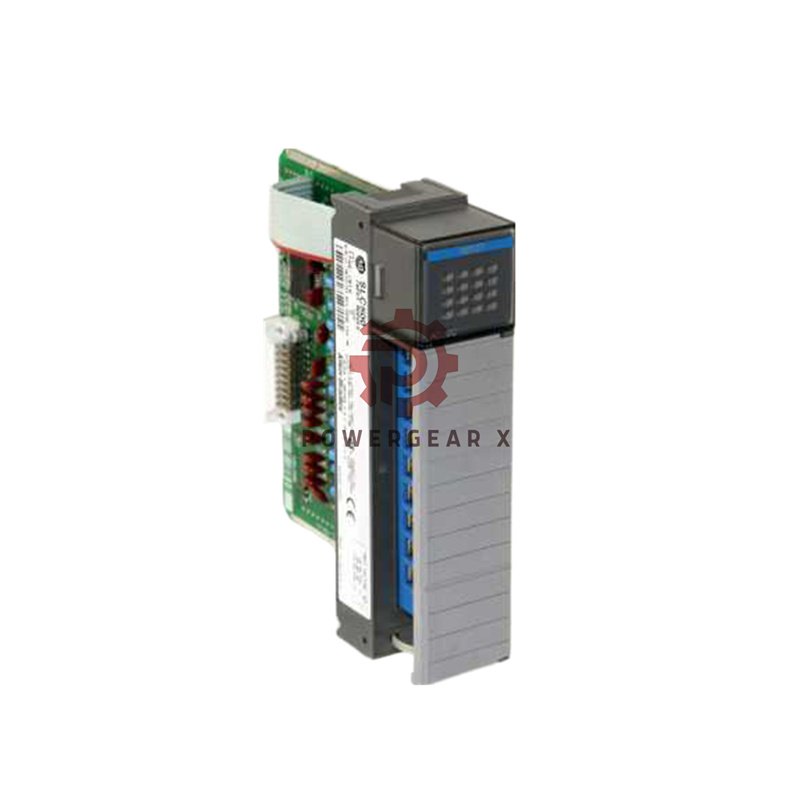

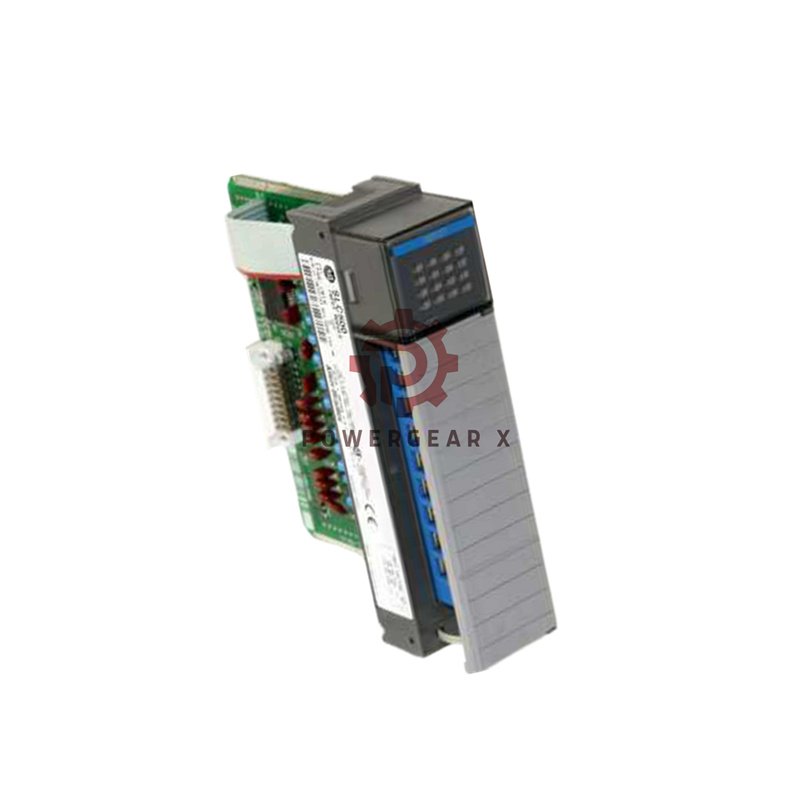

The Allen-Bradley 1746-IN16 delivers exceptional flexibility for your SLC 500 system. This 16-point input module handles both 24V AC and DC signals with equal reliability. Engineered for industrial durability, it features individual channel status indicators for instant visual feedback. The 1746-IN16 installs quickly in any chassis slot and provides seamless integration with your automation system.
Technical Specifications
- Manufacturer: Rockwell Automation
- Brand: Allen-Bradley
- Model Number: 1746-IN16
- Series: SLC 500
- Module Type: Digital Input
- Input Channels: 16 points
- Voltage Range: 10-30V DC / 10-30V AC
- Nominal Voltage: 24V DC/AC
- Input Current: 8 mA @ 24V
- Response Time DC: 15 milliseconds
- Response Time AC: 25 milliseconds
- Backplane Current: 85 mA @ 5V DC
- Power Consumption: 6 Watts
- Isolation Voltage: 1500V AC
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Storage Temperature: -40° to 85°C (-40° to 185°F)
- Relative Humidity: 5-95% non-condensing
- Vibration Resistance: 2.5G @ 10-500 Hz
- Shock Resistance: 30G operational
