Allen-Bradley 1746-IH16 SLC 500 DC Input Module | 16-Point | 125V

Allen-Bradley 1746-IH16 SLC 500 16-Point DC Input Module – Reliable & Hazardous Environment Approved

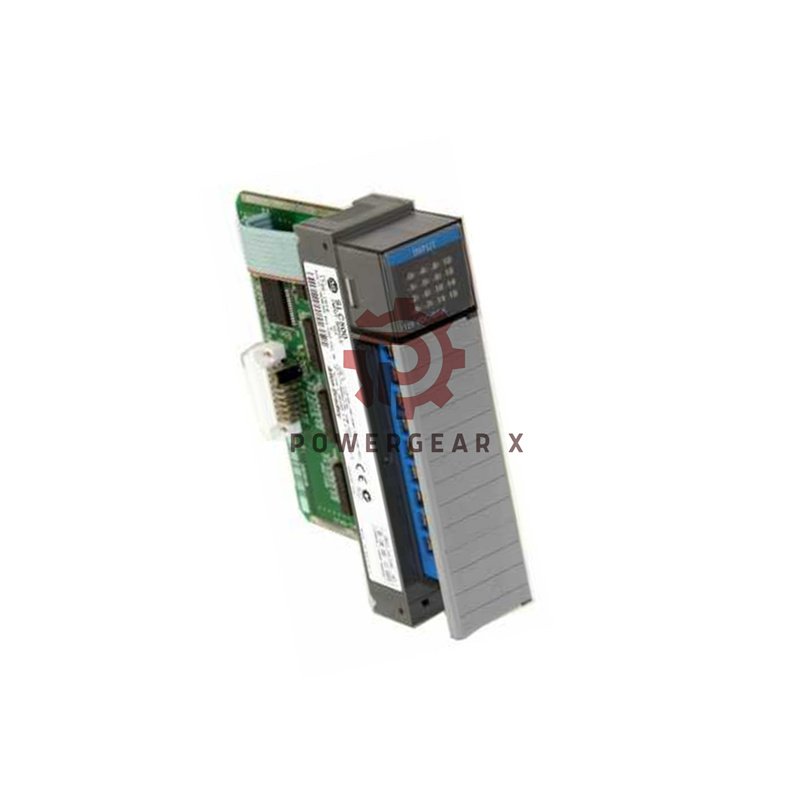

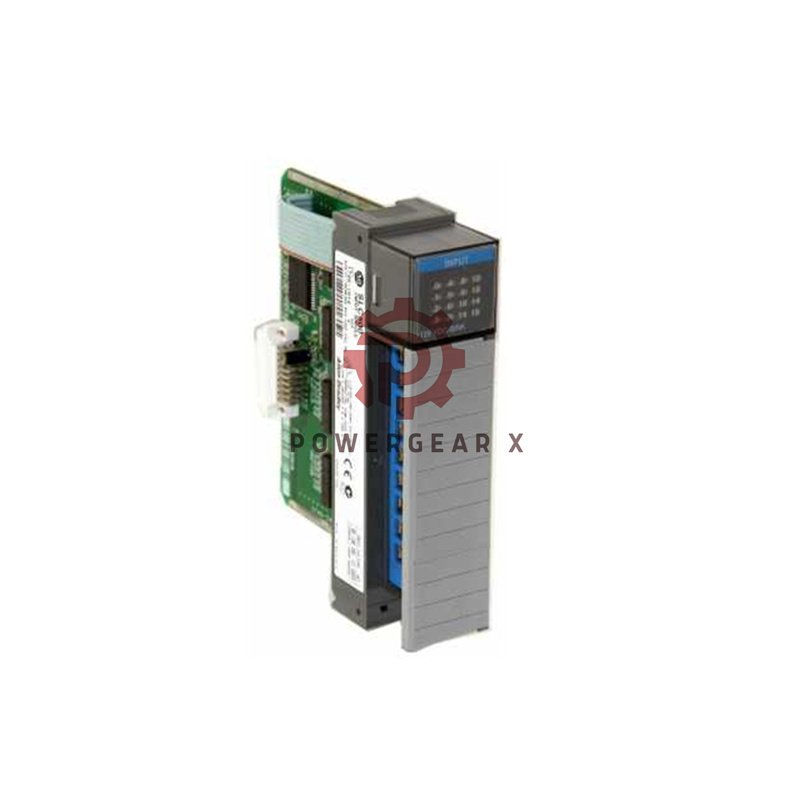

The 1746-IH16 is a 16-point DC input module from Allen-Bradley. It is part of the trusted SLC 500 series. This module works in tough industrial places. It is also safe for Class 1 Division 2 hazardous areas. It accepts 125V DC sinking signals. The module has strong noise immunity. It keeps a safe isolation between field devices and the controller. You can install and wire it easily.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-IH16
• Series: SLC 500
• Input Voltage: 90 – 146V DC
• Backplane Current: 85 mA @ 5V DC
• Power Dissipation: 5.17 Watts
• Signal Delay: 9 ms (On/Off)
• Off-State Current: 0.8 mA
• Isolation: Input to logic
• Certifications: C-UL, CSA

Packaging & Warranty

• One (1) 1746-IH16 Module
• One (1) Removable Terminal Block
• 12-month warranty
• Fast global shipping via FedEx, UPS, or DHL

Frequently Asked Questions (FAQ)

• How many inputs can be on at the same time?
  All 16 points at 125V DC, 14 points at 132V DC, 12 points at 146V DC.
• What is the input delay time?
  The signal delay is 9 milliseconds for both ON and OFF states.
• Is this module safe for hazardous areas?
  Yes. It is Class 1 Division 2 approved for Groups A, B, C, D.
