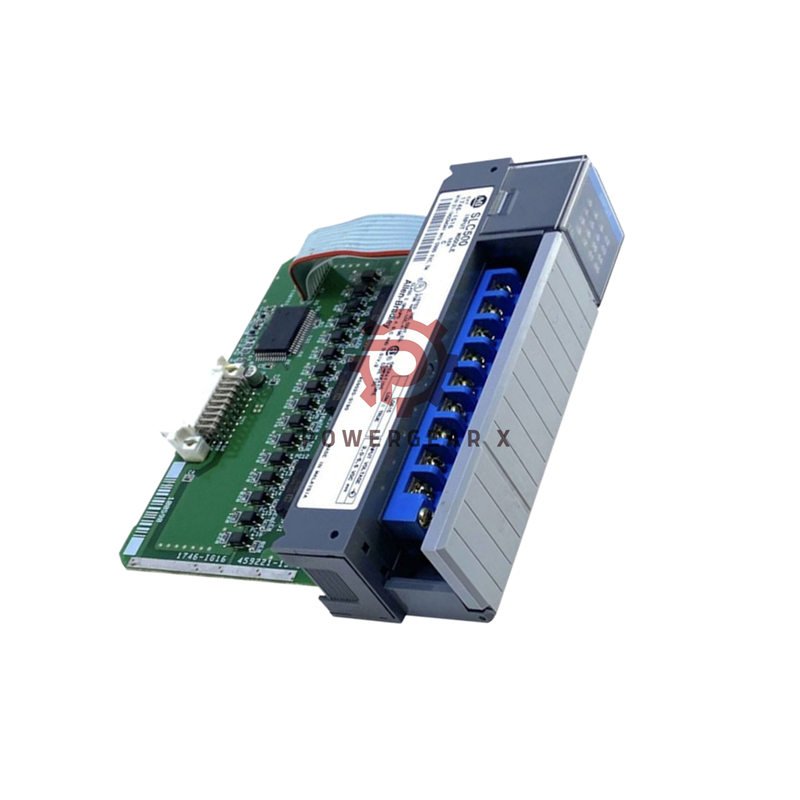

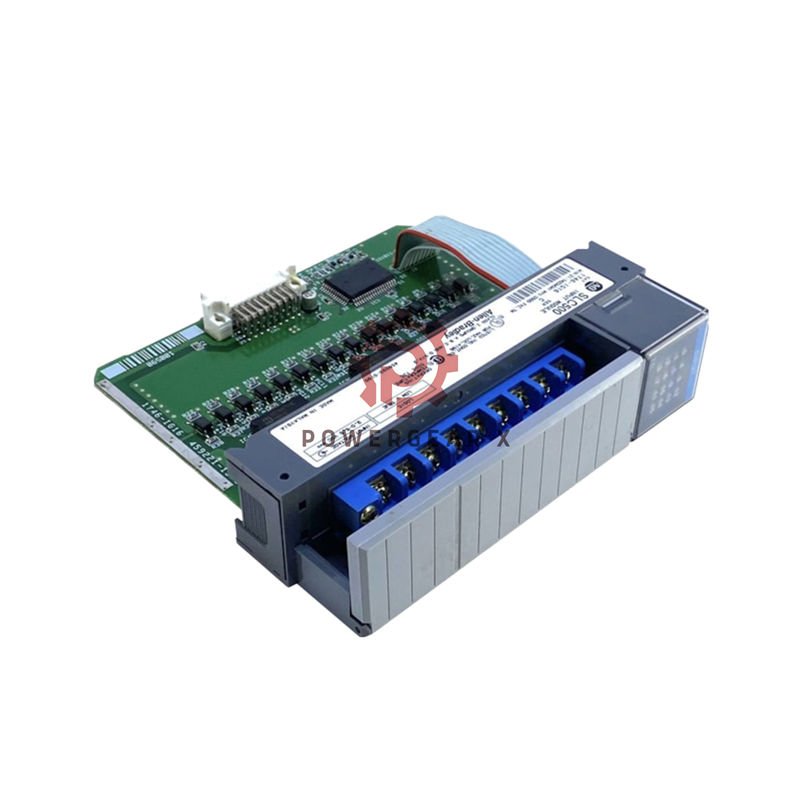

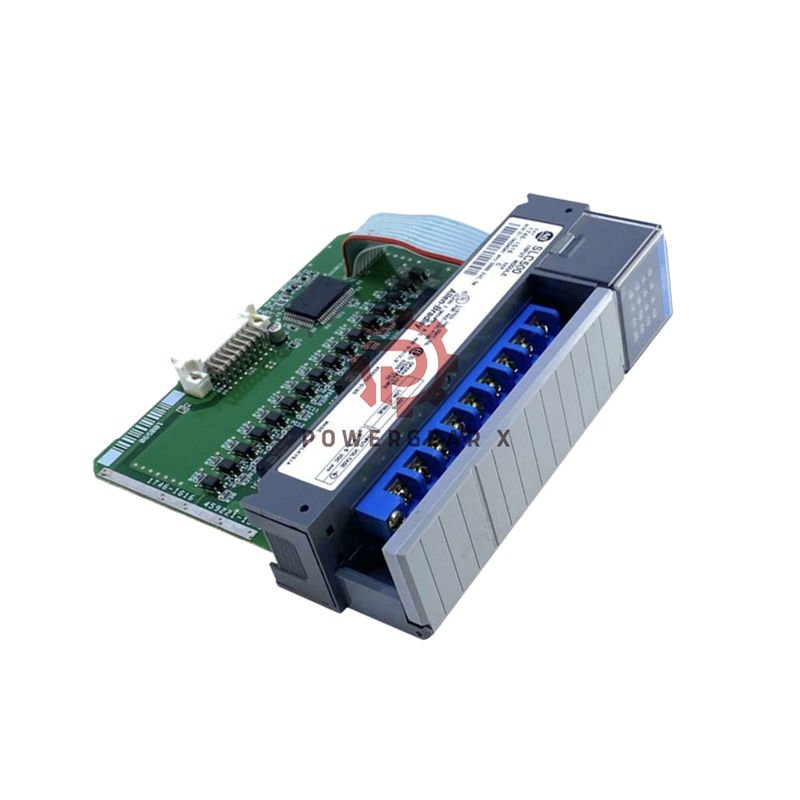

Product Overview: Allen-Bradley 1746-IB16
The Allen-Bradley 1746-IB16 is a 24VDC input module. It is part of the trusted SLC 500 series. This module connects your PLC to real-world devices. It has sixteen sinking input channels. It accepts a wide voltage range from 10 to 30VDC. This makes it very flexible for your factory floor. Use it with push buttons, sensors, and switches. The removable terminal block makes wiring easy. Status LEDs help you troubleshoot problems fast.
Key Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model: 1746-IB16
- Series: SLC 500
- Module Type: 24VDC Sinking Input
- Number of Inputs: 16
- Input Voltage: 24VDC Nominal
- Voltage Range: 10-30VDC
- Nominal Current: 8mA @ 24VDC
- Off-State Current: 1 mA max
- Signal Delay: 8 ms
- Backplane Current: 85 mA @ 5VDC
- Isolation: 1500V AC Optical
- Operating Temperature: 0 to 60 °C
- Certifications: UL, CSA, CE, Class I Div 2
- Warranty: 12 Months
