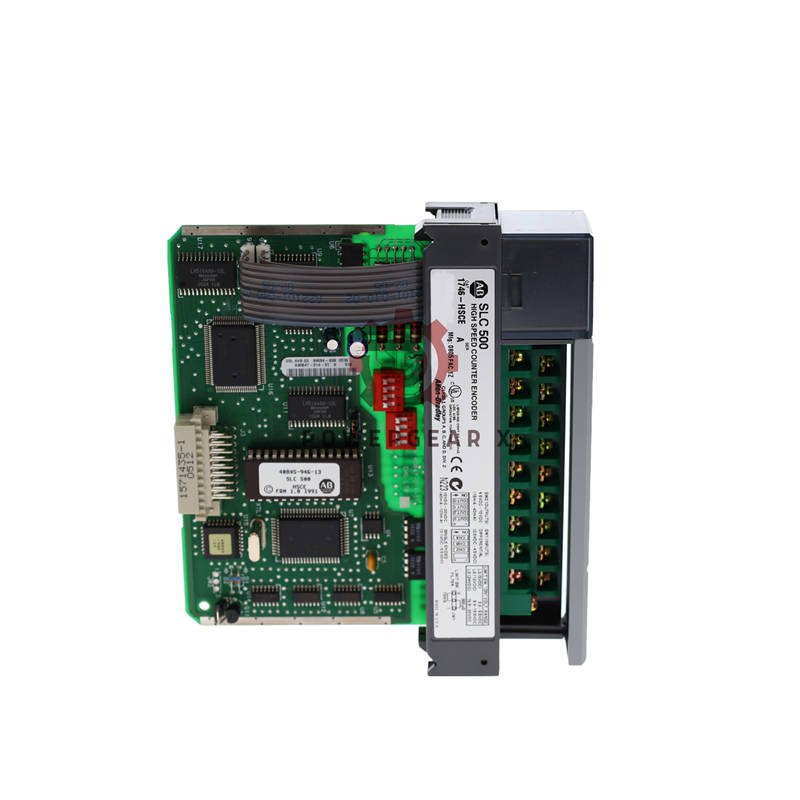

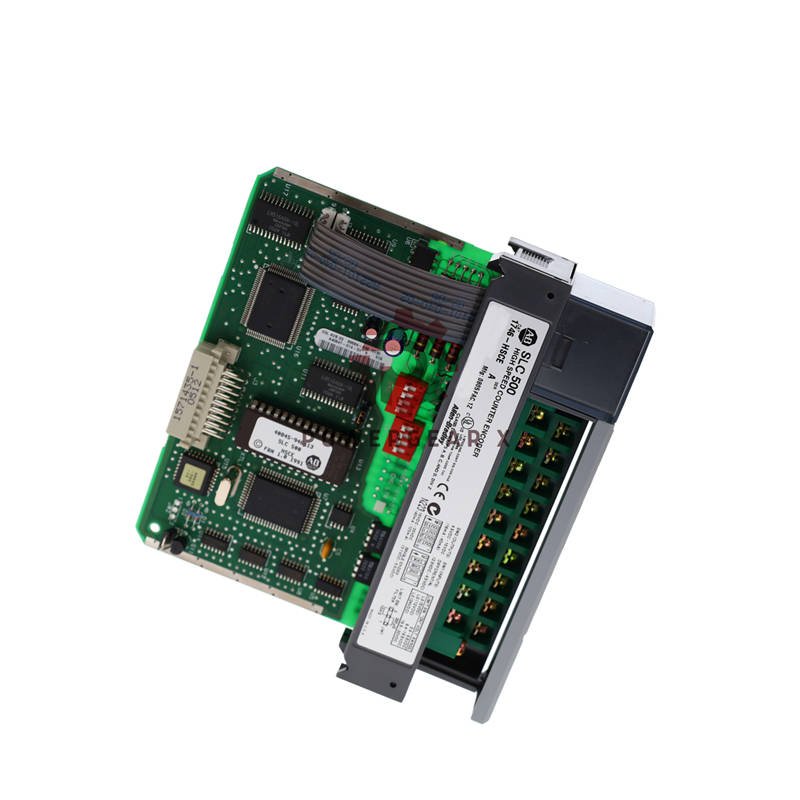

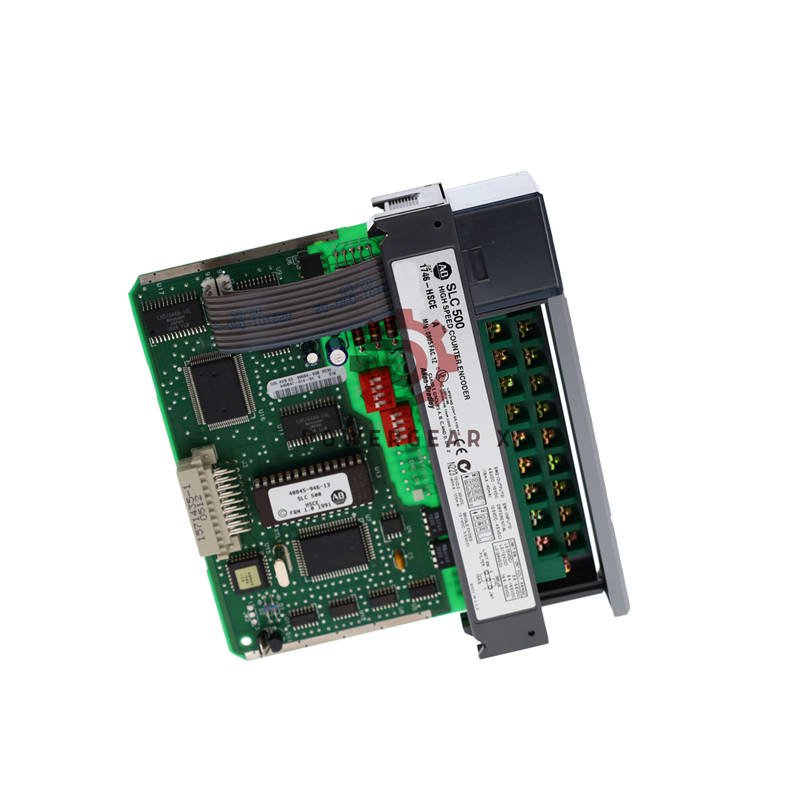

Allen-Bradley 1746-HSCE SLC 500 High-Speed Counter Module | 50kHz

Product Introduction

Boost your SLC 500 system with the Allen-Bradley 1746-HSCE. This high-speed counter module handles fast counting tasks with ease. It is perfect for factory and process automation. You can use it for motion control, totalizing, and more. Install it in any SLC 500 chassis locally or remotely. It offers reliable performance in tough industrial conditions.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1746-HSCE
• Series: SLC 500
• Module Type: High-Speed Counter
• Input Voltage: ±5V DC (Differential), 0-5V DC (Single-ended)
• Max Input Frequency: 50 kHz (Sequencer Mode), 32.767 kHz (Range/Rate Mode)
• Min Pulse Width: 10 µs
• Channels: 1 counting channel (A, B, Z)
• Outputs: 4 open-collector outputs
• On-State Current: 16 mA @ 4.5V DC, 40 mA @ 10V DC, 125 mA @ 30V DC
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Isolation Voltage: 1500 V
• Backplane Current: 320 mA @ 5V
• Update Time: 4.8 ms
