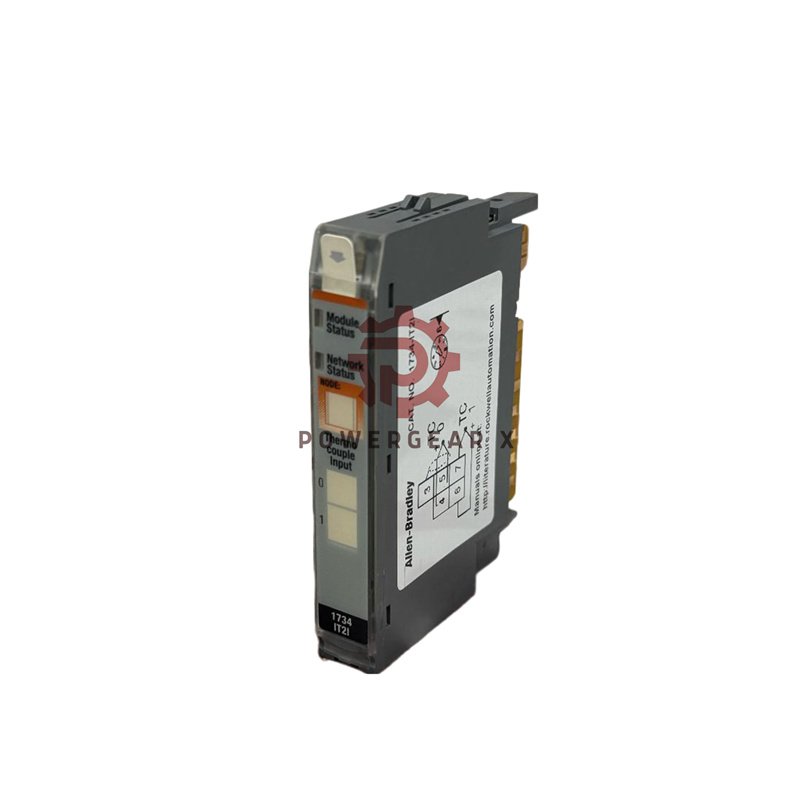

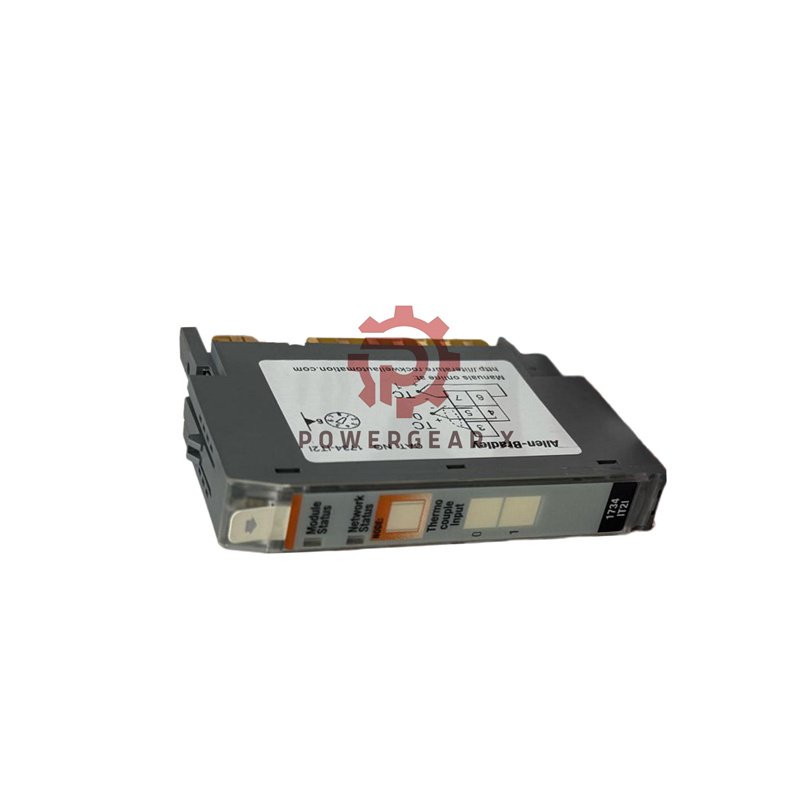

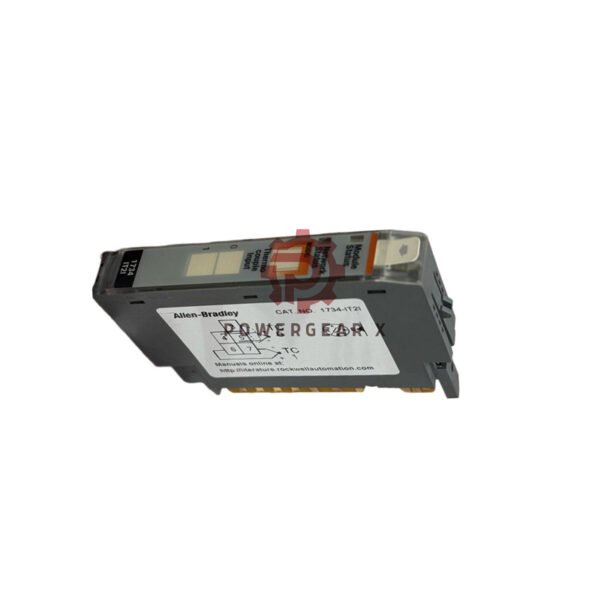

Allen-Bradley 1734-IT2I Temperature Input Module

The 1734-IT2I provides precise thermocouple temperature measurement for industrial applications. This Rockwell Automation module offers two isolated inputs with advanced diagnostics. It delivers reliable performance in demanding process environments.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1734-IT2I
• Input Type: 2 differential thermocouple inputs
• Input Range: ±75 mV
• Resolution: 15 bits (2.5 µV/count)
• Impedance: 100 kΩ
• Isolation: 50V continuous
• Power Consumption: 175 mA @5V DC
• Accuracy: ±0.1% full scale
• Operating Temperature: -20°C to 55°C
• Vibration Resistance: 5g @10-500 Hz
• Dimensions: 56 x 12 x 75.5 mm
• Weight: 36 grams

Package Contents & Shipping

• One 1734-IT2I temperature input module
• Installation and specification documentation
• Worldwide shipping via FedEx, UPS, or DHL

Frequently Asked Questions

• What thermocouple types does it support?
  It supports all standard thermocouple types with ±75 mV range.
• What is the measurement resolution?
  It provides 15-bit resolution with 2.5 microvolt per count sensitivity.
• Does it require external power?
  No, it draws power from the POINTBus connection.
• What diagnostic features are included?
  It offers open-wire detection and cold junction compensation monitoring.
• Which temperature scales are available?
  Celsius, Fahrenheit, Kelvin, and Rankine scales are supported.
