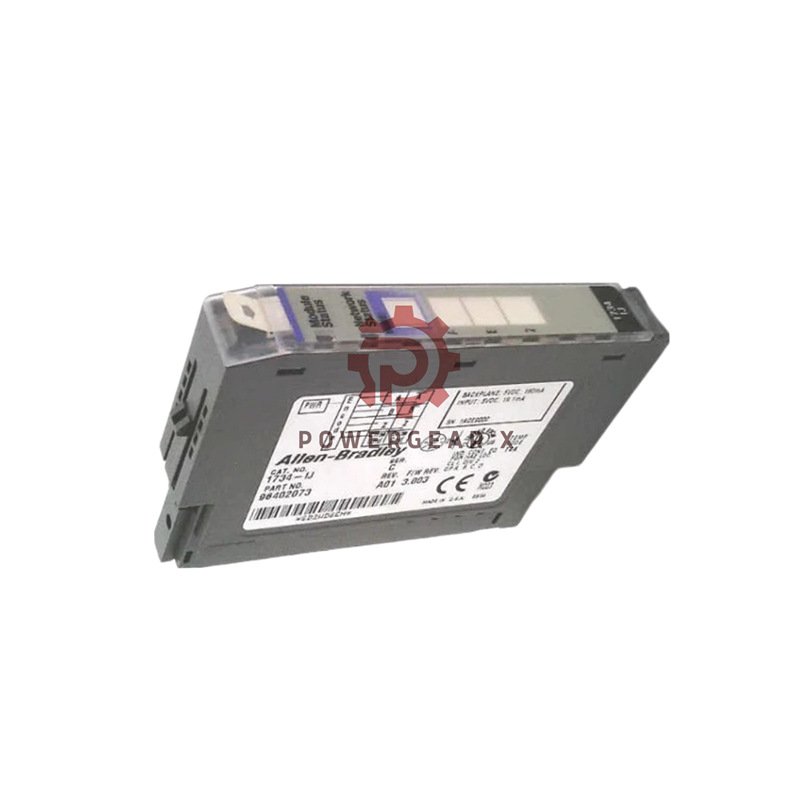

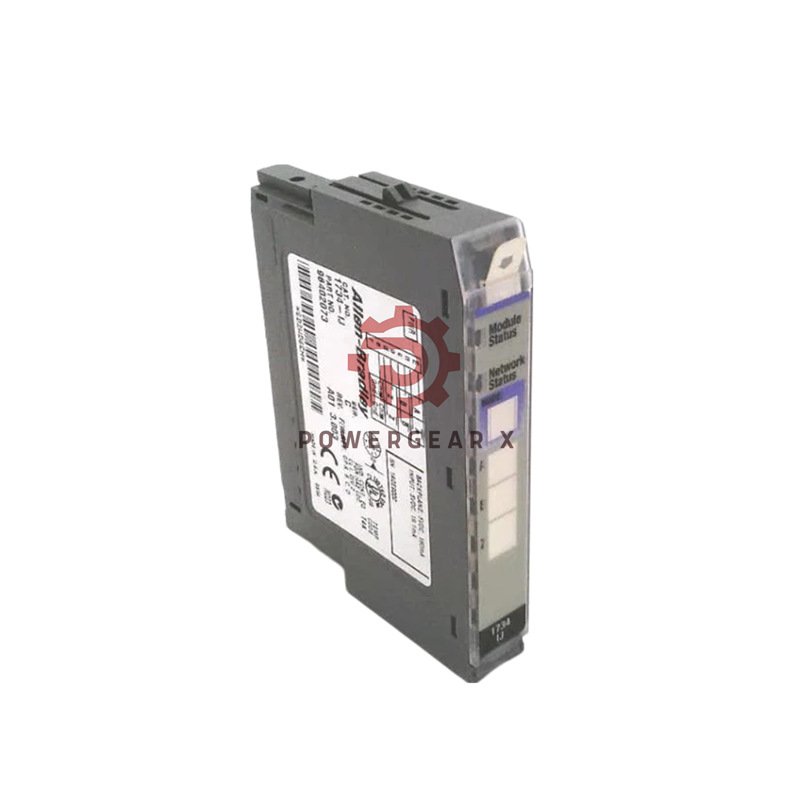

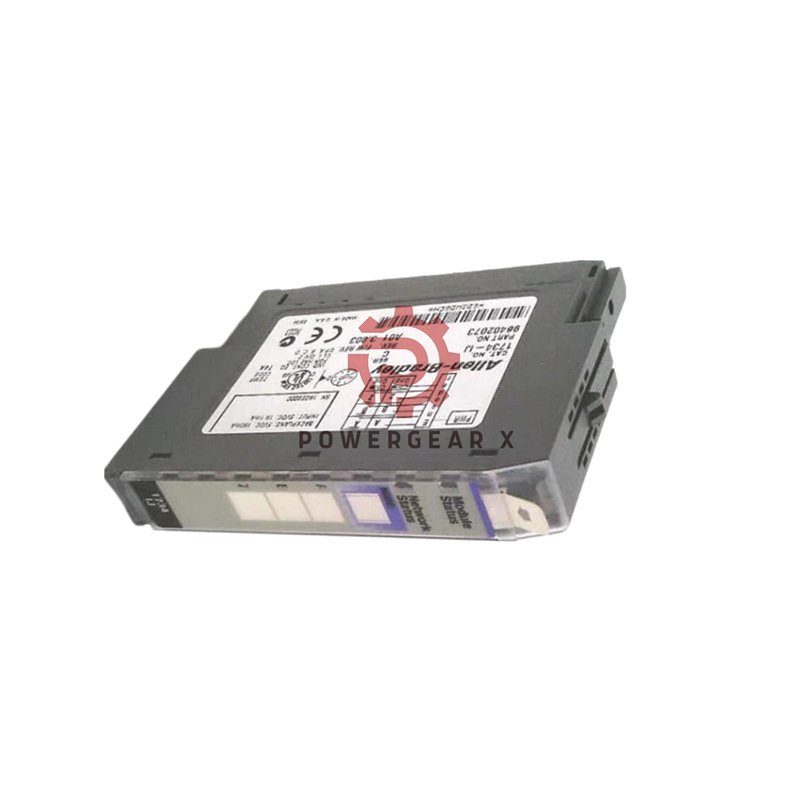

Allen-Bradley 1734-IJ Incremental Encoder Module

The Allen-Bradley 1734-IJ is a high-speed encoder interface module. It works with POINT I/O systems from Rockwell Automation. This module handles fast encoder signals up to 1 MHz frequency.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1734-IJ
• Series: POINT I/O 1734
• Module Type: Incremental Encoder Interface
• Input Frequency: 1 MHz, 500 kHz, 250 kHz
• Operating Voltage: 5V DC
• Isolation Voltage: 50V continuous
• Power Consumption: 1.1 Watts
• Input Channels: A, B, Z phases
• Counter Resolution: 24-bit (16,777,215 counts)
• Operating Temperature: -20 to 55°C (-4 to 131°F)
• Data Format: 6-10 bytes input, 1 byte output

Package Contents

• One 1734-IJ encoder module
• Installation documentation
• Mounting hardware
• Terminal connectors

Shipping & Support

• Worldwide shipping via FedEx, UPS, DHL
• 12-month warranty
• Quick order processing

Frequently Asked Questions

• What maximum frequency can it handle?
  It supports up to 1 MHz input frequency.
• What voltage does it require?
  It operates on 5V DC power supply.
• How many counter bits does it have?
  It features a 24-bit counter resolution.
• What do the status indicators show?
  They show module, network, and A/B/Z input status.
• Is external isolation needed?
  No, it has built-in 50V continuous isolation.
