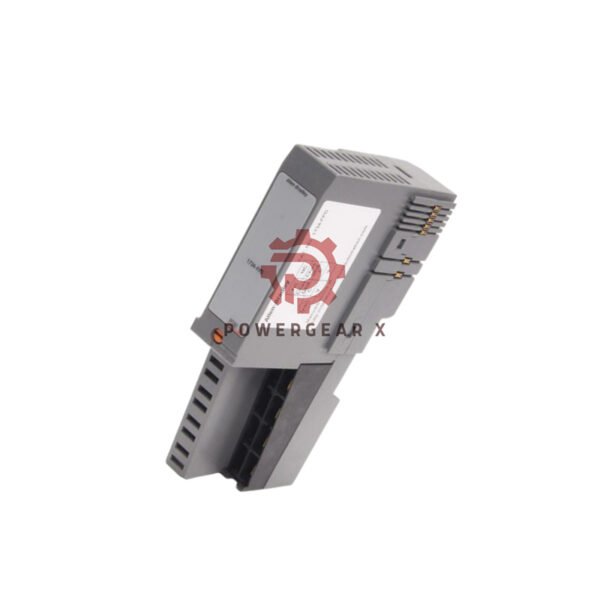

Allen-Bradley 1734-FPD POINT I/O Field Power Distributor

Allen-Bradley 1734-FPD POINT I/O Field Power Distributor

The Allen-Bradley 1734-FPD efficiently distributes field-side power for your automation system. This versatile module works with both AC and DC power sources. It helps organize your power distribution neatly.

Detailed Technical Specifications

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Series: POINT I/O
• Model Number: 1734-FPD
• Input Voltage: 12/24V DC or 120/240V AC
• Working Voltage Range: 10-28.8V DC or 120-240V AC
• Output Current: 10 amps maximum
• Isolation Voltage: 250V continuous
• Isolation Test: 2600V DC for 60 seconds
• Operating Temperature: -20 to 55°C (-4 to 131°F)
• Terminal Torque: 0.6 Nm (7 lb-in)
• Wire Size: 0.25-2.5 mm² (22-14 AWG)
• Dimensions: 76.2 x 25.4 x 133.4 mm
• Weight: 0.12 kg

Compatible Networks

• EtherNet/IP connectivity
• DeviceNet network support
• ControlNet compatibility
• Other open networks using 1734 adapters

Frequently Asked Questions

• Can I use solid copper wire with this unit?
  Yes, it accepts both stranded and solid copper wire.
• What networks does this distributor support?
  It works with EtherNet/IP, DeviceNet, and ControlNet.
• What is the operating temperature range?
  It operates from -20°C to 55°C (-4°F to 131°F).
• Can I mount this unit in any orientation?
  Yes, it supports both horizontal and vertical mounting.
• What warranty comes with this product?
  It includes a 12-month manufacturer warranty.
