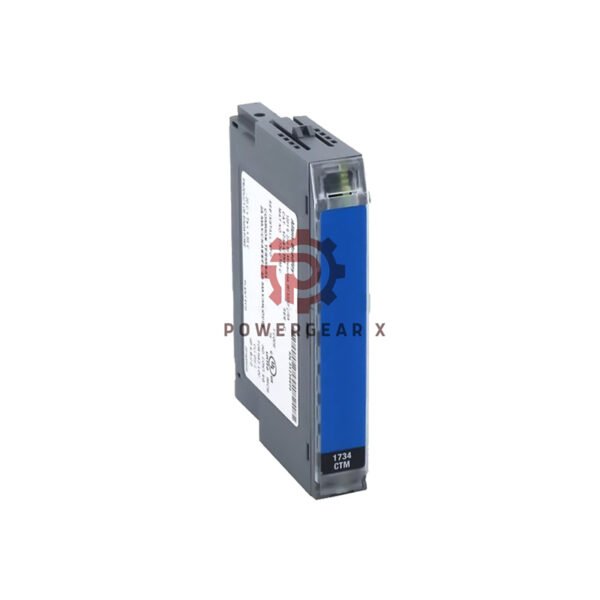

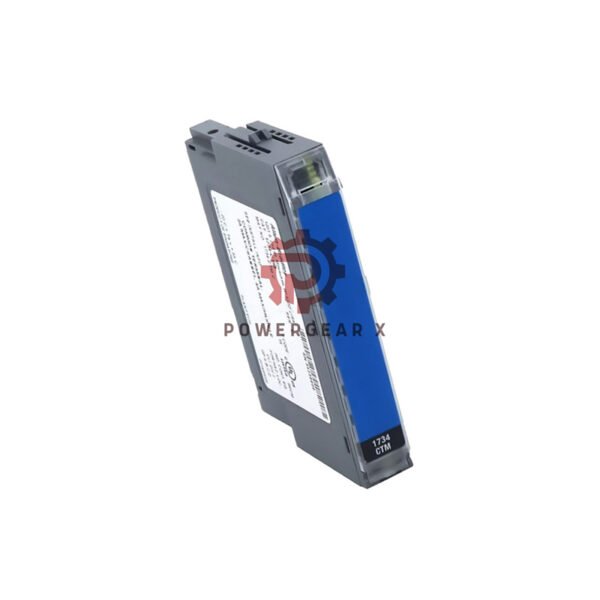

Allen-Bradley 1734-CTM POINT I/O Terminal Module

Allen-Bradley 1734-CTM POINT I/O Common Terminal Module

The Allen-Bradley 1734-CTM Common Terminal Module expands the termination capability of POINT I/O systems. This module offers reliable performance and easy integration. It supports higher-density modules and simplifies wiring for field devices. You can use it as an external connection for three-wire devices. The 1734-CTM ensures safe operation in various industrial environments.

Technical Specifications

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Model: 1734-CTM (Complete Suffix Information: 1734-CTM)
• Series: POINT I/O
• Isolation Voltage: 250 Volts Continuous
• Field Power Supply: 10-28.8V DC or 120-240V AC
• Field Power Supply Current: 4 Amps/Module
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Relative Humidity: 5% to 95% (Non-Condensing)
• Certification: C-UL-US, UL Listed for Class I Division 2 Groups A,B,C,D

Key Features

• Provides 8-channel higher-density module support
• Works with 1734-TOP, 1734-TOPS, 1734-TB, and 1734-TBS terminal bases
• Ensures secure connections for three-wire field devices
• Offers high isolation voltage tested at 1600 Vrms for 60 seconds
• Supports wide power supply ranges for flexible application

Packaging Details

• 1 x Allen-Bradley 1734-CTM Terminal Module
• Shipping via FedEx, UPS, or DHL

Frequently Asked Questions

• What bases support the 1734-CTM module?
  It works with 1734-TOP, 1734-TOPS, 1734-TB, and 1734-TBS bases.
• What power supplies does it accept?
  It supports 10-28.8V DC or 120-240V AC power inputs.
• Is this module suitable for hazardous locations?
  Yes, it carries UL listing for Class I Division 2 Groups A,B,C,D.
