Name: Allen-Bradley 150-F480NBD AC Drive 400HP 3-Phase Motor Controller
SKU: 150-F480NBD
Availability: InStock

Allen-Bradley 150-F480NBD AC Drive 400HP 3-Phase Motor Controller

Rated 0 out of 5

0 Reviews

14 in stock

The 150-F480NBD is an Allen-Bradley SMC Flex smart motor controller, 480A output, 400 HP, 200–460V AC, with soft start, braking modes, communication support, and IP open enclosure.

100% genuine products in stock with fast delivery.
30-day return policy for quality assurance.
12-month warranty for peace of mind.

Product details

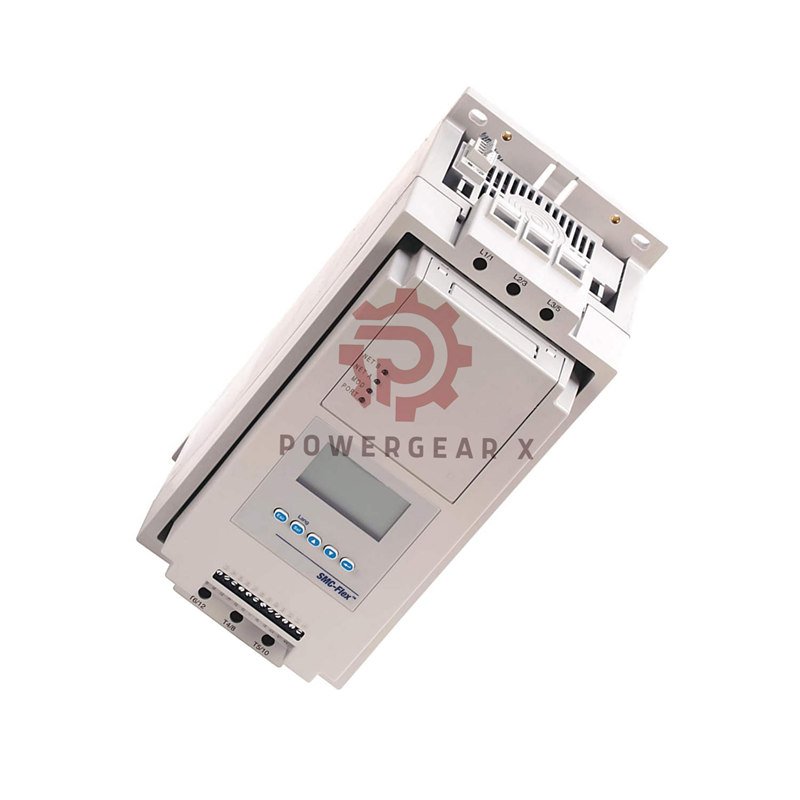

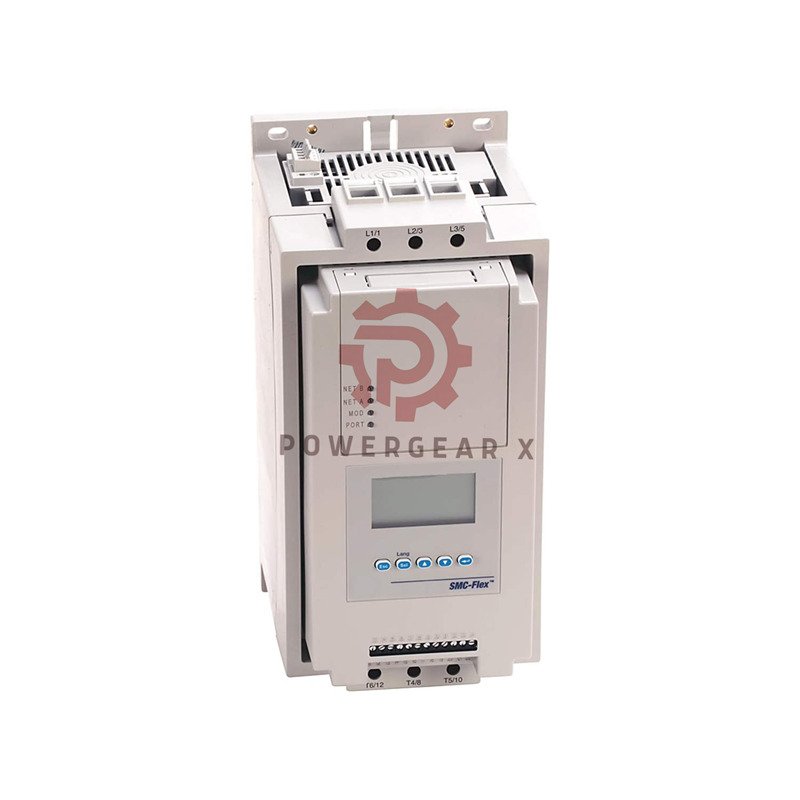

Allen-Bradley 150-F480NBD SMC Flex Smart Motor Controller

Author: Powergear X Automation. The 150-F480NBD is a high-performance SMC Flex smart motor controller for 3-phase AC motors, designed to optimize energy use and motor protection.

Core Features

Line voltage: 200–460V AC, 3-phase, 50/60 Hz
Control voltage: 100–240V AC for 5–480A units
Maximum output current: 480 A
Output power: 400 HP at 460V AC
Operational modes: Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-Rest, Preset Slow Speed, Linear Speed Acceleration, Soft Stop, Pump Stop
Auxiliary contacts: 4 fully programmable (N.O./N.C.)
Communications: DPI for optional Human Interface and network connection
Metering: Amps, volts, kW, kWh, MW, MWH, power factor, motor thermal capacity, elapsed time
Protection & diagnostics: Power loss, line fault, voltage unbalance, excessive starts, phase reversal, over/under voltage, controller temp, stall, jam, open gate, overload, underload, communication fault
Enclosure: Open type
12-month warranty, shipping via FedEx, UPS, DHL

Technical Advantages

Advanced motor protection with smart start/stop modes
High-power output up to 400 HP for industrial motors
Flexible communication options including DF1, Profibus DP, ControlNet, MODBUS TCP, DeviceNet, Ethernet I/P
Optional Human Interface Module (HIM) for easy monitoring
Energy efficiency and reduced motor wear with programmable ramps

Professional FAQ

Q: Can this controller handle continuous 480A output?
A: Yes, it operates at full rated current with proper ventilation and installation.
Q: What motor types can it control?
A: It controls standard 3-phase AC motors with soft start and braking modes.
Q: How do I connect the communication module?
A: Install DPI module and select compatible network such as Ethernet I/P or DeviceNet.
Q: Can it protect against overload and phase reversal?
A: Yes, it features extensive protection and diagnostics for safe operation.
Q: How to monitor motor parameters?
A: Use auxiliary contacts or optional Human Interface Module for real-time metering.

Installation & Shipping

Mount in a dry, ventilated location suitable for open type enclosure.
Connect line voltage 200–460V AC, 3-phase, 50/60 Hz and control voltage 100–240V AC.
Integrate communication and optional HIM as needed.
Ships with 12-month warranty via FedEx, UPS, DHL.
