Product details

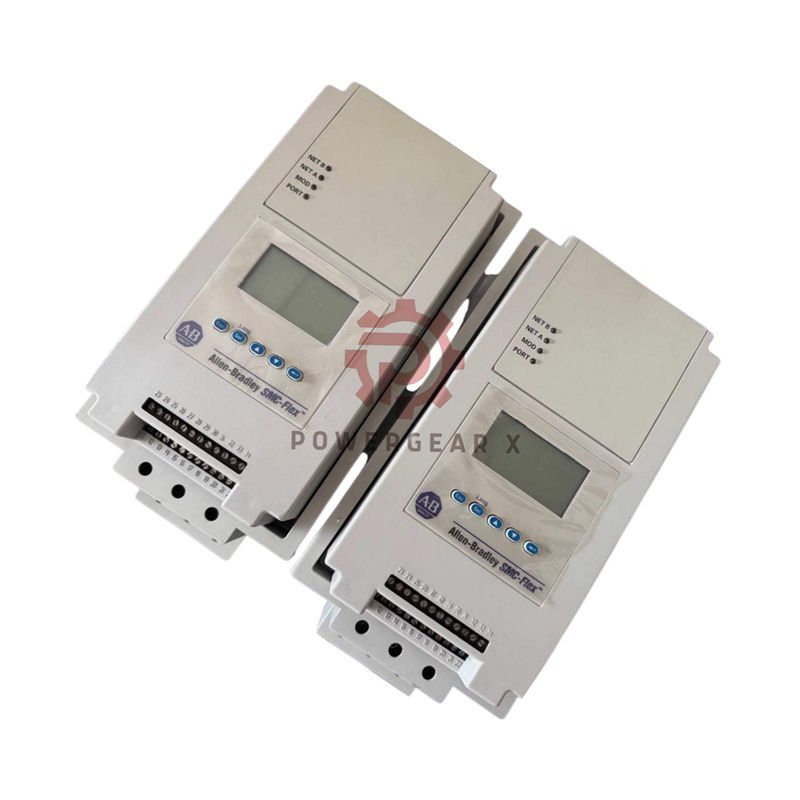

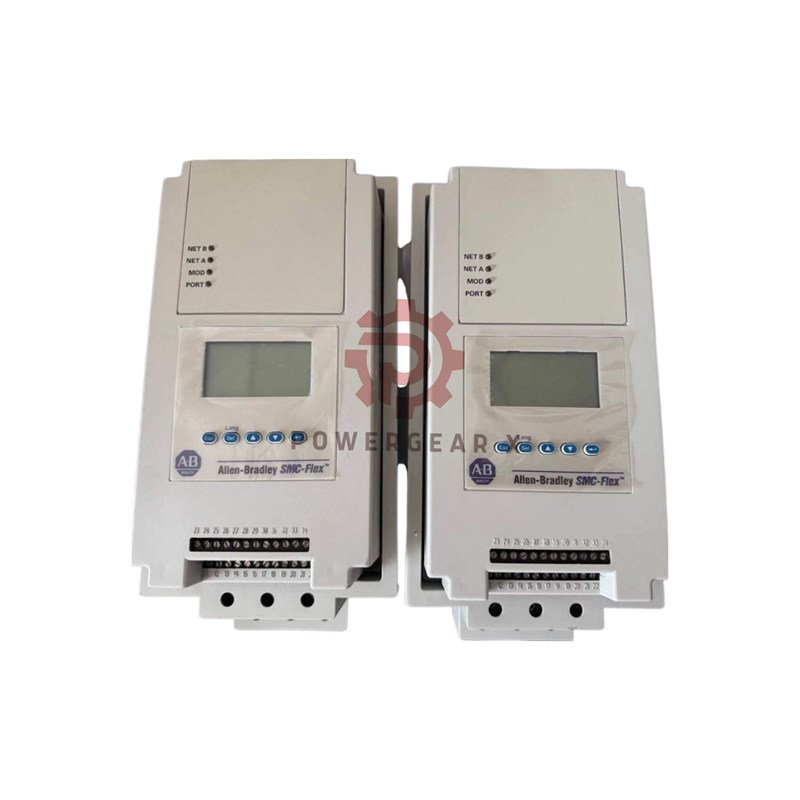

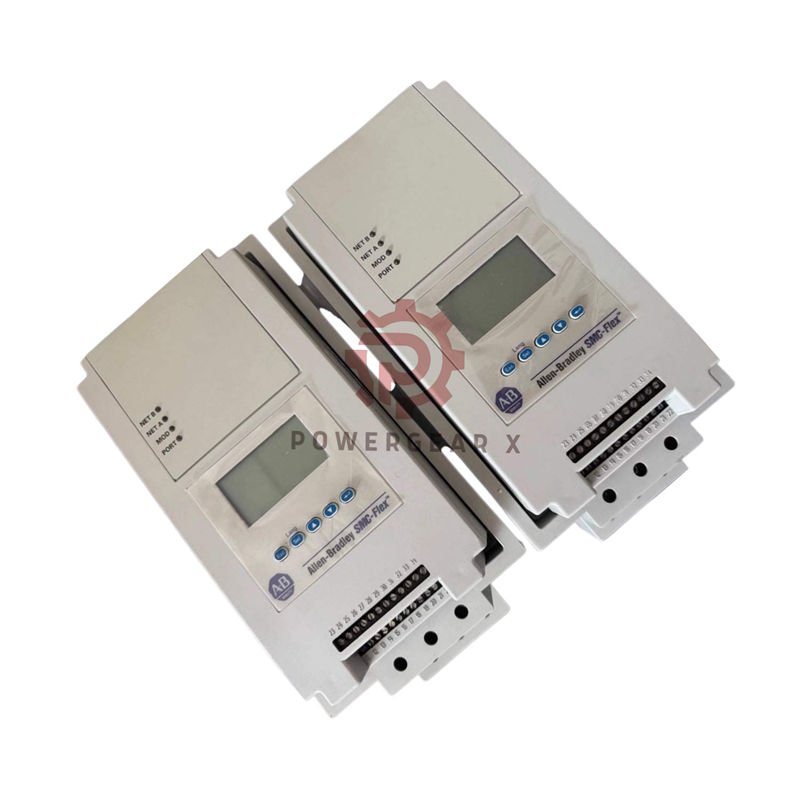

Allen-Bradley 150-F43NCD Smart Motor Controller
The 150-F43NCD controls motors smoothly and protects them. This soft starter is perfect for heavy-duty machines. It reduces start-up stress and saves energy.
Key Product Details
- Brand & Model: Allen-Bradley 150-F43NCD
- Product Line: SMC-Flex Solid State Controller
- Rated Current: 43 Amps
- Horsepower: Up to 30 HP at 460V AC
- Input Voltage: 200-575V AC, 3-Phase
- Frequency: 50/60 Hz
- Control Voltage: 100-240V AC
Top Features & Benefits
- Built-in Display: Easy-to-read LCD with keypad for setup.
- Nine Start/Stop Modes: Includes soft start and soft stop.
- Three Slow-Speed Modes: For precise control needs.
- Integrated Bypass: Improves reliability and reduces heat.
- Pump & Brake Control: Standard options for many applications.
- Advanced Diagnostics: Monitors system health and prevents faults.
Complete Technical Specifications
- Enclosure Type: Open
- Motor Current Range: 14.9 to 74 Amps
- HP at 50Hz: 45 HP | HP at 60Hz: 60 HP
- Voltage Tolerance: +/- 10%
- Rated Voltage: 500/575V AC
- Product Weight: 20.00 lbs (9.07 kg)
What’s in the Box?
- One Allen-Bradley 150-F43NCD Controller Unit.
- Required User Manual and Installation Guide.
- All necessary mounting hardware.
Shipping & Warranty
- We ship worldwide using FedEx, UPS, and DHL.
- Track your order online with the provided number.
- This product comes with a 12-month warranty.
Expert FAQs
What is the main advantage of this SMC-Flex controller?
It combines a soft starter, bypass, and protector in one unit. This saves panel space and wiring time.
Can I use it for a bandsaw or compressor?
Yes, it is ideal for bandsaws and compressors. It minimizes starting shock and provides quick stop functions.
How do the slow-speed modes work?
They allow the motor to run at a reduced, steady speed. This is useful for setup, testing, or slow process cycles.
What does the integrated bypass do?
After the motor starts, it redirects current away from the SCRs. This lowers heat and increases component life.
How do I change settings on the controller?
Use the built-in keypad and LCD screen. You can adjust start mode, current limit, and other parameters easily.
Need more help? Contact our automation experts for support.
