Product details
Product Overview

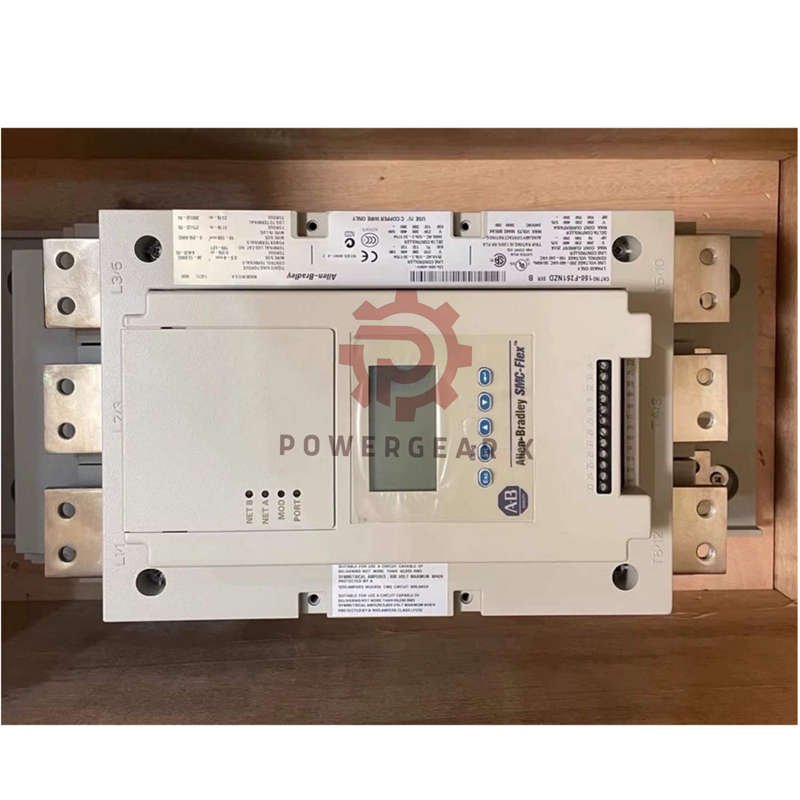

- The 150-F25NBD is an Allen-Bradley SMC-Flex smart motor controller for three-phase motors.
- This unit delivers soft start, soft stop, current limit, and full voltage control.
- The controller reduces electrical stress and improves overall motor service life.
Core Technical Specifications
- Brand: Allen-Bradley | Model: 150-F25NBD | Series: SMC-Flex
- Rated Current Output: 25 A for stable motor operation.
- Rated Power: 15 HP at 460VAC line connection.
- Rated Power: 30 HP at 460VAC delta connection.
- Input Line Voltage: 200–460 VAC, three-phase, 50/60 Hz.
- Control Voltage: 120 / 240 VAC for control circuitry.
- Enclosure Type: Open for panel mounting.
Motor Protection and Monitoring
- The 150-F25NBD provides programmable overload and short-circuit protection.
- Integrated monitoring tracks voltage, current, power usage, and motor runtime.
- Four auxiliary contacts support speed, alarm, fault, or bypass signaling.
Configuration and User Interface
- Operators configure parameters using the built-in keypad with five control buttons.
- The controller supports handheld and door-mounted Human Interface Modules.
- Local configuration eliminates the need for external software.
Installation Guidelines
- Mount the controller in a ventilated enclosure to ensure proper heat dissipation.
- Confirm line voltage, control voltage, and motor wiring before startup.
- Apply proper grounding to reduce electrical noise and interference.
Packaging and Shipping
- The package includes one Allen-Bradley 150-F25NBD smart motor controller.
- Shipments use FedEx, UPS, or DHL logistics services.
- Industrial-grade packaging protects the unit during transportation.
Frequently Asked Questions
- Which applications commonly use this controller?
- Pumps, fans, compressors, and conveyors frequently use this model.
- How does soft starting benefit motor systems?
- Soft starting reduces mechanical shock and electrical inrush current.
- Can the controller support system expansion?
- Auxiliary contacts allow flexible control and future integration.
Model Comparison
- 150-F251NBD – Higher current option within the SMC-Flex series.
- 150-F317NBD – Suitable for larger motor loads and heavy-duty systems.
