Product details
Product Overview

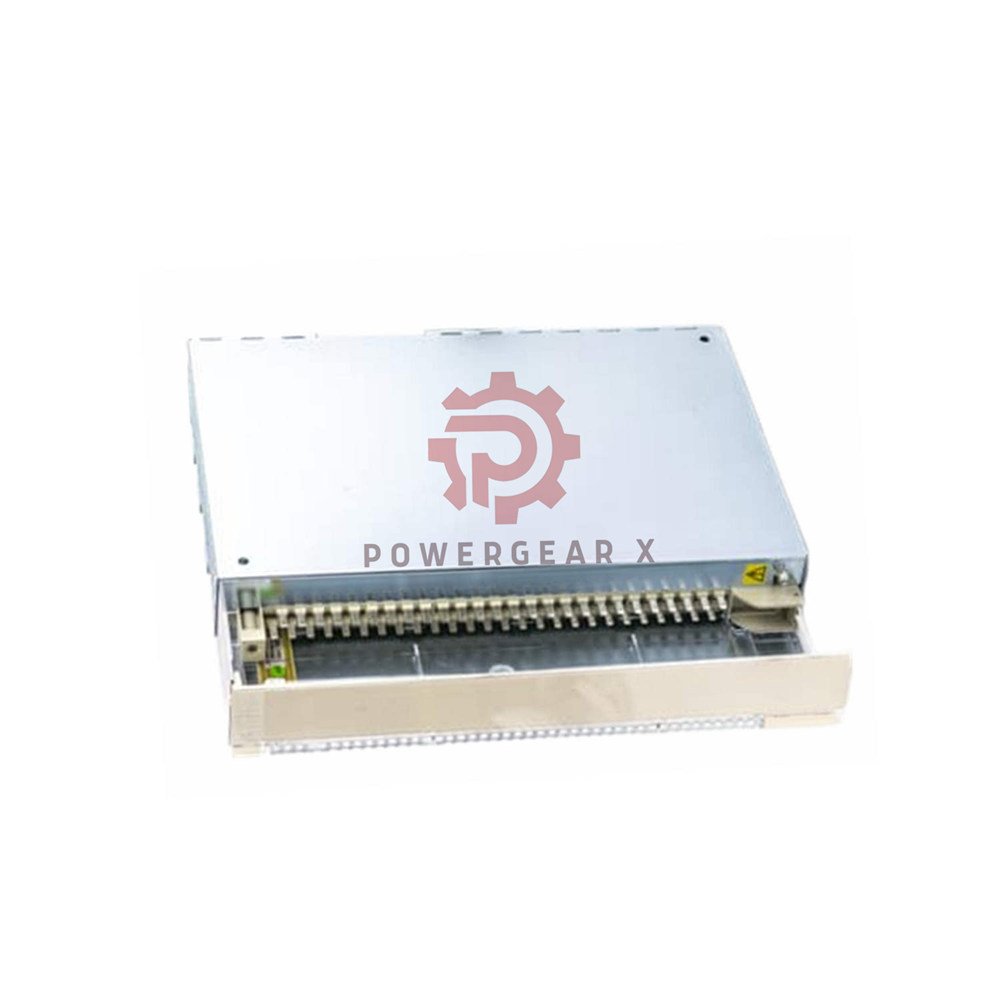

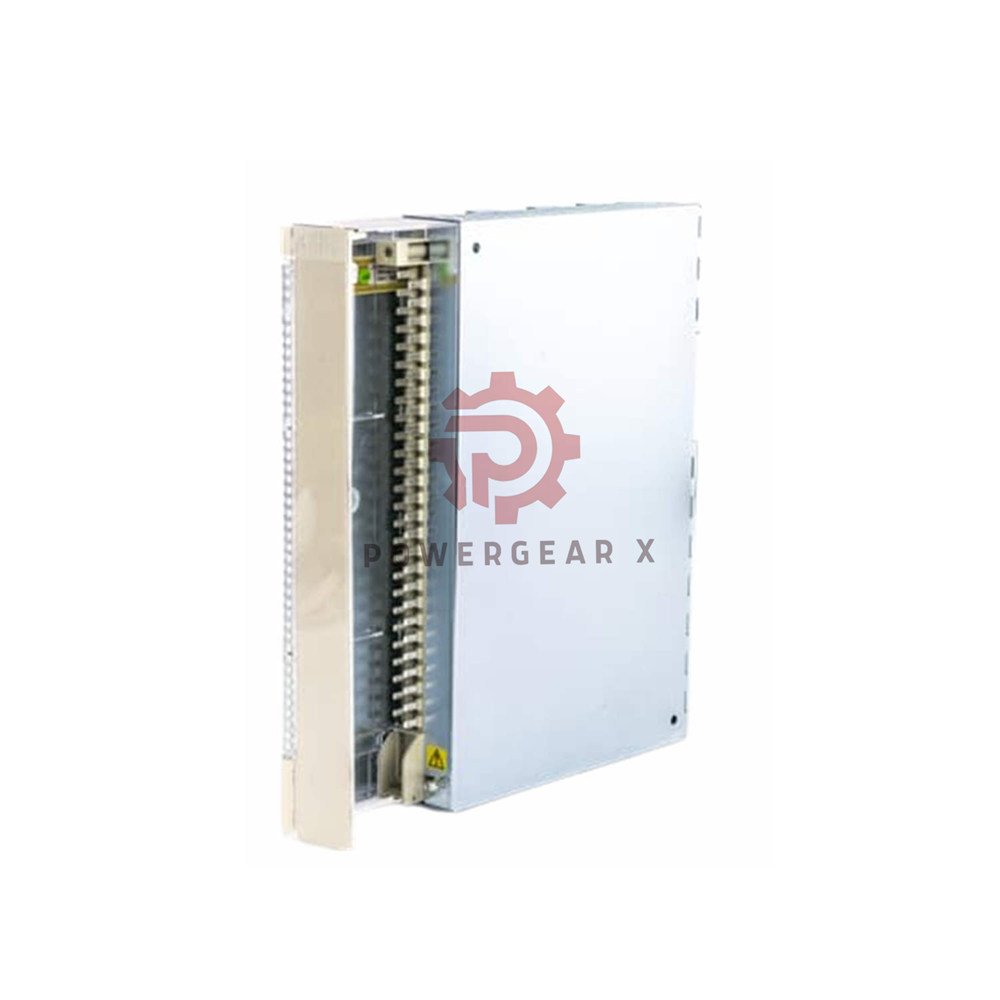

ABB AI620 3BHT300005R1 is an analog input module with 16 channels and 12 bit resolution. It provides 32 input channels for industrial automation systems. Designed for reliable signal acquisition in control applications. Compact size fits standard I/O racks. RoHS compliant and environmentally certified.
Model Structure & Key Features
- AI620 – Analog Input Module Series
- 16 analog input channels for process signals
- 12 bit resolution for accurate measurement
- 32 total input channels available
- Channel type AI analog input only
- Industrial I/O module for control systems
- RoHS compliant EU Directive 2011/65/EU
- WEEE category 5 small equipment
- No batteries contained
Technical Specifications
- Brand ABB
- Model AI620 (3BHT300005R1)
- Type Analog Input Module – 16Ch 12 bit
- ABB Type Designation AI620
- Product Type I-O Module
- Channel Type AI (Analog Input)
- Number of Input Channels 32
- Resolution 12 bit
- HS Code 853890
- Customs Tariff Number 85389091
- Dimensions (HxWxD) 273 x 40 x 252 mm
- Product Net Weight 1.28 kg
Environmental & Compliance
- RoHS compliance Following EU Directive 2011/65/EU
- WEEE category 5 – Small Equipment (No External Dimension More Than 50 cm)
- Number of batteries 0
- SCIP number 36c1d0aa-2e63-415e-925b-ee3c660bd05d Sweden
Mounting & Installation
- System compatibility ABB industrial I/O systems
- Mounting type Standard I/O rack mounting
- Space requirement 40 mm width per module
- Connection Field wiring via termination units
- Configuration Software configurable input settings
Package & Shipping
- Included AI620 analog input module
- Warranty 12 months against defects
- Express shipping FedEx, UPS, DHL – 2-5 business days
- Order processing Within 24 hours for stock items
Frequently Asked Questions
- Q: How many input channels does AI620 actually have?
The catalog specifies 16 channels, but technical data shows 32 input channels. AI620 provides 16 analog input channels with 12 bit resolution. - Q: What is the resolution of AI620 analog inputs?
AI620 has 12 bit resolution. This provides 4096 steps for accurate signal measurement in industrial applications. - Q: Is AI620 RoHS compliant?
Yes. AI620 follows EU Directive 2011/65/EU for RoHS compliance. It meets environmental standards for hazardous substances. - Q: What is the physical size of AI620 module?
Dimensions are 273 mm height, 40 mm width, and 252 mm depth. Weight is 1.28 kg. Compact for panel mounting. - Q: Does AI620 contain any batteries?
No. AI620 has zero batteries. It is maintenance-free and meets WEEE category 5 for small equipment disposal. - Selection tip: Choose AI620 when you need 16 channels of 12 bit analog input in a compact form factor. Ideal for medium-resolution process monitoring.
- Experience note: For best accuracy, use shielded twisted pair wiring and avoid running analog signals near high-power cables. Proper grounding reduces noise.
