Product details

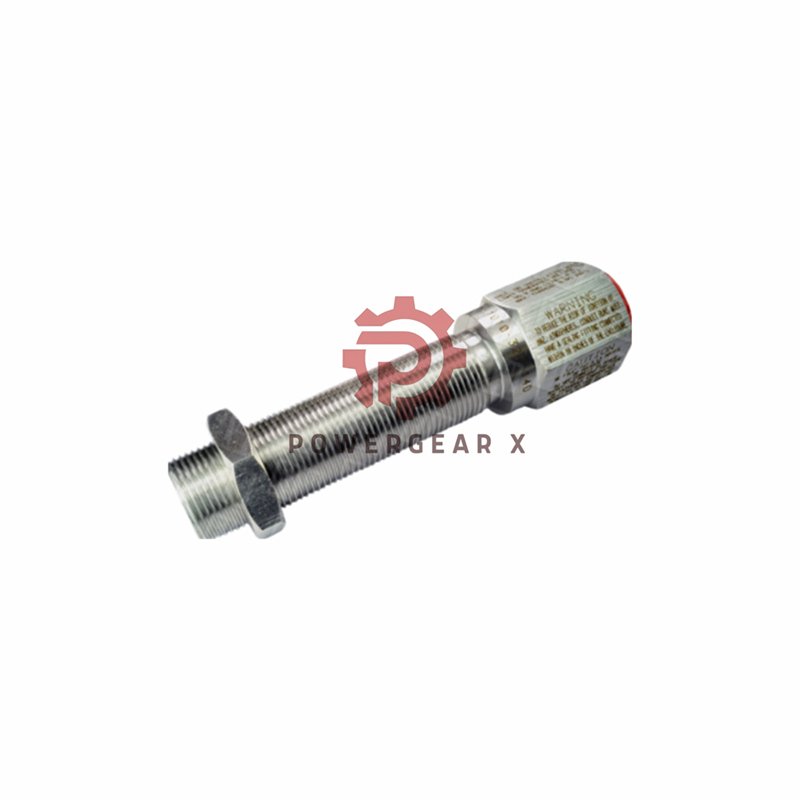

AI-TEK Speed Sensor 70085-1010-220
High output. Simple wiring. Built for heat and cold. The 70085-1010-220 offers stable pulse signal and long thread length. Author: Powergear X Automation.
Main Highlights
- Standard output 40 V peak-to-peak
- 5/8-18 UNF industrial thread
- Works from –55°C to +107°C
- Long metal body for deep mounts
- Wire lead termination for fast install
Core Specifications
- DC resistance: 130 Ω maximum
- Guarantee output: 12.8 V P-P
- Thread length: 2.937 in
- Sensor total length: 3.06 in
- Shipping weight: 2.1 kg
- Agency approval: None required
Extended Technical Data
- Max rated speed: 20,000 Hz sensing
- Coil type: Magnetic inductive pickup
- Air gap range: 0.020-0.060 in
- Body material: Stainless steel housing
- Vibration rating: 20 g continuous
Why Engineers Choose This Unit
- Strong signal even at slow RPM
- Long thread fits deep housings
- No power supply needed to operate
- Resists oil, dust, and vibration
- Ideal for engines, turbines, gearboxes
Warranty & Shipping
- 12-month warranty
- Ships worldwide by FedEx, UPS, DHL
- Well-protected industrial packing
Package Contents
- One AI-TEK 70085-1010-220 sensor
- Wiring tail protector cap
- Quick install note
Expert FAQ
- What air gap should I start with?
- Most users start at 0.030 in and adjust only if needed.
- Does long thread change signal output?
- No. Signal strength depends on target gear, not body length.
- Can I use it near hot oil lines?
- Yes. Temperature rating supports most engine bays.
- How do I confirm polarity?
- Measure voltage. Pin B lead becomes positive when target passes.
- Can it read fast gear teeth?
- Yes. Coil supports very high pulse frequency above 15 kHz.
