Product details

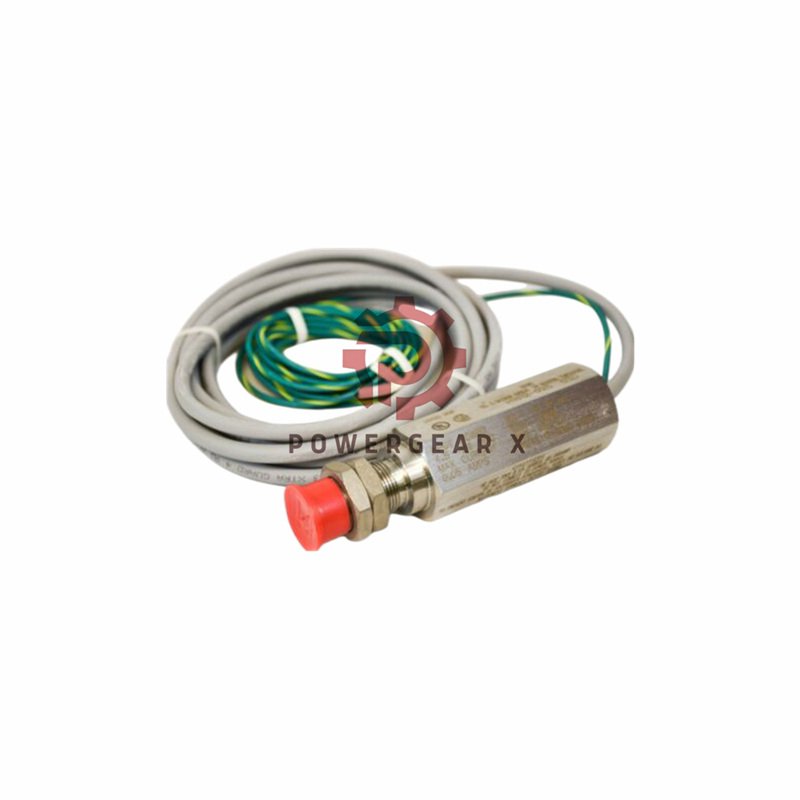

AI-TEK Speed Sensor Overview
This high-performance sensor 70085-8080-003 detects rotational speed accurately. It handles extreme temperatures with reliable output.
Critical Specifications
- Brand: AI-TEK
- Model: 70085-8080-003
- Standard Output: 150 V P-P
- Guaranteed Output: 12.8 V P-P
- DC Resistance: 1430 ohms max
- Inductance: 500 mH reference
- Thread Size: 5/8-18 UNF
- Sensor Length: 1.812 inches
- Lead Length: 12 inches (30.5 cm)
- Conduit Thread: 1/2 NPT
- Weight: 3 ounces maximum
Operational Benefits
- High 150V P-P output for strong signal clarity
- Wide temperature tolerance from -55°C to 107°C
- Compact 1.812-inch design for tight spaces
- Wire termination for direct connection flexibility
- Stable performance in harsh environments
- Easy installation with standard threading
- Consistent accuracy over long periods
- Rugged construction for industrial use
Environmental Capabilities
- Full operation from -55°C to 107°C
- Storage range: -60°C to 115°C
- Vibration tolerance: 25G maximum
- Shock resistance: 75G, 6ms duration
- IP68 equivalent sealing against contaminants
- Humidity resistance: 0-100% condensing
Order Processing
- 12-month product warranty included
- Global shipping via FedEx, UPS, DHL
- Complete technical specifications provided
- Installation guidance available
- Fast dispatch from current stock
Technical Guidance
- What applications need 150V output?
High-noise environments and long-distance signal transmission systems.
- How should wire connections be made?
Use proper crimping tools and strain relief for secure connections.
- What mounting torque is recommended?
Apply 15-20 lb-ft torque for optimal thread engagement.
- Can multiple sensors share power sources?
Yes, ensure adequate current capacity for simultaneous operation.
- What signal conditioning is needed?
Standard signal processors work well with the 150V P-P output.
