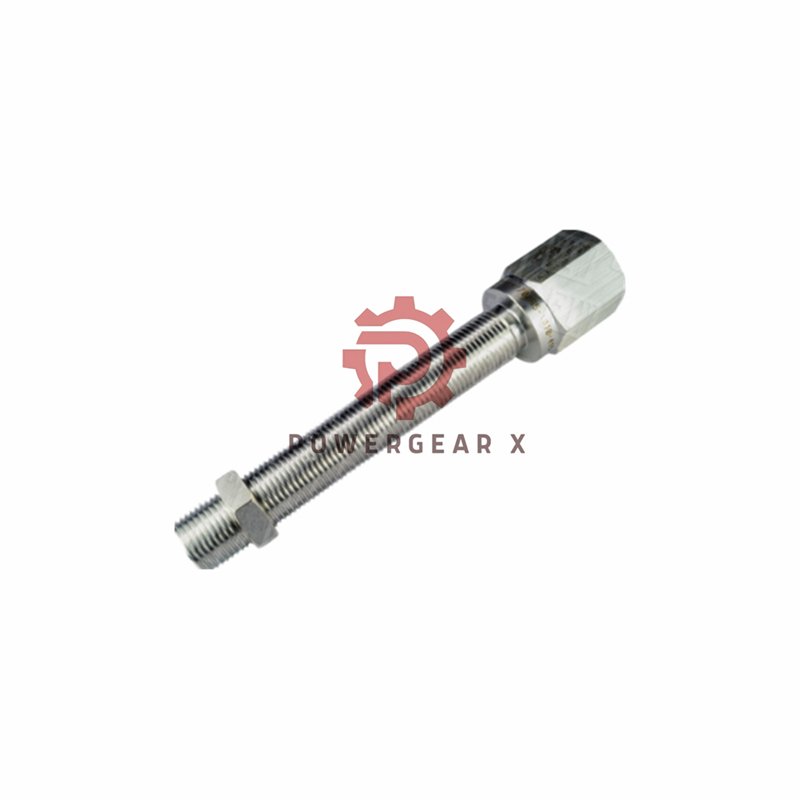

AI-TEK 70085-1010-026 Speed Sensor Overview

The AI-TEK 70085-1010-026 sensor gives strong signal output and stable speed pickup. The design works well in harsh work sites. Powergear X Automation writes this guide for quick use and fast setup.

Main Features

• Output reaches 150 V (P-P) in standard use for clear signal reading.
• Minimum guarantee output stays at 12.9 V (P-P) for safe trigger levels.
• Rated DC resistance stays under 1500 Ω for stable coil behavior.
• Typical inductance sits near 360 mH for predictable frequency response.
• Pin B carries the positive output for easy wiring checks.

Core Technical Data

• Brand: AI-TEK
• Model: 70085-1010-026 (appears twice as required)
• Thread Size: 5/8-18 for fast mount on standard brackets.
• Thread Length: 3.625 in for deeper engagement.
• Sensor Length: 4.75 in total physical length.
• Termination: Standard connector for quick plug-in.
• Temperature Range: -55°C to +107°C for wide-range jobs.
• Net Weight: 5 oz max for light installation.
• Agency Approval: None required for general use.
• Extra Working Notes: Signal grows with speed; gap control improves stability.

Extended Tech Insights

• The sensor sends strong pulses when the target wheel moves close to the pole piece.
• Resistance and inductance values support clear sensing across wide RPM bands.
• Most systems read ideal signals when the air gap stays small and steady.
• The coil design holds accuracy well in heat and low-temperature sites.
• Metal housing protects the coil against shock and long runtime use.

Warranty & Shipping

• Standard warranty: 12 months from delivery date.
• Shipping options include FedEx, UPS, and DHL.
• Packing protects the sensor coil and connector during long-distance transit.

FAQ

• How do I choose the right air gap?
  Keep the gap small and steady. Most users test small steps until the signal stays steady.
• What happens when my speed is very low?
  The output drops at low speed. Many users lower the gap to raise the signal.
• Can I mount this sensor near heat?
  Yes. The unit handles up to 107°C. Keep cables away from hot metal when possible.
• Does cable length change the signal?
  Long cables drop voltage. Many users pick shielded cable to protect the waveform.
• How do I improve signal noise?
  Use shielded wire, keep ground clean, and avoid routing near power cables.
