Product details

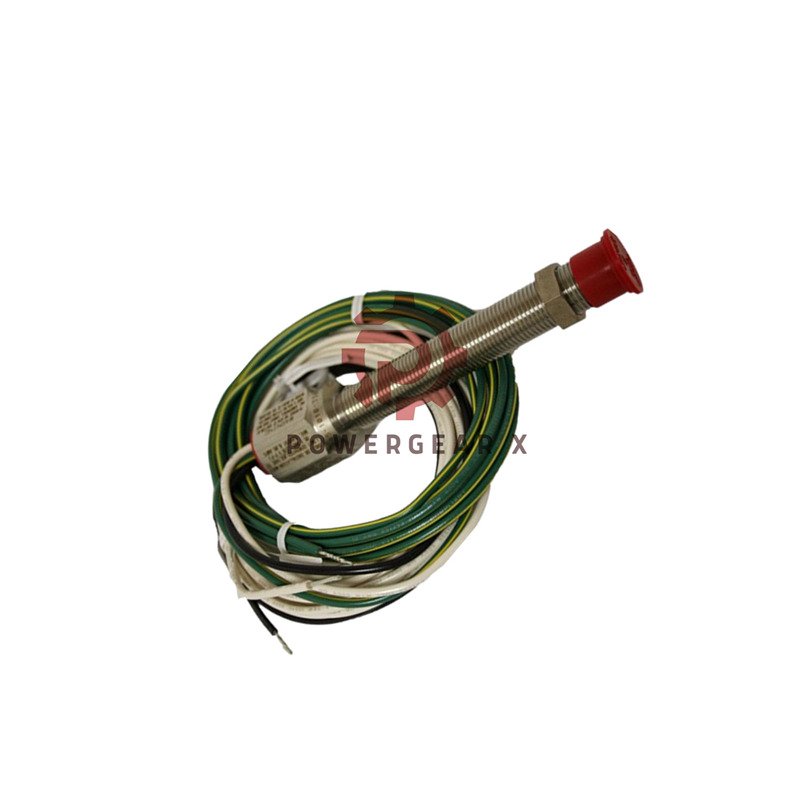

AI-TEK Speed Sensor 70085-1010-002
Fast response. High output. Simple install. The 70085-1010-002 works in harsh heat and cold. It reads speed with strong pulse voltage. Reliable for engines, turbines, or drives. Author: Powergear X Automation.
Core Features
- Output up to 150 V peak-to-peak
- 5/8-18 thread fits many housings
- -55°C to +107°C working range
- Stable pin B positive polarity
- Strong steel body design
- Fast pickup at lower shaft speeds
- Connector termination for quick change
Main Specifications
- DC resistance: 1500 Ω max
- Inductance: 360 mH typical
- Thread length: 1.125 in
- Full sensor length: 2.25 in
- Estimated weight: 5 oz
- Output guarantee point: 12.9 V minimum
- Electromagnetic pickup type coil
Extended Technical Data
- Recommended air gap: 0.020-0.060 in
- Target material: Ferrous gear steel
- Typical frequency range: 0-20 kHz
- No built-in electronics for EMI safety
- Coil insulation meets MIL spec class B
Why Choose This Model
- Works without power supply
- Strong signal at low RPM
- Stable readings in oil or dust
- Designed for engines and turbines
- Great for retrofit and upgrade jobs
Warranty & Shipping
- 12-month quality warranty
- Ships by FedEx, UPS or DHL
- Sealed industrial packing carton
Package Includes
- One AI-TEK 70085-1010-002 unit
- Connector end protection cap
- Install reference sheet
FAQ
- Can I read speed at very low RPM?
- The strong magnetic core helps generate voltage even at slow speed.
- Does shaft size change the signal?
- Gear tooth pitch and gap affect amplitude more than shaft size.
- Can I use long cable runs?
- Use twisted shielded cable above 10 meters.
- How do I check sensor health?
- Read coil resistance. If far above 1500 Ω, coil is damaged.
- Will high temperature lower output?
- Voltage may drop slightly near +100°C but remains readable.
