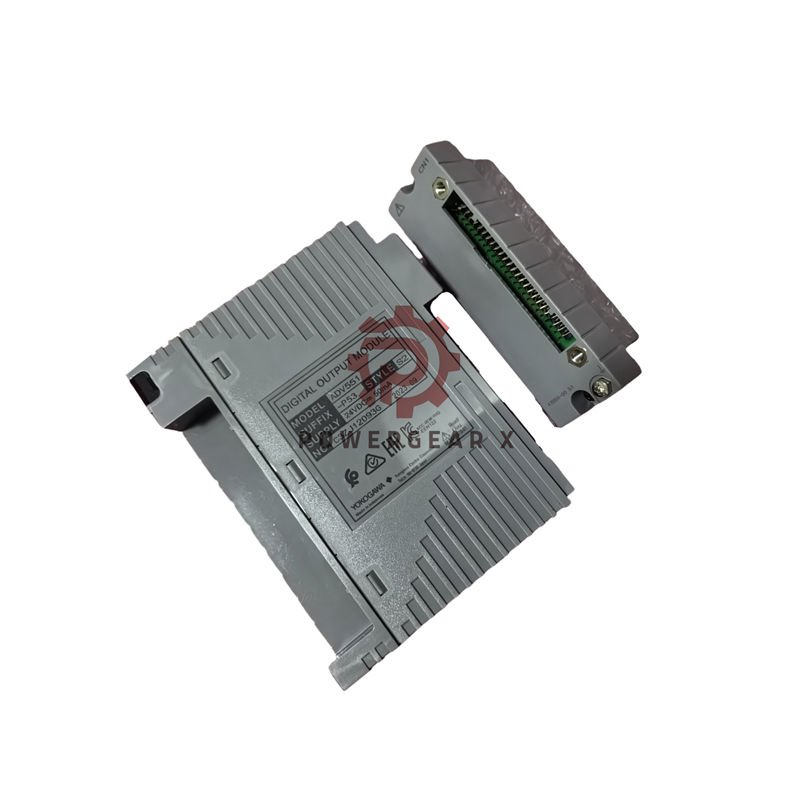

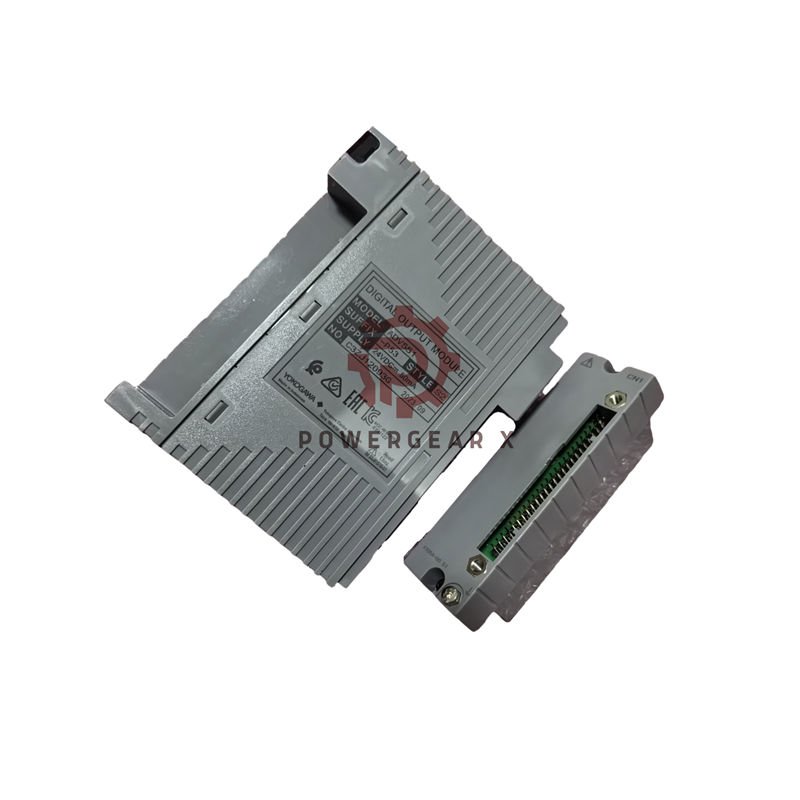

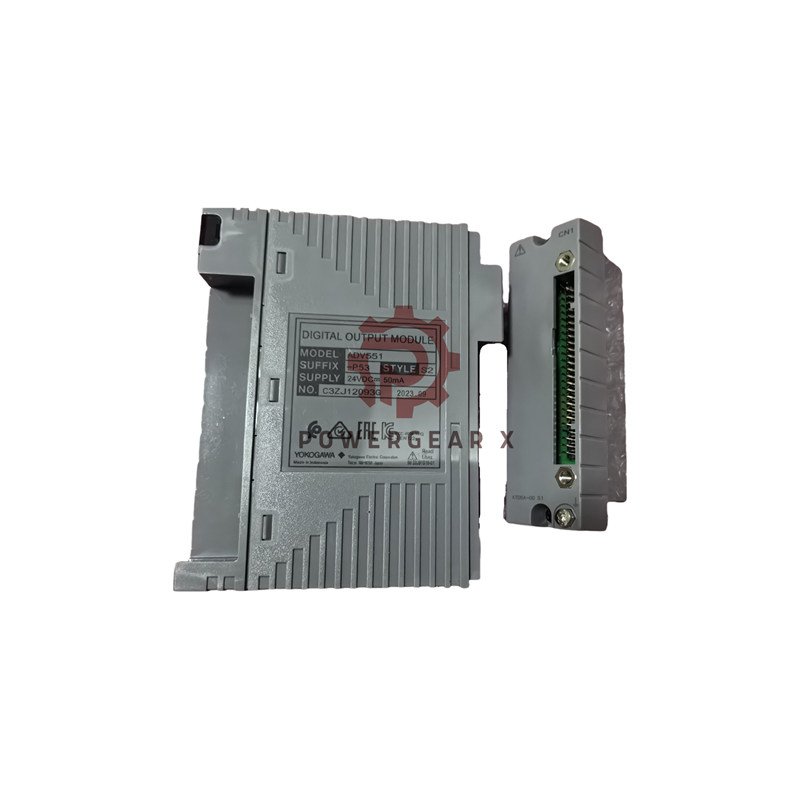

ADV551-P53/D5A00 | Yokogawa Digital Output Module
Manufacturer: Yokogawa
Part Number: ADV551-P53/D5A00
Model: ADV551 Digital Output Module (32-channel, 24V DC, Isolated)
Warranty: 12 Months
Shipping: FedEx | UPS | DHL
- Rated Voltage: 24V DC
- Output Channels: 32
- Output Type: Current Sink
- Max Load Current: 100 mA/channel (26.4V)
- Power Supply Range: 20.4–26.4V DC
- Response Time: ≤3 ms (status) / ≤10 ms (pulse)
- Withstand Voltage: 2 kV AC (signal to system)
- Current Consumption: 700 mA (5V DC), 60 mA (external)
- Pulse Width: 8 ms to 7200 s (Resolution: 8 ms)
- Connection Type: Pressure clamp / MIL connector cable
- Weight: Approx. 0.20 kg
Model and Suffix Structure
- ADV551 – Digital Output Module
- -P – Pulse width and time-proportional functions
- 5 – No display, no explosion protection
- 3 – G3 option, -20°C to 70°C range
- /D5A00 – KS Cable Interface Adapter [ATD5A-00]
Key Advantages:
- High-speed response ideal for control applications
- Compact and lightweight for easy mounting
- Supports long pulse timing and proportional control
- Excellent electrical isolation for system safety
- Built for harsh environments with wide temperature tolerance
Additional Technical Highlights:
- Leak current (OFF): ≤0.1 mA
- ON voltage drop: ≤2V DC
- Tested withstand: 500V AC between commons
- Supports mixed output modes
- Optimized for industrial automation and process control
Contact Information:
Inquiries: sales@powergearx.com
WhatsApp: +86 18030005825
Frequently Asked Questions (FAQ)
- Q1: What is the function of the ADV551-P53/D5A00 module?
- It converts digital control signals into current sink outputs for industrial automation systems.
- Q2: Can the module handle pulse width control?
- Yes, it supports pulse width and time-proportioning output functions for precise control.
- Q3: What environment can it operate in?
- It works reliably in temperatures from -20°C to 70°C with G3 environmental protection.
- Q4: How is it connected to external devices?
- Through pressure clamp terminals or a dedicated MIL connector cable for stable connectivity.
- Q5: What is the delivery and warranty policy?
- We ship via FedEx, UPS, or DHL with a 12-month standard warranty from the shipping date.
