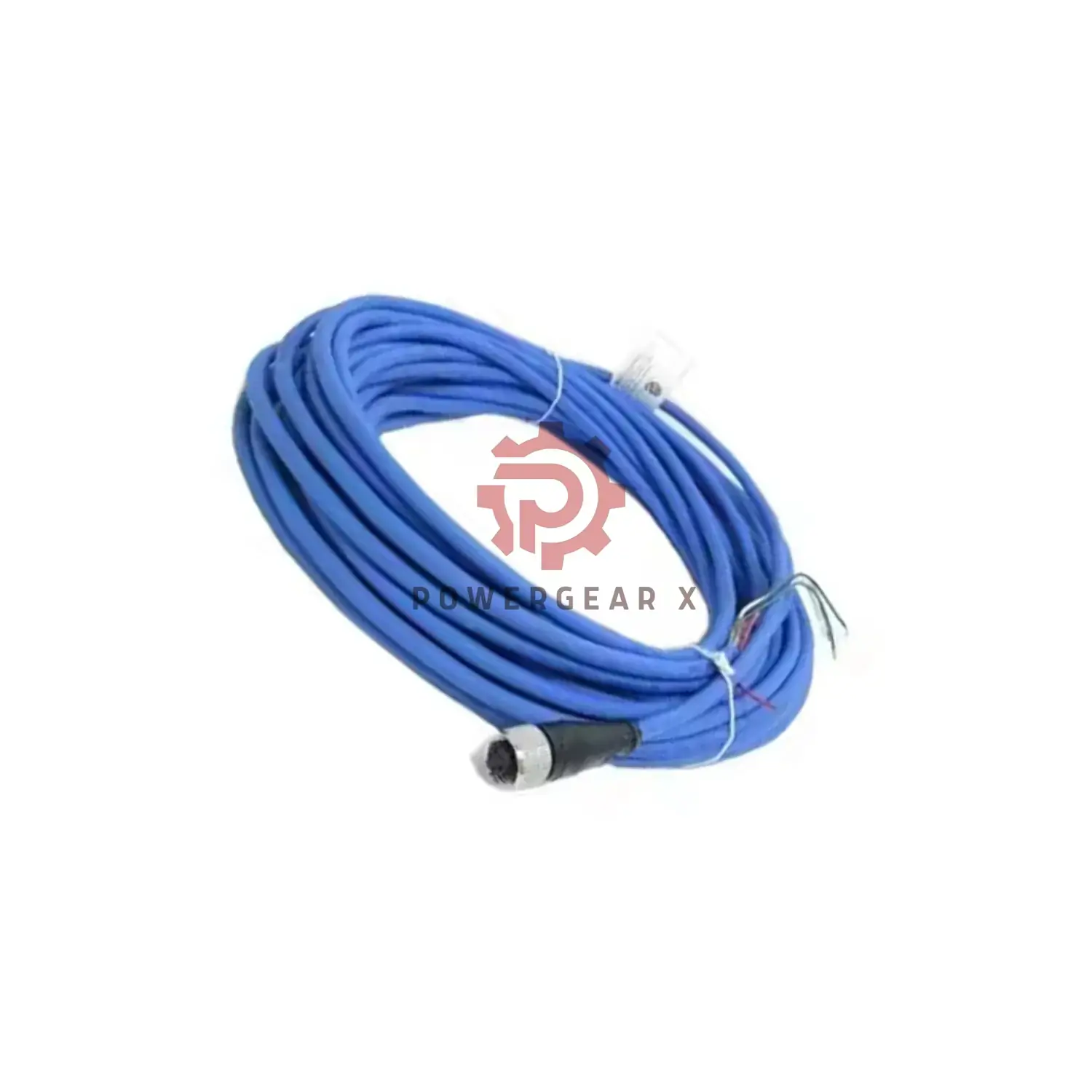

Accelerometer Interface Standard Cable 200152-25-CN

Bently Nevada 200152-25-CN Accelerometer Cable

Quick Overview

This is a 25-meter cable. It connects to Bently Nevada accelerometers. One end has a fixed connector. The connector fits country-specific needs. It gives strong signal and lasts long.

Model Breakdown

• Model: 200152 – Interface Cable
  • -25: 25-meter length
  • -CN: Country-specific connector nut

Key Technical Details

• Cable Length: 25 meters
• Type: 4-conductor, 22 AWG
• Shield: Braided, 85% coverage minimum
• Jacket: PVC outer layer
• Connector Seal: IP67 rated
• Connector Material: Molded, with DC4 protection
• Minimum Bend Radius: 73.7 mm
• Cable Temperature Range: -20°C to +100°C
• Connector Temperature Range: -55°C to +121°C
• Do Not Bend: Below -20°C
• Connector Cure Time: 24 hours after install

Install Guide

• Use in fixed cable paths
• Do not move cable when cold
• Let connector cure for 24 hours
• Seal connection points fully

Box Includes

• 1 x 200152-25-CN Cable
• Basic user note (no certificate)

Warranty and Shipping

• 12-month warranty
• Ships with FedEx, UPS, or DHL
• In stock, fast delivery
• 24-hour tech help included
