Accelerometer Interface Standard Cable 200152-15-CN

Bently Nevada 200152-15-CN Accelerometer Cable

Product Overview

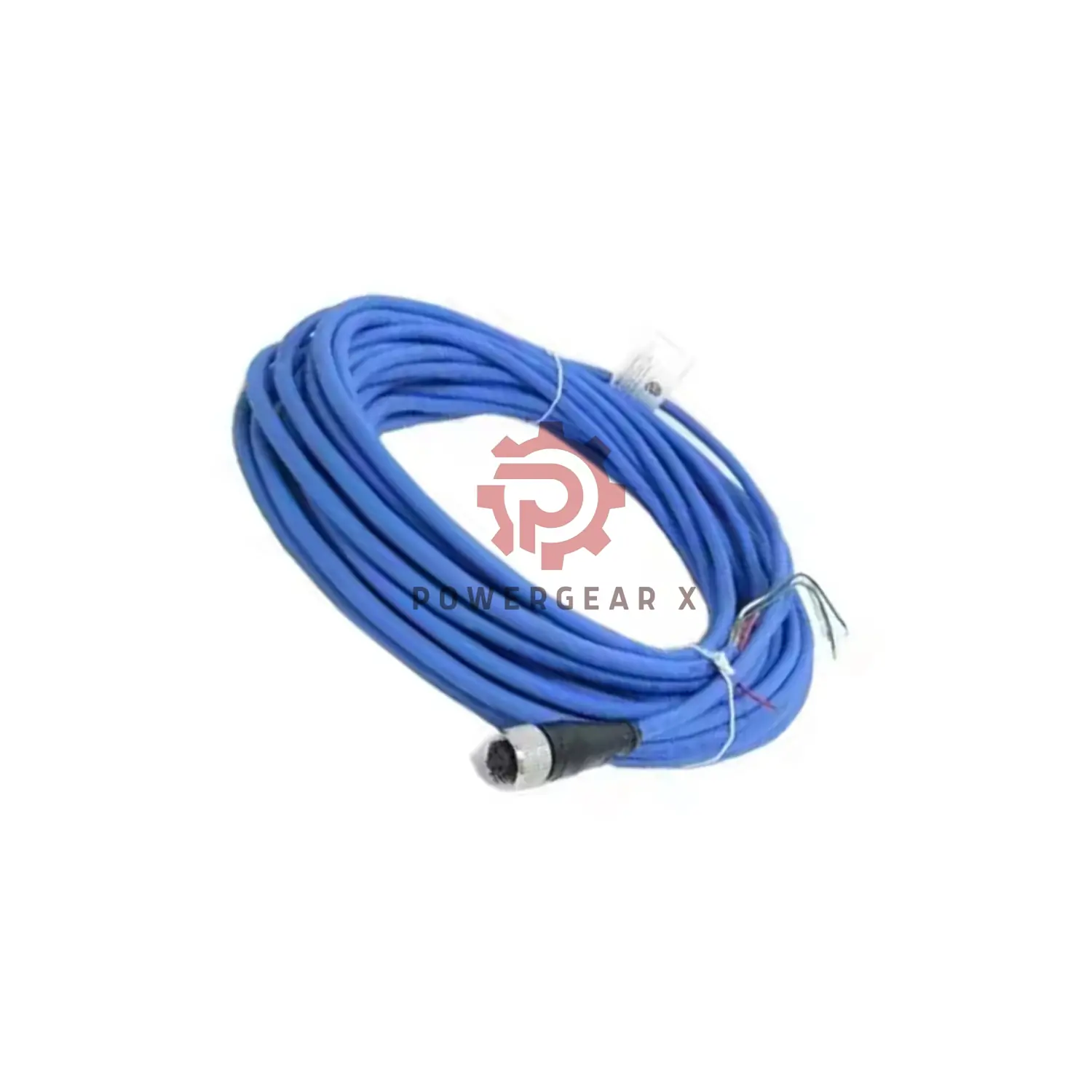

This is a 15-meter cable for Bently Nevada accelerometers. It has one connector on the sensor end. The -CN type includes a country-specific nut. It works well in factory or plant setups.

Model Breakdown

• 200152: Interface Cable Series
  • -15: 15-meter length
  • -CN: Country-specific coupling nut

Main Features

• Strong PVC cable jacket
• 4-core, 22 AWG wire
• Shielded to block noise
• Nickel-coated metal nut
• One molded connector (sensor side)

Technical Details

• Cable Length: 15 meters
• Bend Radius: At least 73.7 mm
• Work Temp: -20°C to +100°C
• Connector Temp: -55°C to +121°C
• Seal: IP67 when connected
• Seal Cure Time: 24 hours

Install Tips

• Do not bend below 73.7 mm
• Do not flex the cable under -20°C
• Keep connector dry during setup

What’s in the Box

• 1 cable (200152-15-CN)
• No papers or certificates

Shipping and Support

• Ships by FedEx, UPS, or DHL
• 12-month warranty
• In stock now
• 24/7 tech help
