Product details

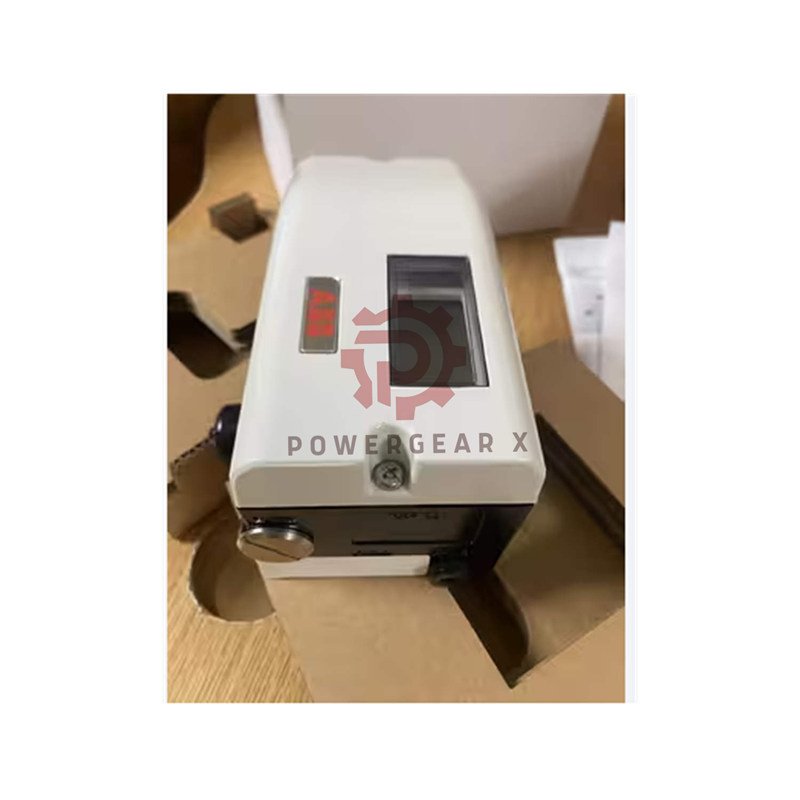

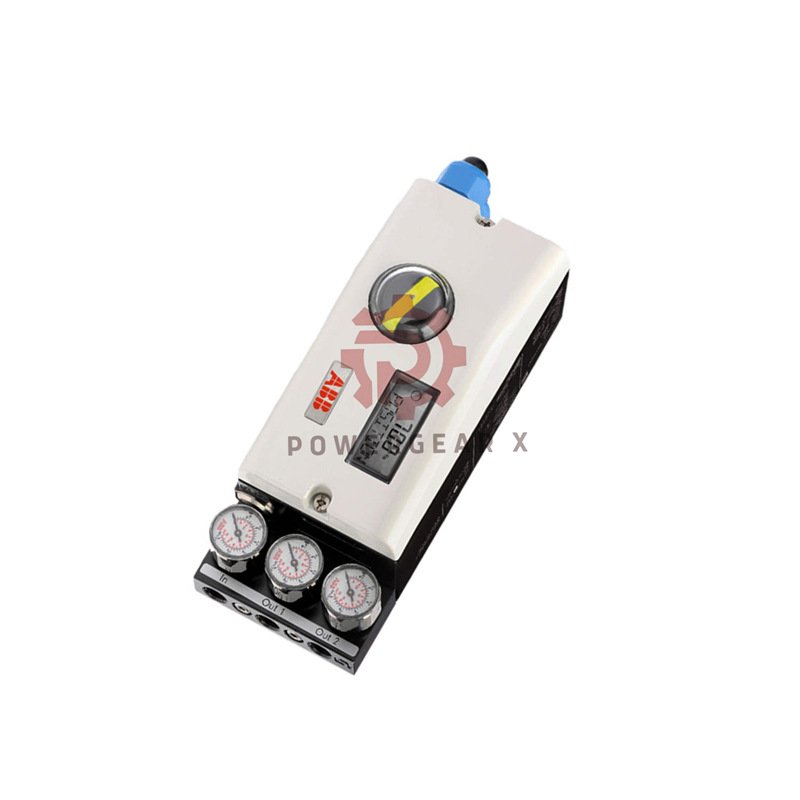

ABB V18345 Electro-Pneumatic Positioner
The ABB V18345-1027420001 controls valve actuators precisely. It works with 4-20mA signals in harsh industrial environments.
Key Specifications
- Product: ABB V18345-1027420001
- Type: Electro-Pneumatic Positioner
- Input: 4-20mA two-wire signal
- Output: Double-acting, 0-6 bar
- Enclosure: IP65/NEMA 4X aluminum
- Mounting: DIN/IEC 534 & VDI/VDE 3845
- Explosion Proof: GOST Ex certified
- Connections:
- Electrical: 1/2-14 NPT
- Pneumatic: 1/4-18 NPT
Technical Details
- Signal Range: 4-20mA (starts at 3.8mA)
- Air Supply: 1.4-6 bar required
- Air Flow: Up to 13 kg/h at 6 bar
- Angle Range: 25-120° for rotary actuators
- Configurable Travel: 0-100% range
- Response Time: Adjustable 0-200 seconds
- Fail-Safe: Vents or blocks on power loss
- Weight: 1.70 kg
- Size: 168.5 x 92.9 x 89.5 mm
Installation & Use
- Mount directly to actuator mounting pads
- Use clean, dry instrument air supply
- Configure via local pushbuttons
- Suitable for linear and rotary actuators
Package Contents
- ABB V18345 positioner unit
- Electrical connector plug
- Mounting hardware
- Installation manual
Shipping Information
- Available from stock
- Global shipping via FedEx, UPS, DHL
- Tracking provided for all orders
FAQ
- What valves fit this positioner?
Most linear and rotary actuators with standard mounting. - Can I set different stroke ranges?
Yes, from 20% to 100% of full travel. - How does fail-safe work?
It vents actuator air or blocks ports automatically. - What air quality is needed?
Clean, dry air at 1.4 bar minimum pressure. - Why choose the ABB V18345?
Reliable performance in tough conditions with precise control.
