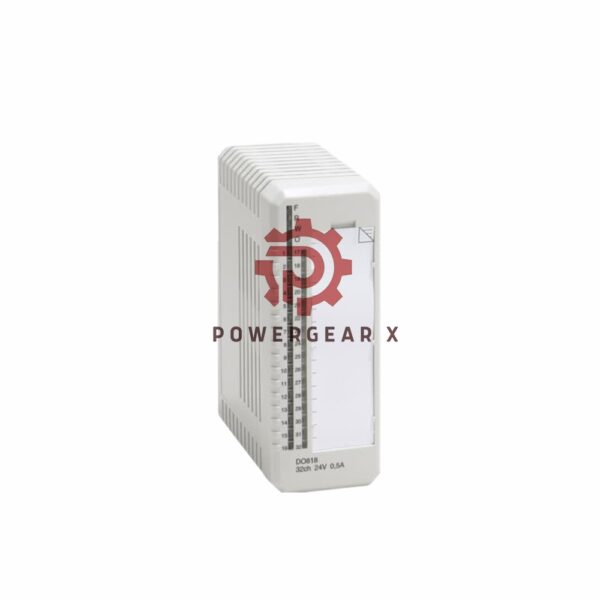

ABB DO818 3BSE069053R1 AC 800M Module

Overview

The DO818 Digital Output Module is a robust and versatile module designed for use with the S800 I/O system. It provides 32 channels for 24V DC output, ideal for controlling various digital loads in industrial automation systems. This module is equipped with built-in safety features, ensuring protection against short circuits, overvoltage, and overheating. The DO818 is particularly well-suited for applications that require reliable output signals, such as process control, machine automation, and industrial equipment monitoring.

Technical Specifications

• Brand: ABB
• Model: DO818 Digital Output Module
• Module Type: 24V DC, Current Sinking
• Number of Channels: 32 (2 x 16 outputs)
• Output Voltage Range: 12-32 V DC
• Maximum Load Current: 0.5 A per channel
• Short Circuit Protection Current: < 2 A
• Leakage Current: < 30 µA
• Output Impedance: < 0.32 ohm
• Process Voltage Supervision: Yes, 2 channels (one per group)
• Isolation: Group-wise isolated from ground
• Mounting Termination Units: TU830, TU818, TU819
• Rated Insulation Voltage: 50 V
• Dielectric Test Voltage: 500 V AC
• Power Dissipation: 2.8 W
• Current Consumption (5V): Typ. 70 mA (ModuleBus)
• Current Consumption (24V): 40 mA (process power supply)
• Maximum Cable Length: 600 meters (656 yards)
• Current Limitation Mode: Initial peak at 1.4A, repetitive mode at 1.1A

FAQ

Q: What is the maximum continuous output current per channel?
A: The maximum continuous output current per channel is 0.5 A.

Q: How is over-temperature protection handled?
A: When the temperature exceeds 135°C, the module enters a low-duty cycle PWM mode (selective thermal shutdown) to prevent critical chip temperatures.

Q: What happens if the process voltage drops below 12V?
A: If the process voltage drops below 12V, the process voltage supervision input will trigger an error signal that can be monitored through the ModuleBus.

Q: Can the DO818 module be used with all S800 I/O systems?
A: Yes, the DO818 module is compatible with all S800 I/O systems and can be used with different MTUs, such as TU830, TU818, and TU819.

For more detailed information, please check official datasheet: S800_I_O_Modules_and_Termination_Units
