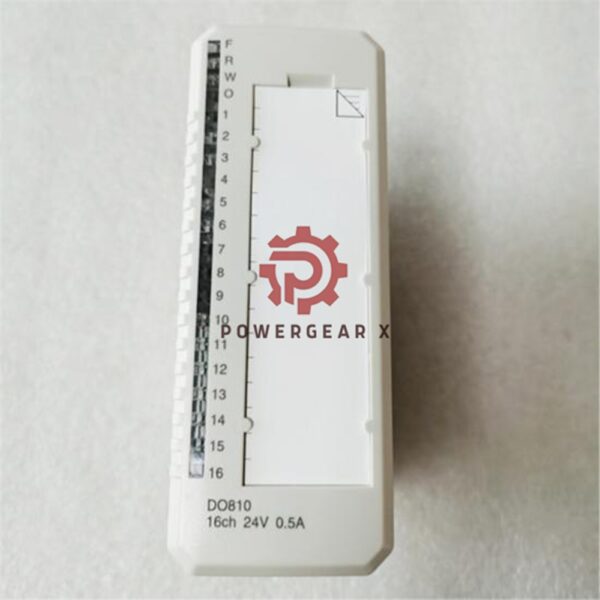

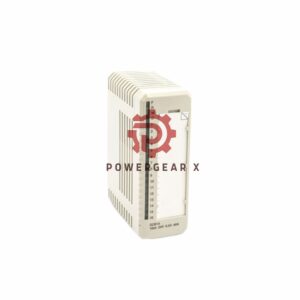

ABB DO810 Digital Output Module, 3BSE008510R1

Overview:

The DO810 is a robust and efficient 16-channel digital output module designed for the ABB S800 I/O system. This module features transistor current sourcing outputs, providing a reliable and safe solution for controlling various industrial processes. With built-in protection mechanisms and a high level of integration, the DO810 ensures optimal performance in harsh industrial environments.

Technical Specifications:

• Model: DO810 – 16-Channel Digital Output Module
• Brand: ABB
• Output Type: Transistor current sourcing (current-limited)
• Voltage Range: 12 – 32 V DC
• Max. Load Current per Channel: 0.5 A
• Short Circuit Current (max.): 2.4 A
• Leakage Current (max.): <10 µA
• Output Impedance: <0.4 ohm
• Maximum Field Cable Length: 600 meters (656 yards)
• Current Consumption: 80 mA (via ModuleBus at 5 V)
• Power Dissipation: 2.1 W
• Process Voltage Supervision: 2 channels (one per group)
• Output Set as Predetermined (OSP): 256, 512, 1024 ms
• Isolation: Groupwise isolated from ground
• Mounting: Compatible with termination units TU810, TU812, TU814, or TU830
• Rated Insulation Voltage: 50 V
• Dielectric Test Voltage: 500 V AC

FAQ:

1. What is the maximum continuous current the DO810 can supply?
   • The module can supply up to 0.5 A per output channel.
2. Can the DO810 be used in high-voltage applications?
   • The DO810 operates with a voltage range of 12-32 V DC, which makes it suitable for low to medium-voltage applications.
3. What protection mechanisms are in place to ensure the module’s safety?
   • The DO810 features short-circuit protection, over-voltage, and over-temperature protection to prevent damage in challenging industrial environments.
4. How are the output statuses indicated?
   • Each output channel has an LED indicator to visually show its operational status.
5. What is the function of the process voltage supervision?
   • It provides real-time monitoring of each group’s voltage, generating an error signal if the voltage falls below the required threshold.

For more detailed information, please check official datasheet: S800_I_O_Modules_and_Termination_Units
