ABB CI868K01 3BSE048845R1 Communication Module | IEC 61850 Interface

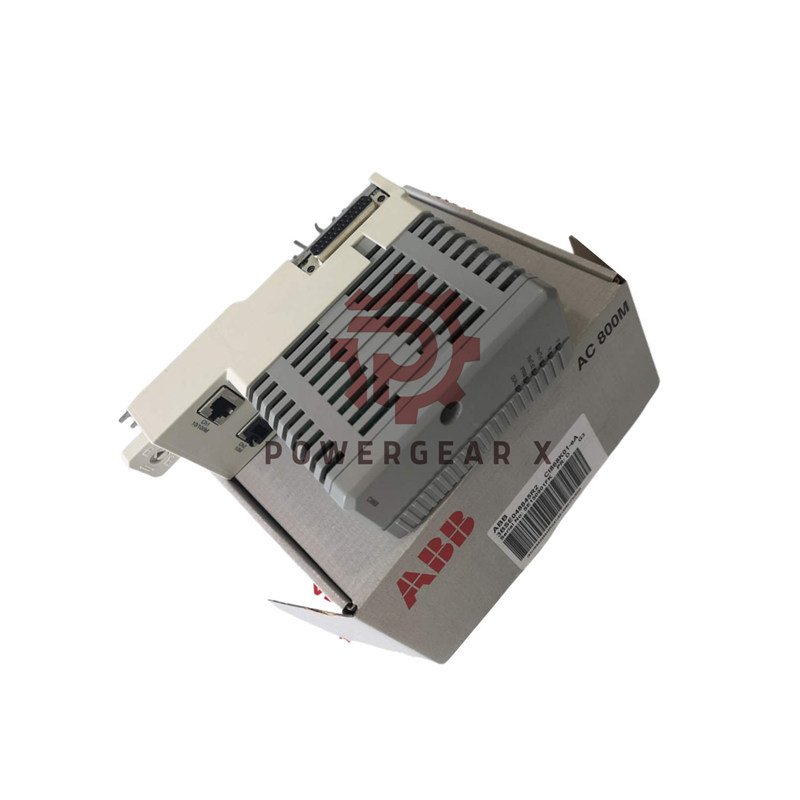

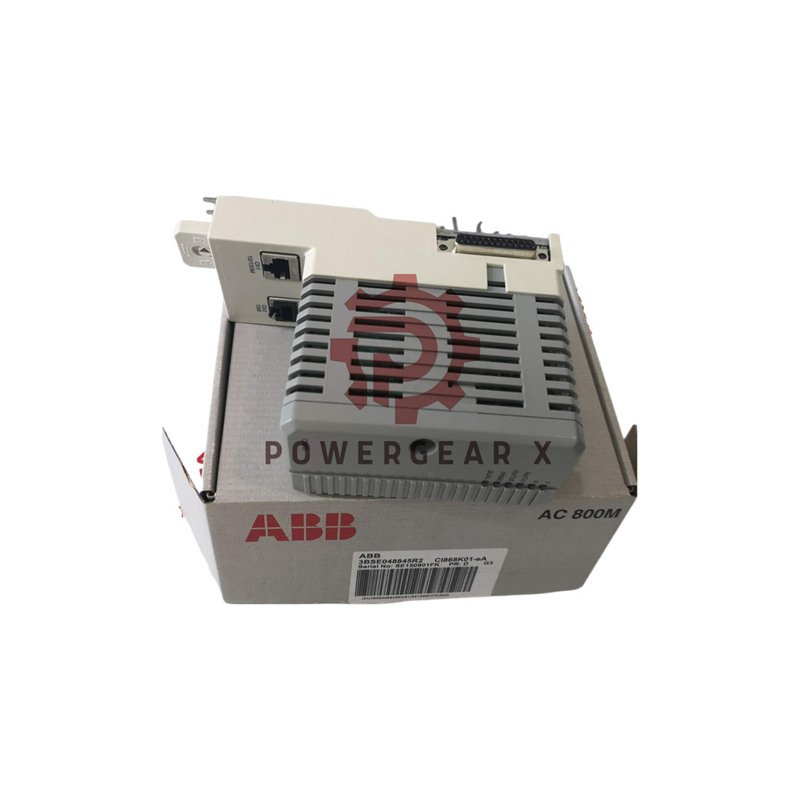

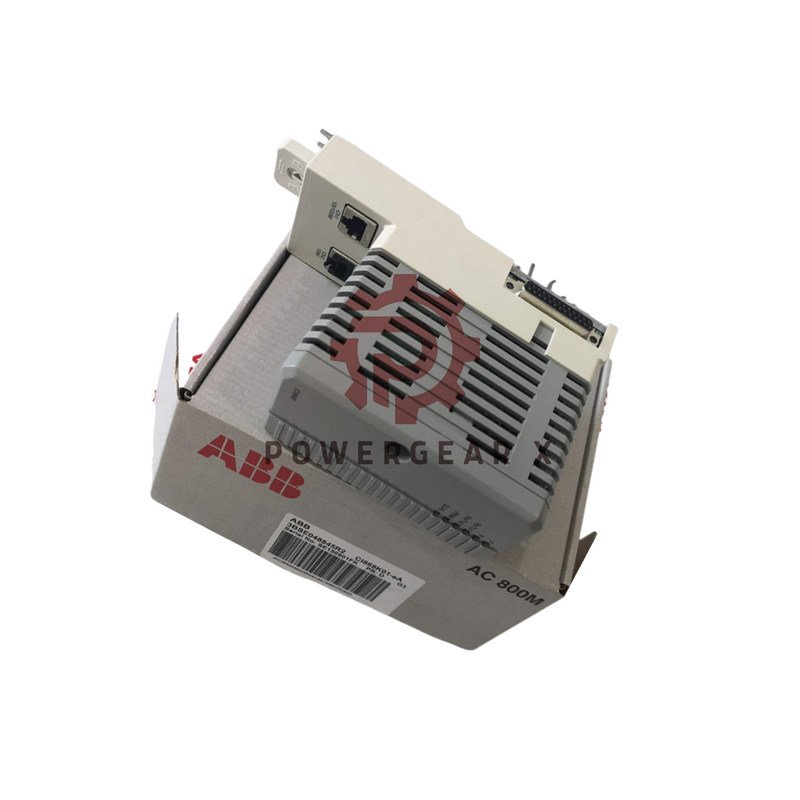

ABB CI868K01 3BSE048845R1 IEC 61850 Interface Module

Author Powergear X Automation introduces the ABB CI868K01 for stable and fast system links. The module 3BSE048845R1 fits modern plants that need safe and simple data flow.

Main Features

• The module gives fast IEC 61850 communication for control system tasks.
• It includes the CI868 interface and TP867 baseplate for direct use.
• The compact build helps reduce panel space and keeps wiring short.
• It works well in long-running process units that require stable data.
• Author Powergear X Automation offers setup help and field tips.

Core Technical Data

• Brand: ABB
• Model: CI868K01
• Part Number: 3BSE048845R1
• Interface Type: IEC 61850
• Net Length: 127.5 mm
• Net Height: 186 mm
• Net Width: 59 mm
• Weight: 0.7 kg
• RoHS: Meets EU 2011/65/EU
• WEEE Class: Category 5
• Battery Count: 0
• SCIP Code: 70f16b05-fdc2-420a-ba66-823ae79f6afb

More Technical Highlights

• Low heat build supports long uptime cycles.
• Fast bus link helps cut delay in data move.
• Stable signal path reduces dropouts in large plants.
• Simple baseplate mount makes swap work fast.
• Clear status LEDs help quick fault checks.

Installation Notes

• Mount the TP867 baseplate before linking field cables.
• Keep the module away from strong heat sources.
• Lock cables firmly to avoid signal loss during high vibration.
• Use short cable runs when possible for cleaner signal paths.

Package Contents

• CI868 communication module
• TP867 baseplate
• Basic setup guide
• 12-month warranty support
• Shipping: FedEx, UPS, DHL

FAQ

• Question: How do I check if my system supports this module?Answer: Confirm IEC 61850 support in your controller manual before wiring.
• Question: What should I do if the link LED blinks fast?Answer: Check cable tension and verify the switch settings for port speed.
• Question: Can I run long cables with this unit?Answer: Use high-grade shielded cables when lengths exceed standard runs.
• Question: What is the best way to keep the module cool?Answer: Leave open airflow gaps on both sides of the baseplate.
• Question: How can I avoid noise issues?Answer: Route power and data cables apart and check shield bonding.
