ABB BC820K02 3BSE071500R1 CEX‑Bus Unit – Redundant & Hot Swap

 1.0 Core identification

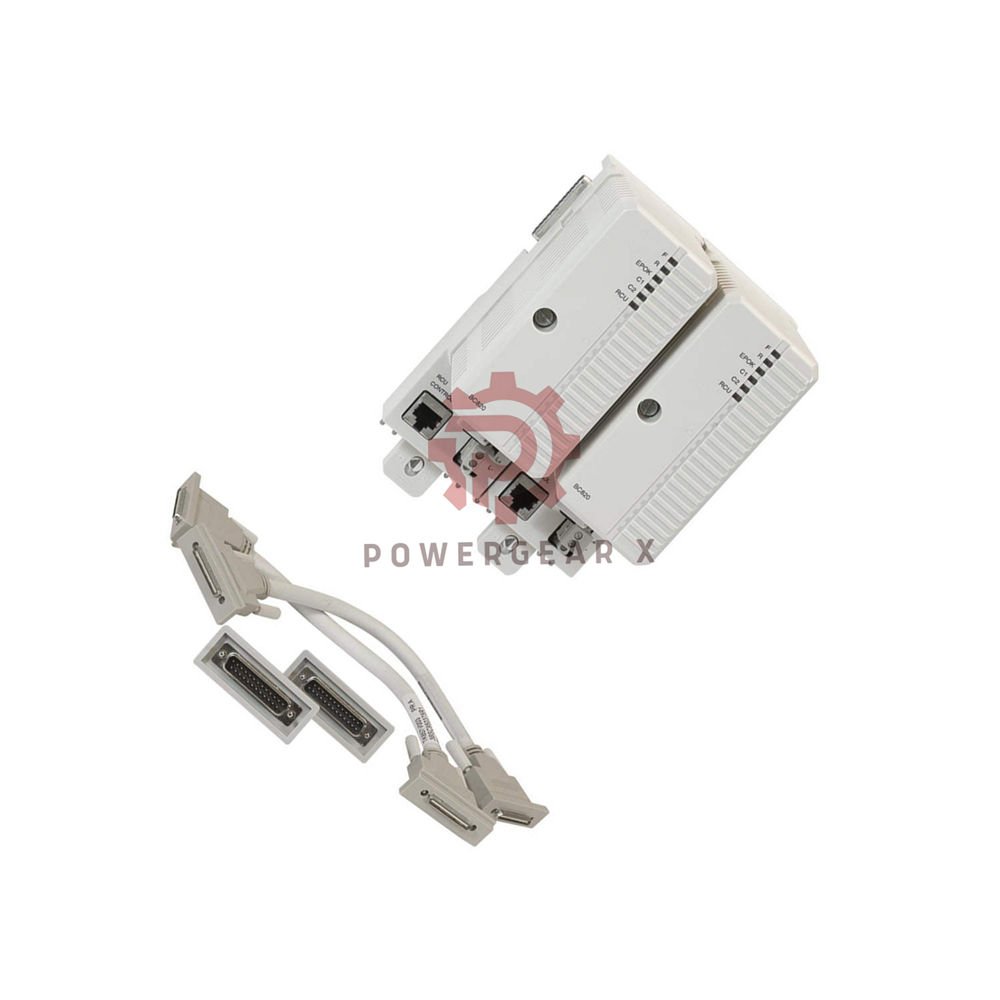

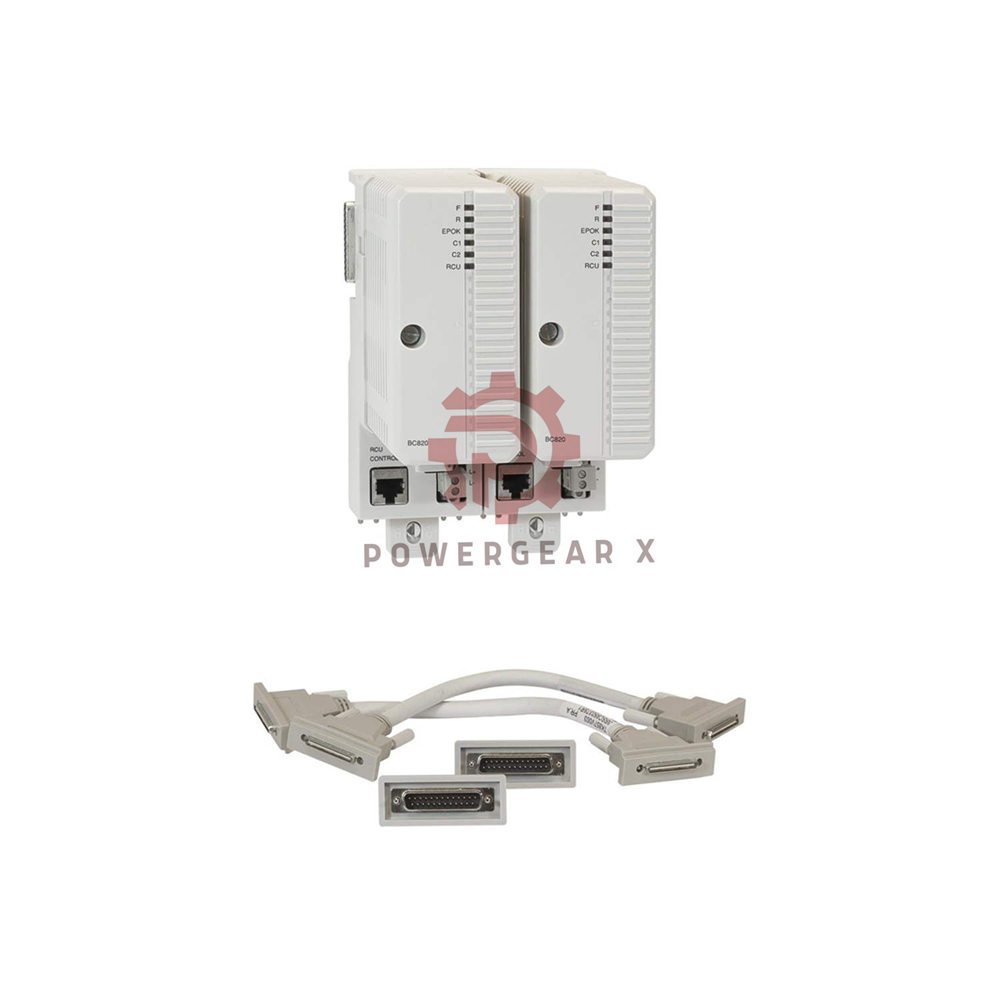

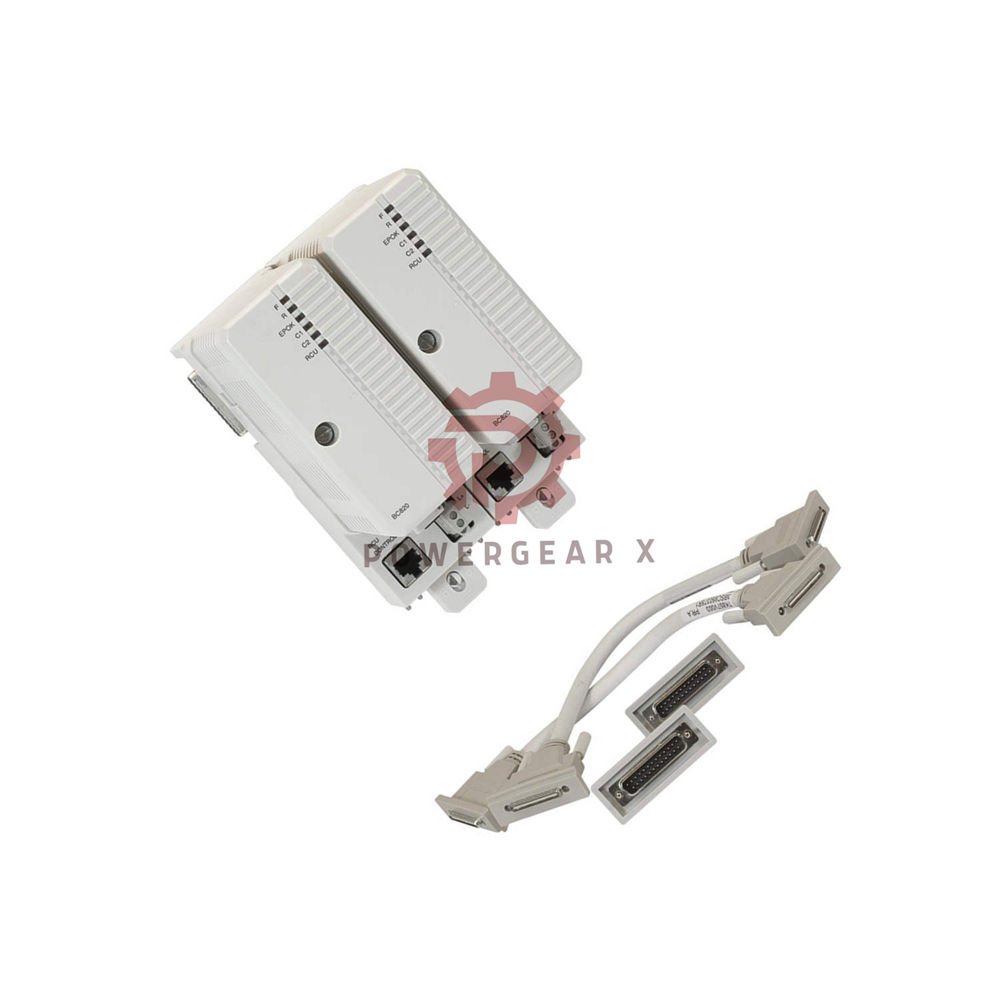

• ABB BC820K02 (3BSE071500R1) – CEX‑Bus Interconnection Unit
• type : redundant CEX‑Bus extender, supports hot swap
• use with : PM858, PM862, PM866 (PR:F or later), PM866A

 2.0 Technical data – indented tree

• power
  • 24 V nominal (19.2…30 V DC) external supply via L+/L-
  • consumption 120 mA typ / 200 mA max (+24 V)
  • dissipation 2.9 W typ
• environment
  • operating +5…+55 °C | storage -40…+70 °C
  • humidity 5‑95 % non‑condensing
  • IP20 protection (EN 60529 / IEC 529)
• certifications
  • CE, cULus Class I Zone 2, Ex nA IIC T4 Gc X
  • marine: ABS, BV, DNV‑GL, LR
  • safety: UL 61010‑1/‑2‑201, RoHS (EN 50581), WEEE
• mechanical
  • W 59 mm x H 185 mm x D 127.5 mm
  • weight 1.4 kg (3.1 lb) including base

 3.0 Key features & benefits

• redundancy : supports redundant CEX‑Bus communication interfaces
• hot swap : online CPU replacement without power down
• extension : splits CEX‑Bus into two independent segments up to 200 m
• external power : redundant supply via external connector
• limitation : max 6 CEX‑Bus interfaces per BC820

 4.0 Cables needed (not included)

• RCU Control Link : RJ45 shielded crossover (T568A to T568B), max 200 m
• RCU Data Link : LC duplex, 50/125 µm OM3 fiber, max 200 m
• see ABB doc 3BSE036351-* for detailed cable specs

 5.0 Package, warranty & logistics

• kit includes : BC820 unit + base, documentation leaflet
• warranty : 12 months against defects
• shipping : FedEx, UPS, DHL – express tracked
• inquiries :
  sales@powergearx.com |
  +86 18030005825 (WhatsApp)

 6.0 Professional FAQ (experience + selection guide)

• Can BC820 work with older PM866 (pre‑PR:F)?No. It needs PM866 with PR:F or later (PM866K01 PR:H or later). Check your CPU revision.
• I want redundant CEX‑Bus. How many BC820 units do I need?One BC820 can create two segments. For full redundancy use two BC820s, each with its own power.
• Is external power mandatory?The BC820 draws power from the CPU via CEX‑Bus. External supply is optional but recommended for redundant setups.
• What maximum distance can I achieve?Both RCU Control (copper) and Data (fiber) links support up to 200 m. Fiber gives electrical isolation.
• Does the kit include cables or connectors?No. You must order RJ45 crossover cables and LC fiber cables separately. See 3BSE036351-* for exact types.

 7.0 Typical application & diagnostic tip

• use case : extend CEX‑Bus to remote I/O cabinets up to 200 m away
• diagnostic hint : LEDs on BC820 show power and bus activity – check them first if communication fails
