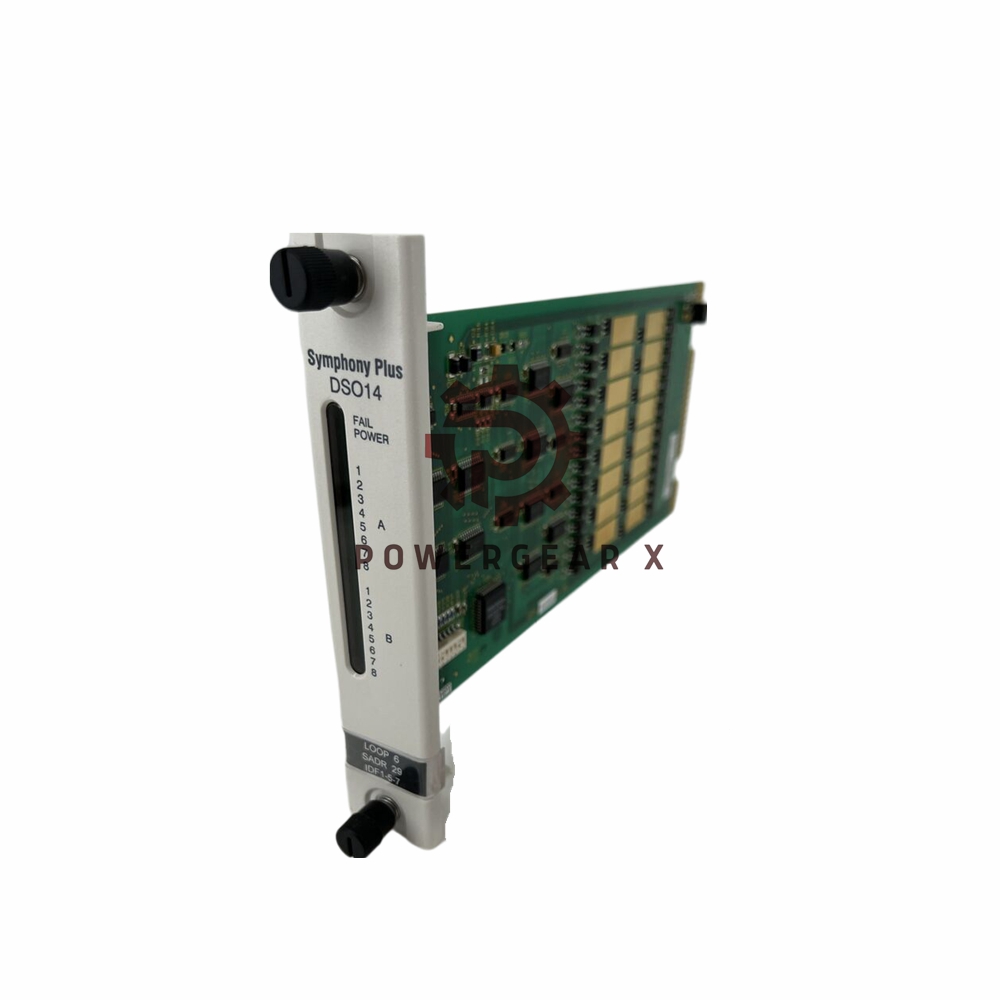

ABB Bailey SPDSO14 Digital Output Module

Overview

The SPDSO14 Digital Output Module, designed for ABB’s Symphony Plus DSO14 system, provides reliable control with 16 digital output channels. It is ideal for industrial applications that require efficient switching and signal management. The module uses open collector outputs for greater flexibility and adaptability in various control processes.

Key Technical Specifications

• Model: SPDSO14
• Brand: ABB
• Type: Digital Output (DO) Module
• Channel Count: 16
• Output Type: Open Collector
• Dimensions:
  • Depth: 73.66 mm
  • Height: 360.68 mm
  • Width: 279.4 mm
• Weight: 1.10 lbs (approx. 0.5 kg)
• WEEE Category: 5 (Small Equipment, external dimension under 50 cm)
• Environmental Impact: Designed for minimal energy consumption and reduced waste
• HS Code: 85389081 (parts suitable for use with apparatus of heading 85.35, 85.36, or 85.37)

FAQ

1. What does an open collector output mean?
   Open collector outputs allow for easy integration with different voltage levels and external components, offering flexibility in system design.
2. How many channels does the DSO14 module support?
   The DSO14 module has 16 digital output channels, allowing it to control multiple devices or systems simultaneously.
3. What systems is the DSO14 compatible with?
   The DSO14 is designed specifically for ABB’s Symphony Plus DSO14 control system, ensuring seamless integration and optimized performance.
4. What is the weight of the DSO14 module?
   The module weighs approximately 1.10 lbs (0.5 kg), making it lightweight for easy installation and maintenance.
