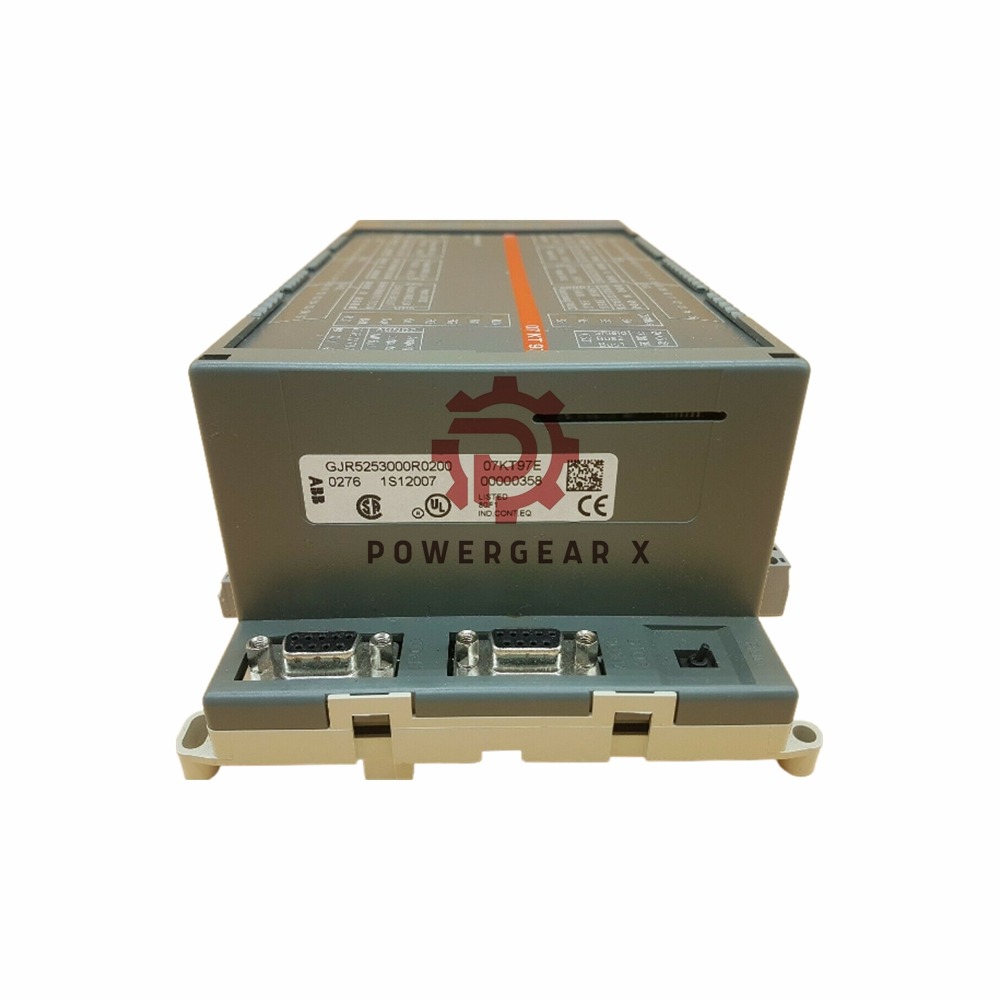

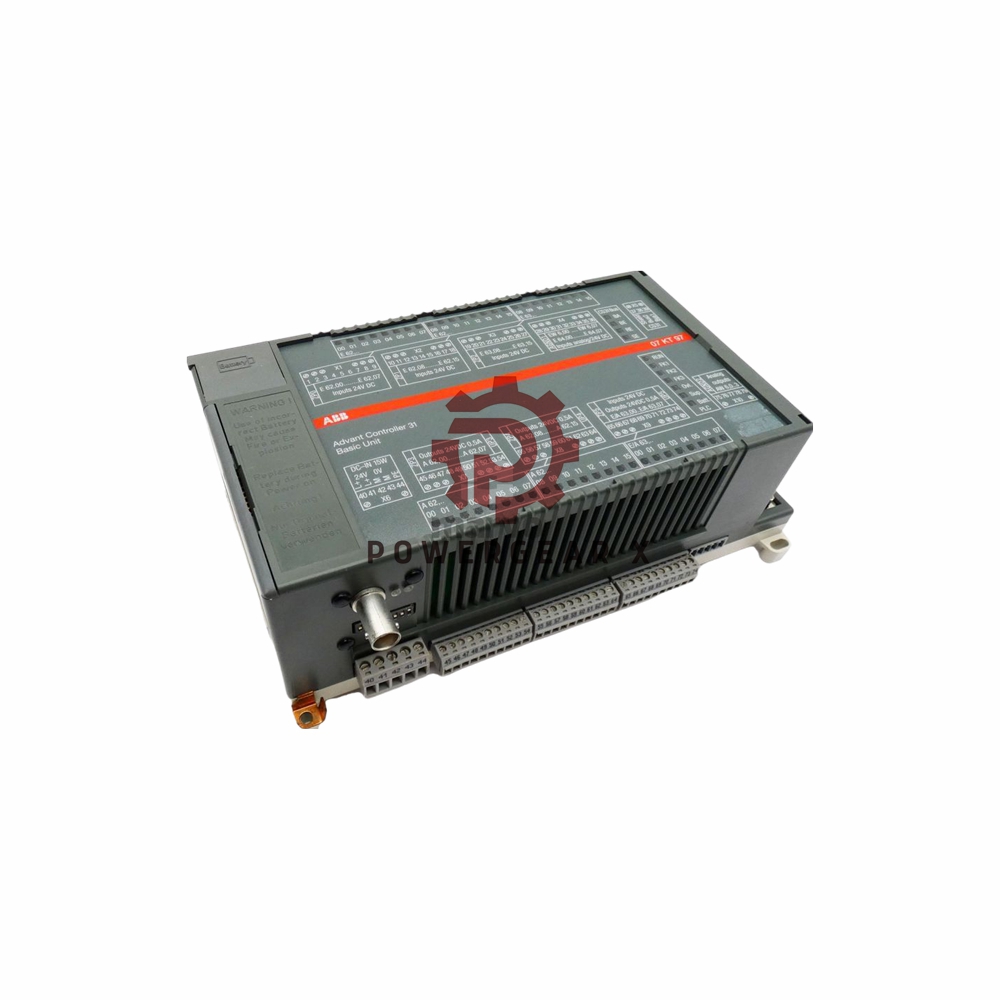

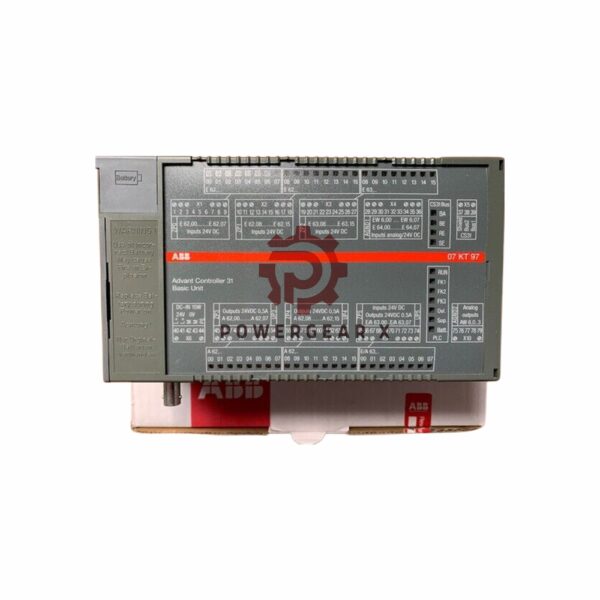

ABB 07-KT-97 Basic Unit GJR5253000R0160

Overview

The 07 KT 97 GJR5253000R0160  is a versatile, decentralized automation system unit that functions in multiple modes: as a bus master, a slave (remote processor), or as a stand-alone unit. 07 KT 97 GJR5253000R0160 is part of the Advant Controller 31 system and is powered by 24 V DC.

Technical Specifications

• Brand: ABB
• Model: 07 KT 97 GJR5253000R0160
• Power Supply: 24 V DC
• Programming Software: AC31 programming software (IBM-compatible)
• Backup: Integrated battery and Flash EPROM for data backup
• Mounting: Screw or DIN rail snap fastening
• Memory: Integrated Flash EPROM, SmartMedia Card for user data and OS/PLC updates
• Real-Time Clock Backup: Lithium battery 07 LE 90 for backup
• Operating Modes:
  • Stand-alone basic unit
  • Bus master basic unit
  • Slave basic unit
• Digital Inputs and Outputs
  • 24 digital inputs with LED displays
  • 16 digital transistor outputs with LED displays
  • 8 digital inputs/outputs with LED displays
• Analog Inputs
  • 8 individually configurable analog inputs, with multiple input types:
    • 0…10 V, 0…5 V, ±10 V, ±5 V
    • 0…20 mA, 4…20 mA
    • Differential inputs
    • Pt100 (2-wire or 3-wire)
  • The analog inputs can also be configured as digital inputs.
• Analog Outputs
  • 4 configurable analog outputs:
    • ±10 V
    • 0…20 mA, 4…20 mA
• Counters and Interfaces
  • 2 counters for counting frequencies up to 50 kHz, configurable in 7 different modes
  • 1 CS31 system bus interface for system expansion
  • 1 interface for communication modules (e.g., 07 KP 90)
  • 2 serial interfaces (COM1, COM2) for MODBUS and programming/testing functions
• Real-time Clock
  • Battery backup to store user data, flags, and real-time clock settings
• Diagnosis Functions
  • Self-diagnosis of the basic unit
  • Diagnosis of the CS31 system bus and connected modules
  • Extensive LED displays for operational and error status

For more detailed information, please check official datasheet: Advant Controller 31
