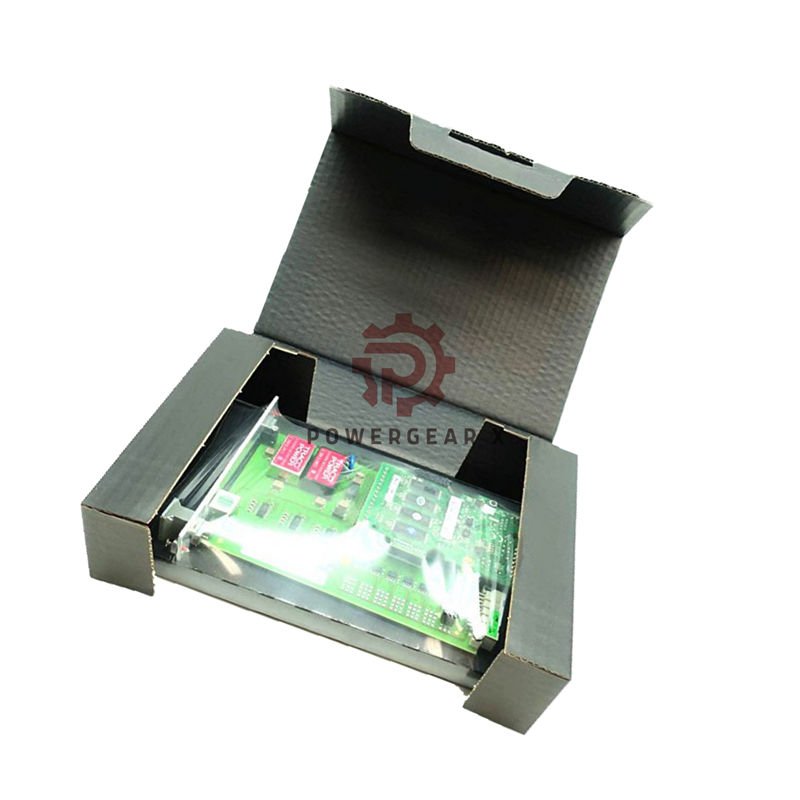

Emerson A6824-R ModBus Interface Module
The Emerson A6824-R ModBus Interface Module connects machinery protection systems to plant networks. This robust module reads data from all AMS 6500 monitoring modules and outputs parameters via ModBus TCP/IP or RTU protocols. It enables seamless integration between machinery health monitoring and control systems for turbines, compressors, and critical rotating equipment.
Technical Specifications
- Brand: Emerson | Model: A6824-R
- Communication: ModBus TCP/IP (10BaseT) & ModBus RTU (serial)
- Data Rate: 19.2 kbaud RTU, Ethernet RJ45 TCP/IP
- Default IP: 192.168.255.1, Subnet: 255.255.255.0
- Data Types: Speed, vibration, gap values, alarm states
- Operating Temperature: 0° to 65°C (32° to 149°F)
- Power Consumption: Maximum 5W
- Vibration Resistance: 0.15mm at 10-55Hz per IEC 68-2
- Humidity Range: 5-95% non-condensing
Installation & Setup
- Mount in AMS 6500 19-inch rack systems
- Connect via RJ45 Ethernet or serial communication ports
- Configure IP settings for network integration
- Install in environments meeting IP21 front plate protection
- Ensure proper ventilation with 0-65°C operating range
- Use with AMS 6500 modules for complete protection system
Package Includes
- One A6824-R ModBus Interface Module
- Standard mounting hardware and documentation
- 12-month product warranty coverage
- Express shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- What communication protocols does the A6824-R support?
The module supports both ModBus TCP/IP for Ethernet networks and ModBus RTU for serial communication.
- Can both communication methods operate together?
Yes, you can run TCP/IP and RTU protocols simultaneously for redundant communication paths.
- What type of data can the module transmit?
It outputs speed measurements, vibration data, gap values, alarm states, and channel status information.
- How many modules fit in a standard rack?
Each 19-inch rack chassis accommodates up to fourteen A6824-R interface modules.
- What is the default IP address configuration?
The module defaults to IP address 192.168.255.1 with subnet mask 255.255.255.0.
