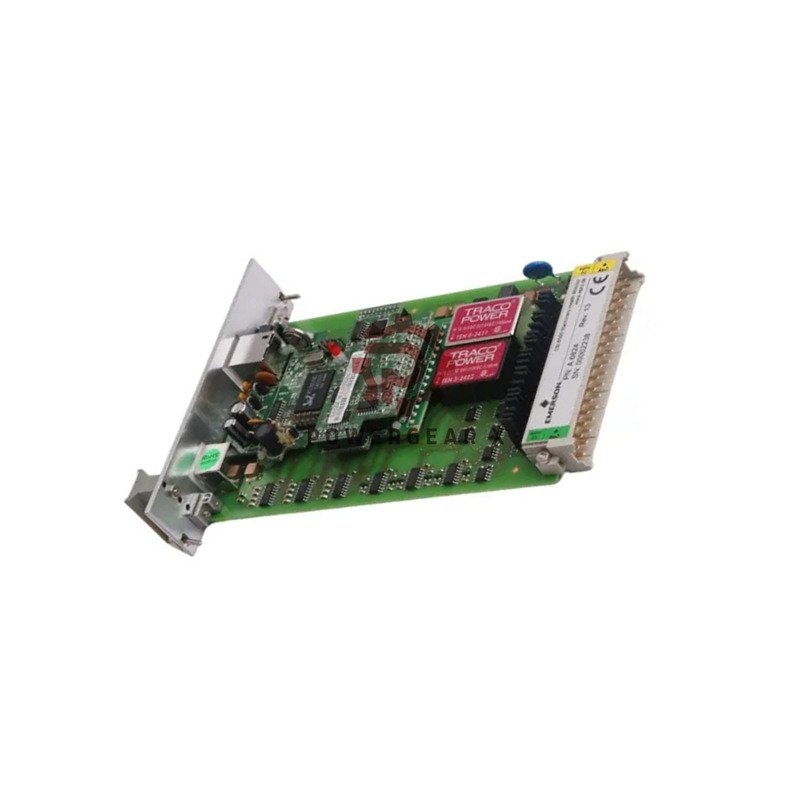

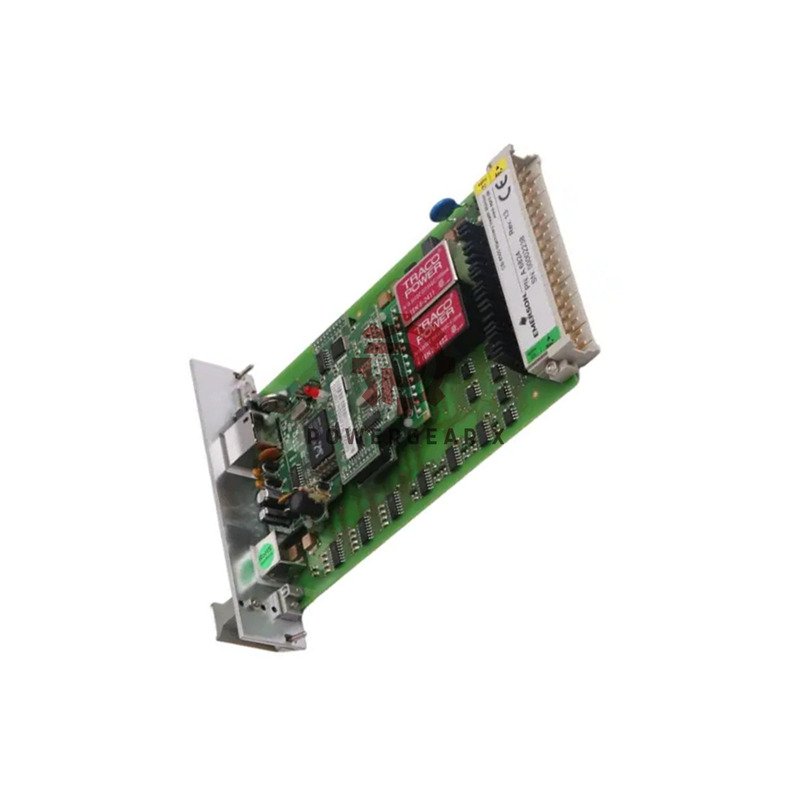

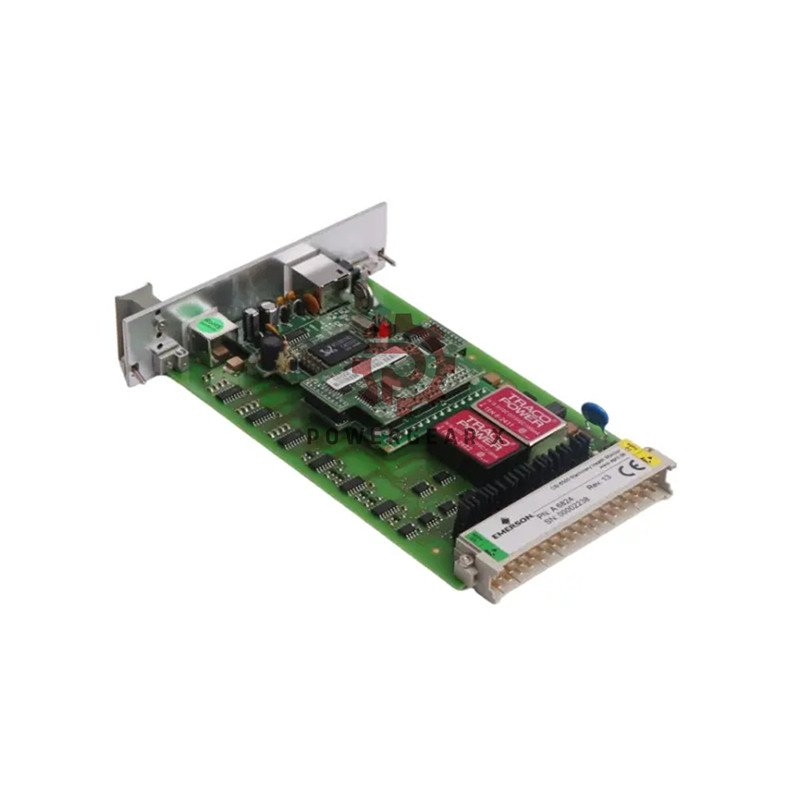

A6824 ModBus and Rack Interface Module – Reliable Data Communication
The A6824 ModBus and Rack Interface Module provides reliable data communication for machinery monitoring systems. This compact module reads parameters from AMS 6500 modules and outputs data via ModBus protocols. It ensures seamless integration between your machinery protection system and control environment. The hot-swappable design allows easy maintenance without system shutdown.
Technical Specifications
- Brand: AMS | Model: A6824 ModBus & Rack Interface
- Communication Protocols: ModBus TCP/IP & ModBus RTU
- ModBus RTU Settings: 19.2 kbaud, 8 data bits, even parity, 1 stop bit
- Ethernet Interface: RJ45 socket, 10BaseT
- Default IP Address: 192.168.255.1
- Subnet Mask: 255.255.255.0
- Data Types: Speed, vibration parameters, gap values, alarm states
- Power Consumption: Maximum 5W
- Operating Temperature: 0°C to 65°C (32°F to 149°F)
- Rack Capacity: 14 modules per 19-inch rack
Physical Dimensions & Weight
- PCB Format: EURO card per DIN 41494
- Board Dimensions: 100 x 160mm (3.937 x 6.300 inches)
- Width: 30mm (1.181 inches) – 6 TE
- Height: 128.4mm (5.055 inches) – 3 HE
- Length: 160mm (6.300 inches)
- Net Weight: Approximately 320g (0.705 lbs)
- Shipping Weight: Approximately 450g (0.992 lbs)
- Packing Volume: Approximately 2.5dm³ (0.08 ft³)
- Space Requirements: 1 slot only
Environmental Ratings
- Module Protection: IP00 per DIN 40050
- Front Plate Protection: IP21 per DIN 40050
- Climate Class: KTF per DIN 40040
- Storage Temperature: -30°C to 85°C (-22°F to 185°F)
- Relative Humidity: 5% to 95% non-condensing
- Vibration Resistance: IEC 68-2 part 6 compliant
- Shock Resistance: 98 m/s² peak, 16ms duration
- EMC Resistance: EN50081-1 / EN50082-2 standards
Integration & Compatibility
- Works with AMS 6500 machinery protection system
- Compatible with IMR 6000/10, IMR 6000/20, IMR 6000/30 racks
- Integrates with PlantWeb® and AMS software
- Connects to Ovation® and DeltaV™ control systems
- Supports redundant communication paths
- Provides machinery health parameters to control room
- Enables early machine malfunction detection
Ordering & Shipping Information
- Model A6824: Standard ModBus & Rack Interface Module
- Model A6824-R: Redundant mode for AMS 6500 systems
- Warranty: 12 months warranty
- Shipping Methods: FedEx, UPS, DHL worldwide
- Delivery Time: 2-3 weeks standard lead time
- Express Shipping: Available for urgent requirements
- Packaging: Includes all necessary documentation
Professional FAQ
- What systems is the A6824 module compatible with?
The A6824 works with AMS 6500 systems and IMR 6000 series racks. It integrates with PlantWeb architecture and major control systems like Ovation and DeltaV.
- Can I use both ModBus protocols at the same time?
Yes, the module supports simultaneous ModBus TCP/IP and ModBus RTU operation. This provides redundant communication paths for critical applications.
- How many racks can one A6824 module serve?
One A6824 module can serve multiple 19-inch racks. This reduces hardware costs and simplifies system architecture.
- What is the difference between A6824 and A6824-R models?
The A6824-R includes redundancy mode for higher availability systems. The standard A6824 works with IMR 6000 series without redundancy.
- How do I configure the module’s network settings?
Default IP is 192.168.255.1 with subnet 255.255.255.0. You can change these through password-protected configuration tools.
