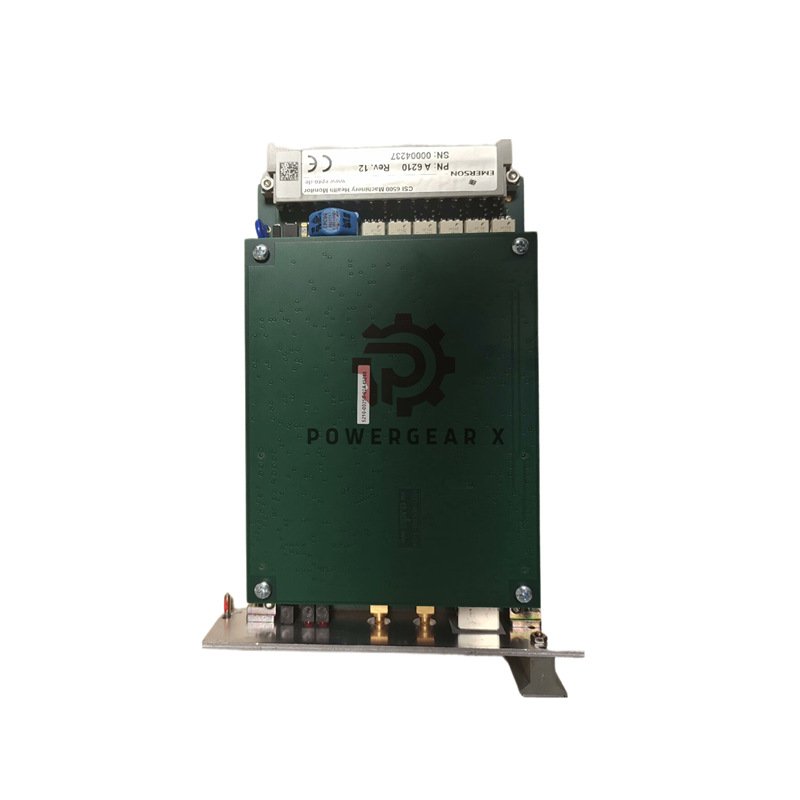

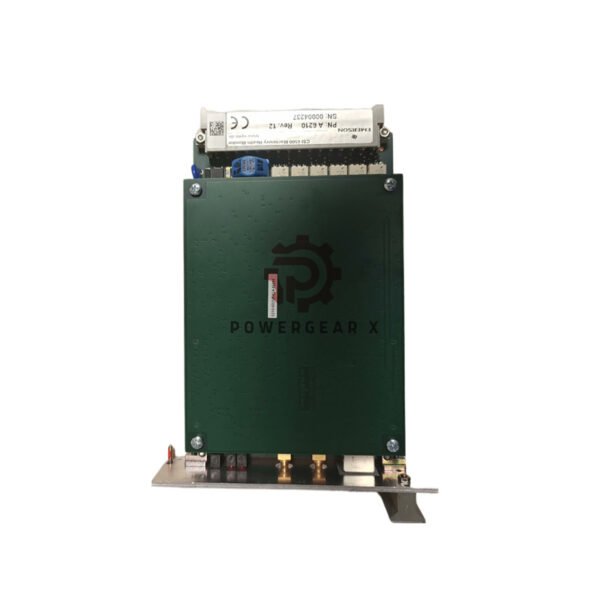

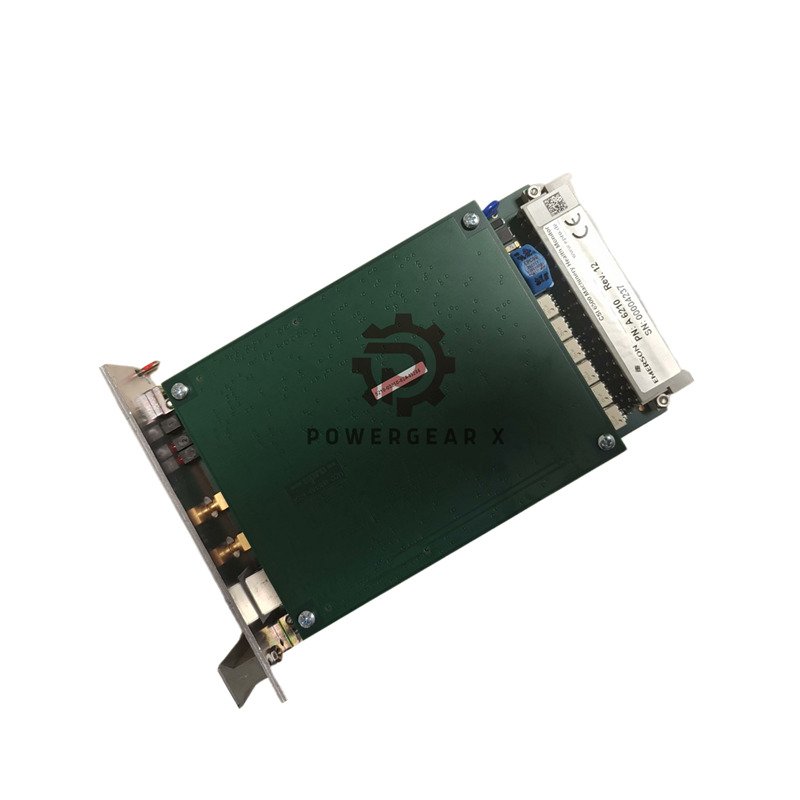

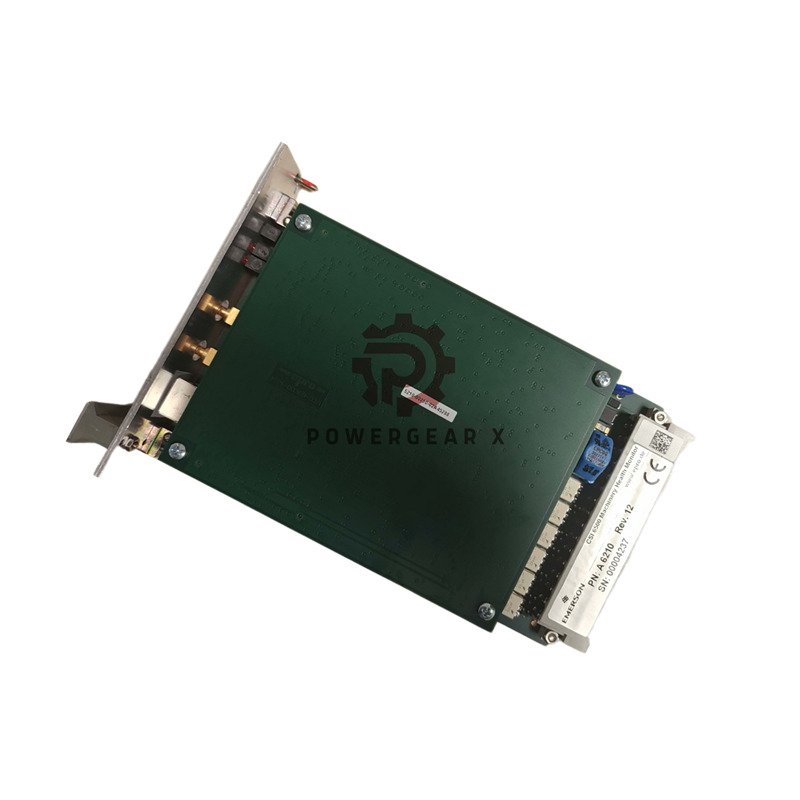

A6210 Machinery Health Monitor
The A6210 monitor by Emerson provides critical machinery protection for industrial equipment. It operates in three distinct monitoring modes for comprehensive machine health analysis. This compact module ensures reliable performance in demanding environments.
Technical Specifications
- Model: A6210
- Manufacturer: Emerson
- System: AMS 6500 Machinery Health Monitor
- Module Size: 3U single-slot design
- Channels: Two independent monitoring channels
- Input Type: Eddy current differential sensors
- Sensor Compatibility: 6422, 6423, 6424, 6425 series
- Input Voltage Range: 0 to -22 VDC
- Frequency Range: 0-8 Hz (10 Hz, -3 dB)
- Power Supply: -26.7 VDC nominal
- Current Output: 0/4-20 mA per channel
- Voltage Output: 0-10 VDC proportional output
- Operating Temperature: 0°C to 65°C
- Power Consumption: Maximum 6W at 24VDC
- Compliance: API 670 and API 618 standards
Operating Modes & Applications
- Thrust Position Mode: Monitors axial shaft movement
- Differential Expansion: Measures case vs rotor growth
- Rod Position Mode: Tracks piston rod drop in compressors
- Detects axial movements in under 40 milliseconds
- Supports tandem/complementary and cone/ramp modes
- Monitors rider band wear in reciprocating compressors
Alarm & Safety Features
- Alert and Danger setpoints per channel
- Adjustable time delays from 0-5 seconds
- Configurable alarm hysteresis settings
- OK status monitoring with green LED indicators
- Red LED indicators for alarm conditions
- Trip bypass and limit multiply functions
- Remote relay input capabilities
Integration & Compatibility
- Seamless integration with DeltaV systems
- Ovation process automation compatibility
- Preconfigured DeltaV Graphic Dynamos
- Ovation Graphic Macros for faster development
- RS-232 configuration interface
- Mini DIN configuration socket
- Works with A6740 relay card for expanded functions
Environmental Specifications
- Operating Temperature: 0°C to 65°C (32°F to 149°F)
- Storage Temperature: -30°C to 85°C (-22°F to 185°F)
- Relative Humidity: 5-95% non-condensing
- Vibration resistant per IEC 68-2 standards
- Shock resistant: 98 m/s² peak, 16 ms duration
- EMC compliance: EN50081-1 / EN50082-2
- Front Plate Rating: IP 21 protection
Warranty & Shipping
- 12-month comprehensive warranty
- Worldwide shipping via FedEx, UPS, DHL
- Fast 3-7 day delivery available
- Quality tested before shipment
- Complete documentation included
Technical FAQs
- What are the three operating modes?
The A6210 supports thrust position, differential expansion, and rod position monitoring modes.
- What sensors are compatible?
It works with Emerson 6422, 6423, 6424, and 6425 series eddy current sensors.
- Is the module hot-swappable?
Yes, the A6210 supports hot-swapping for maintenance without system shutdown.
- What process systems does it integrate with?
It seamlessly integrates with DeltaV and Ovation process automation systems.
- What safety standards does it meet?
The module complies with API 670 and API 618 industry standards for machinery protection.
Ordering Information
- Product ready for immediate shipment
- Complete sensor compatibility
- Technical support available
- Competitive pricing
- Bulk order discounts
Contact our technical team: sales@powergearx.com or +86 18030005825 via WhatsApp.
